Admiral L Kabelguide Bas 4.5m H 6m Svart

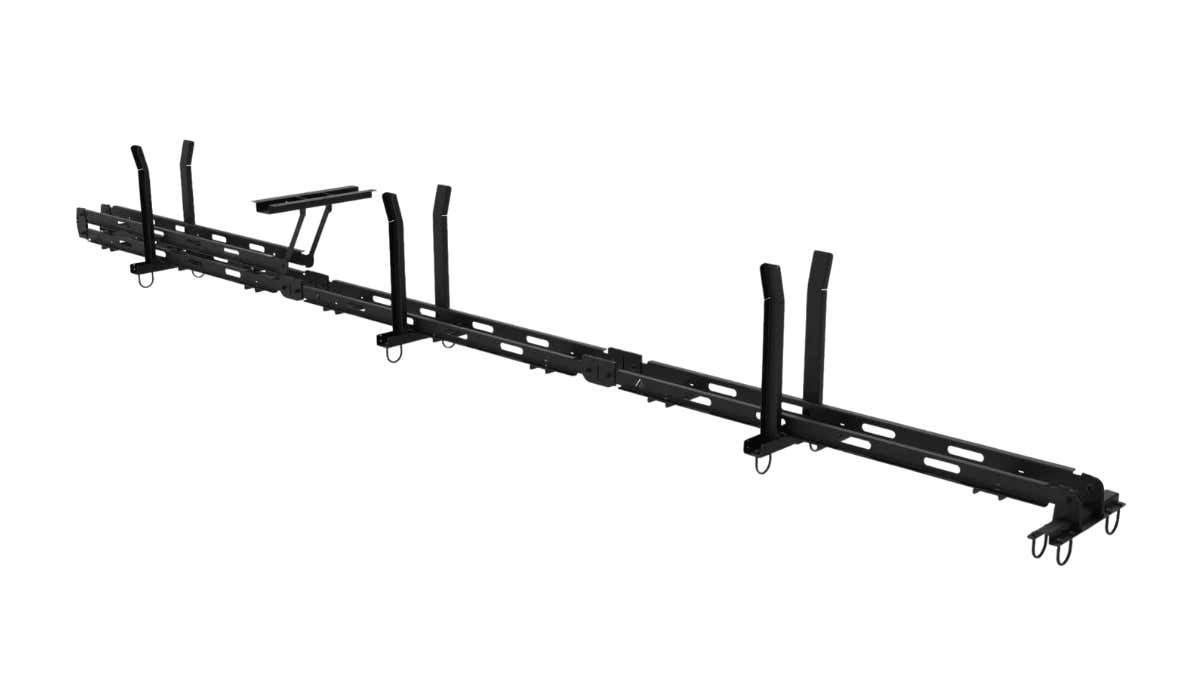

A flexible and robust solution for routing cables

The L cable guide is perfect for high-demand setups that need to manage a large number of cables. With its wide 108 mm gutter, it can hold multiple cables at the same time, reducing the need for extra guides. For larger installations, the XL version is available, offering a 220 mm wide gutter for even greater capacity.

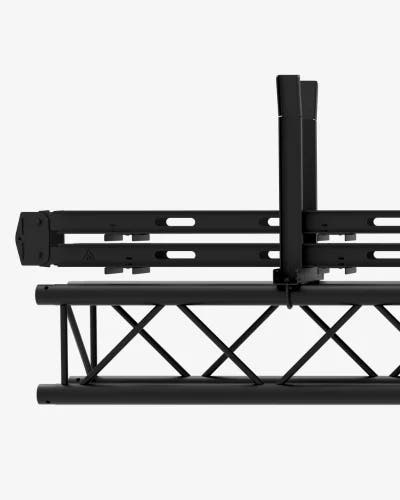

To keep power and signal cables separate, the L guide can be equipped with a divider insert. The guide is easy to mount on 30 truss using U-bolts (included) and can also be installed on 40 truss with an adapter (sold separately).

The L cable guide is built to be flexible, lightweight and strong. The sections are made from aluminium, keeping the weight low, while the hinges are made of steel for added durability.

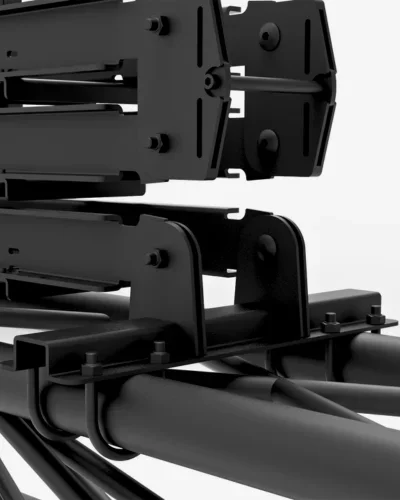

The centre hinge allows for up to 40 degrees of movement, while the corner hinges can rotate up to 170 degrees, making the guide flexible and versatile. The corner hinges also feature a reinforcement rod, which acts as a guide to ensure the cables are stretched to the correct length in the guide. The top hinge features length strips that help reduce the lateral movement during operation.
