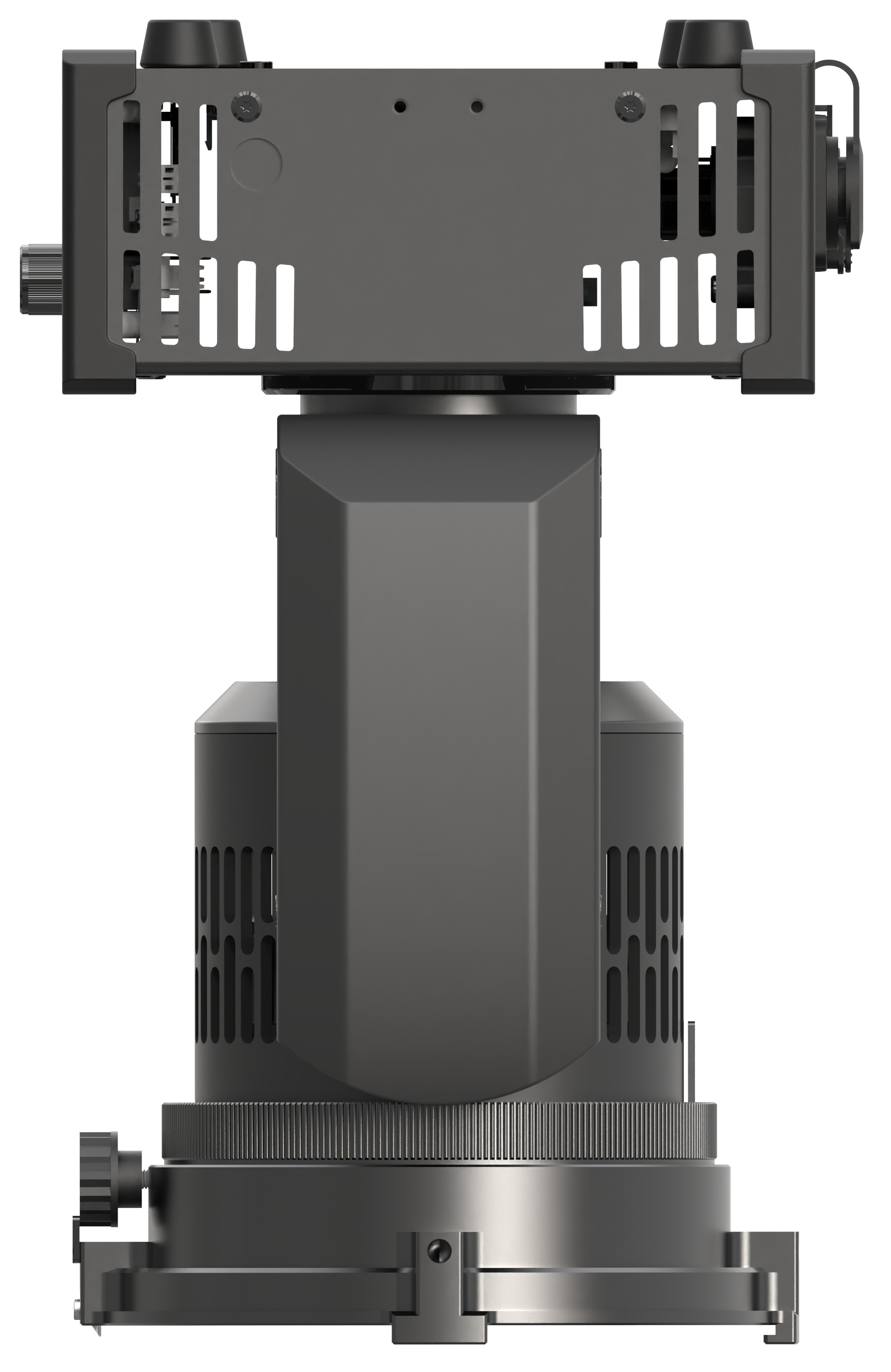

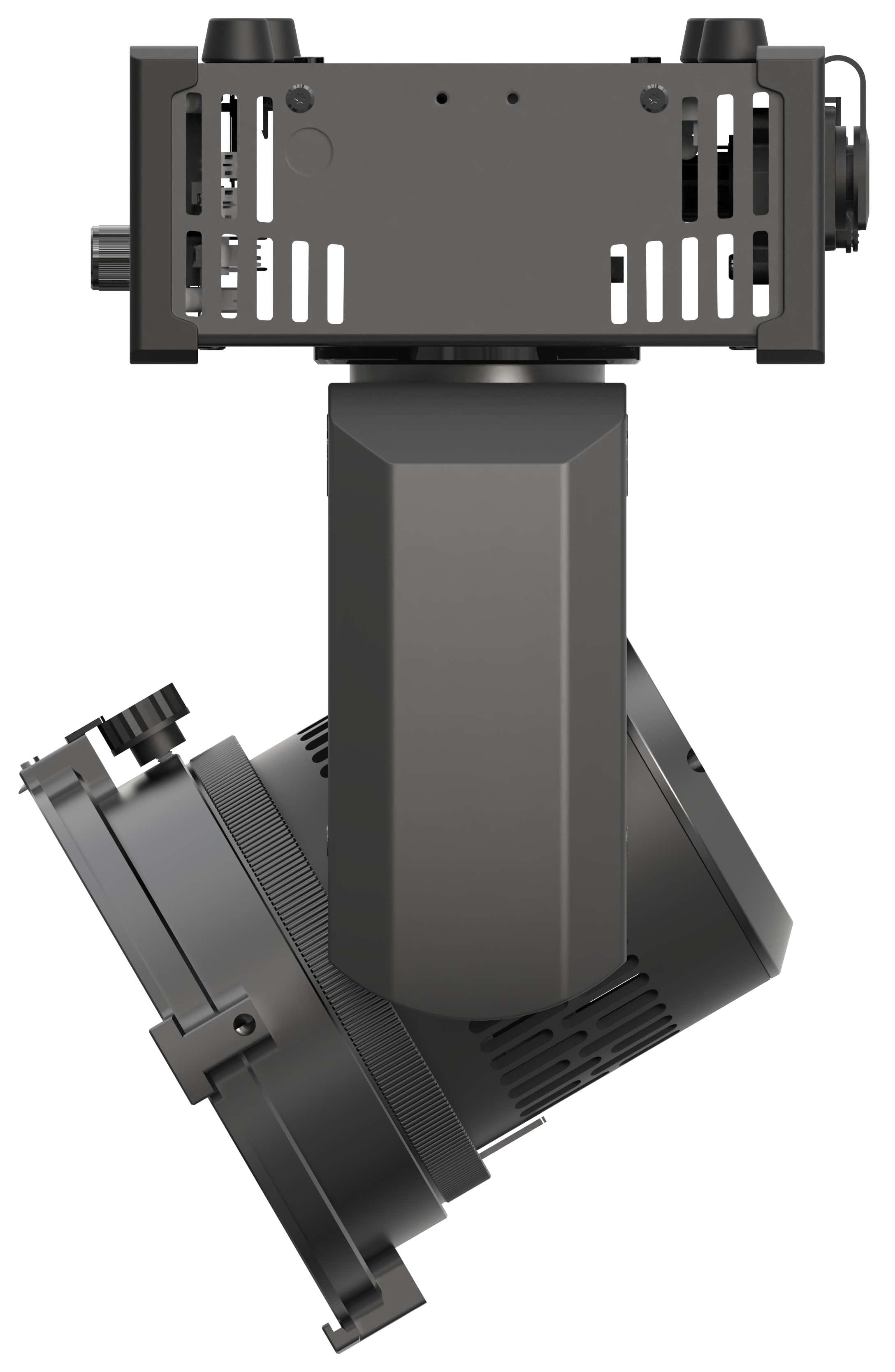

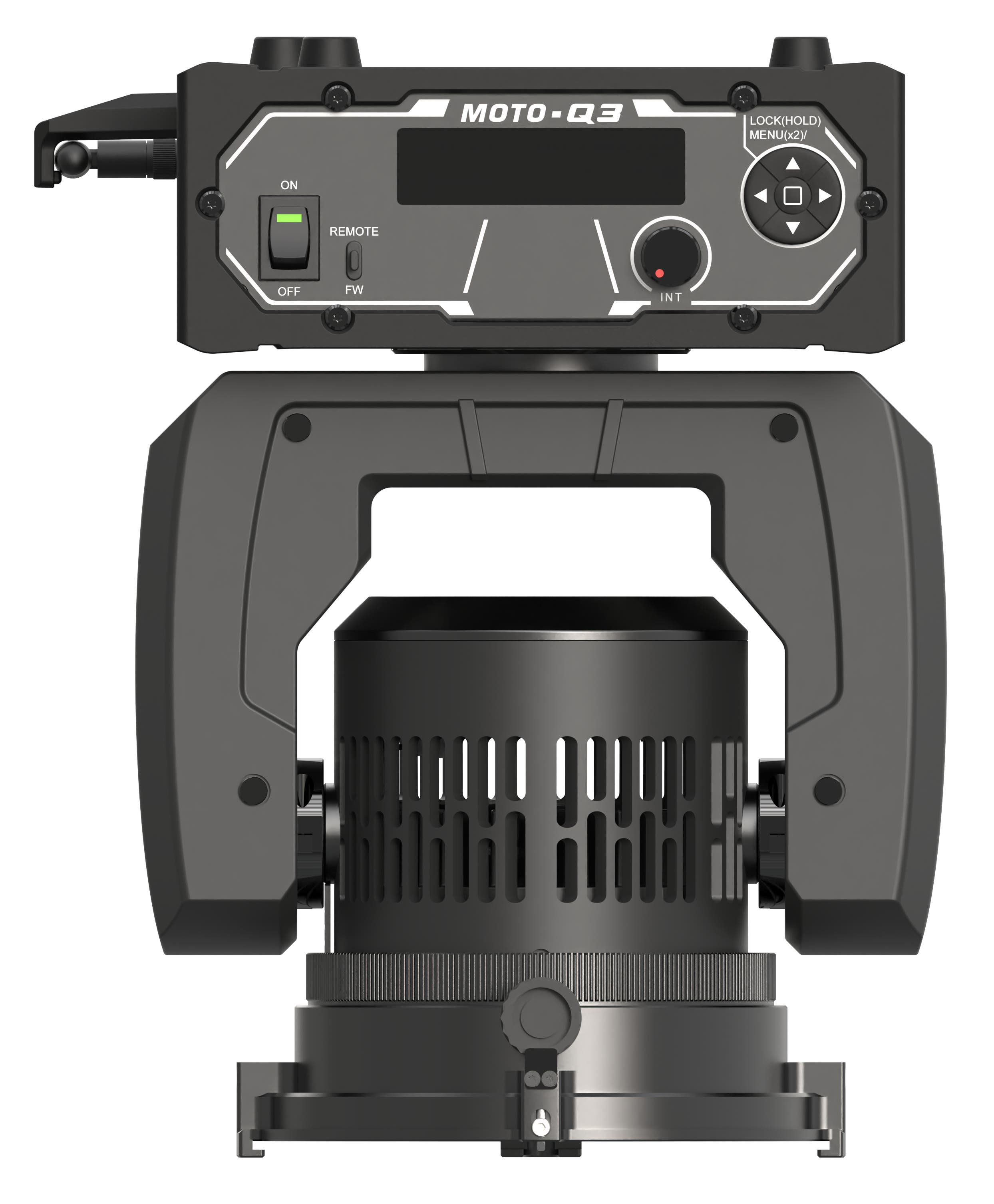

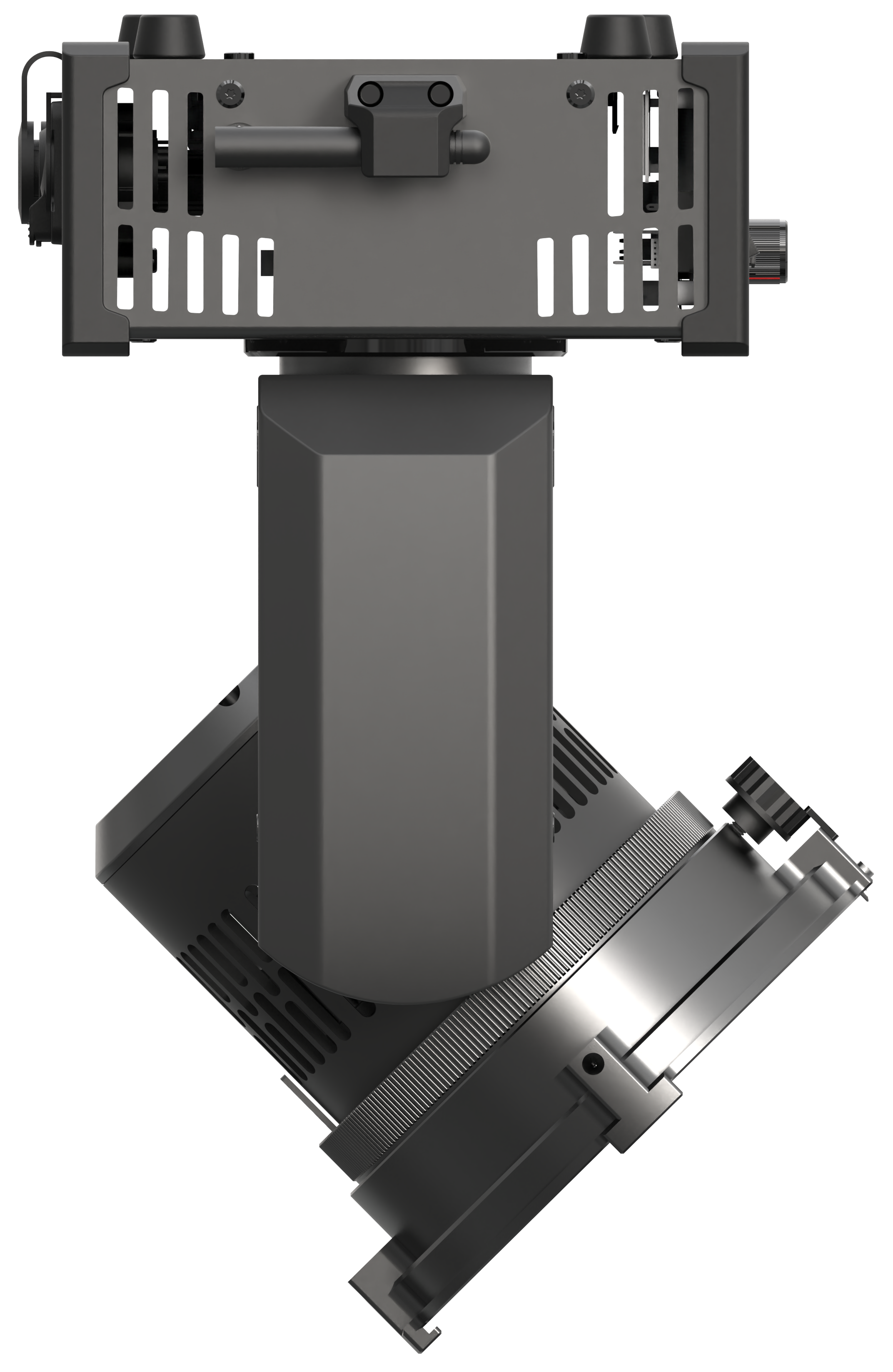

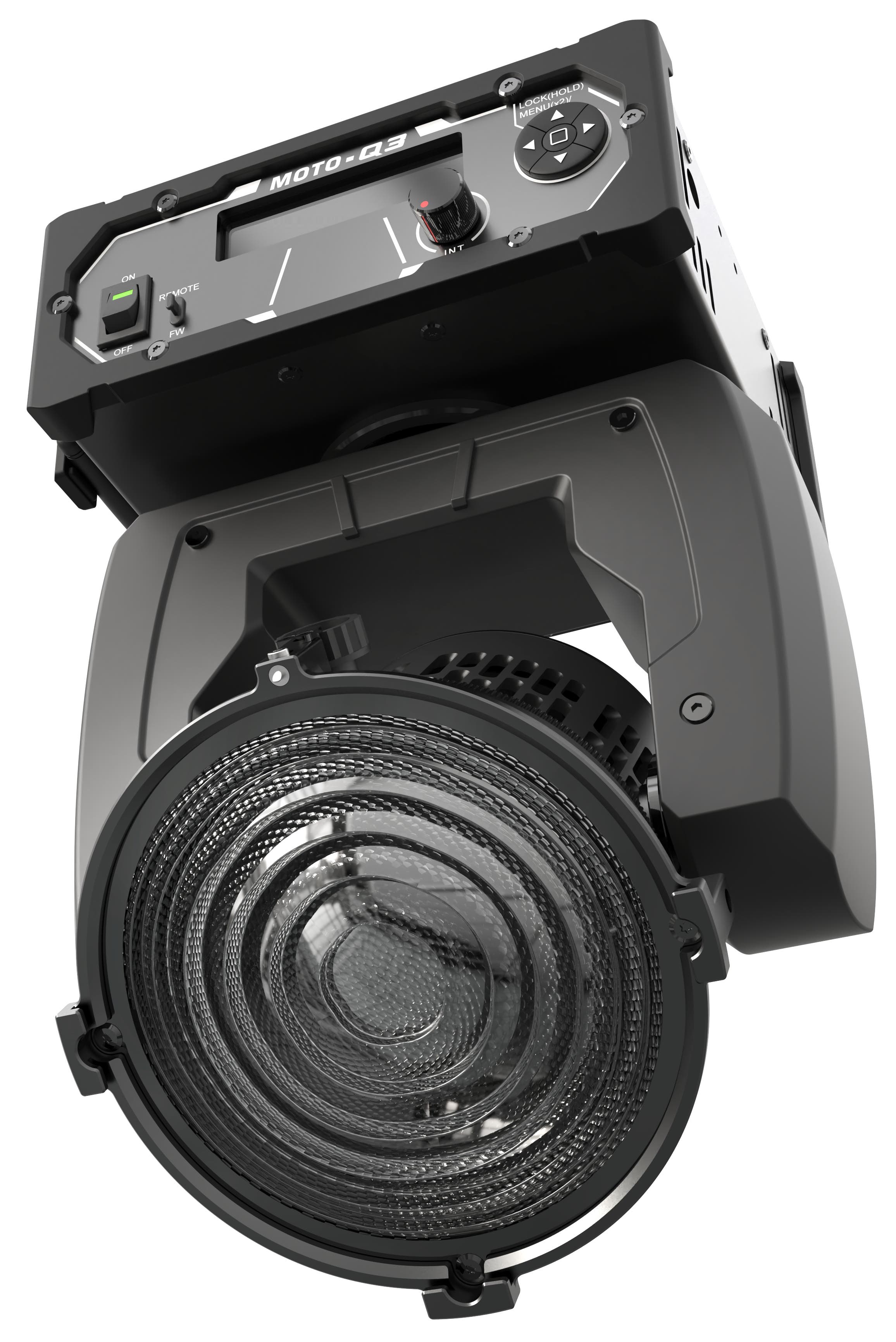

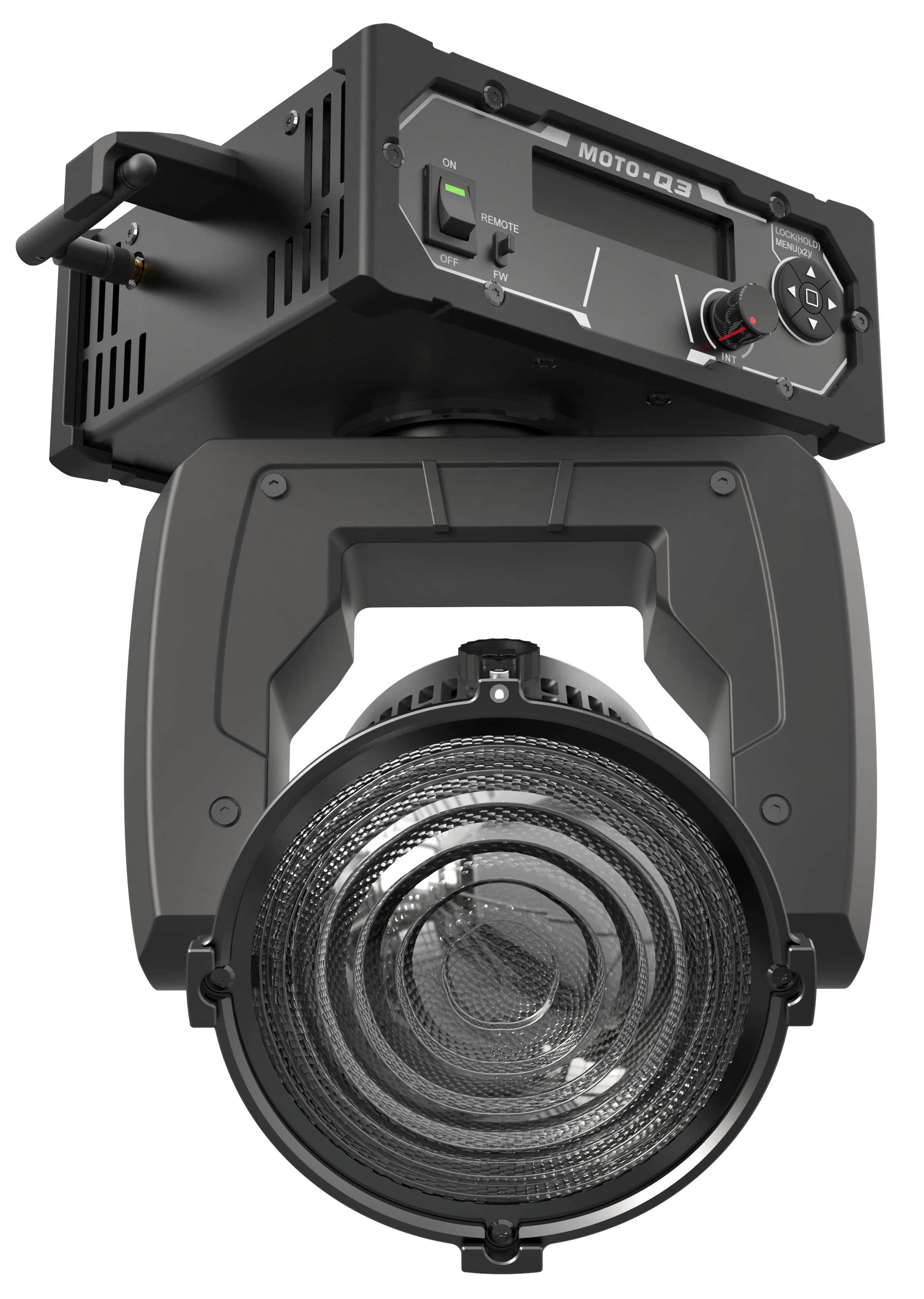

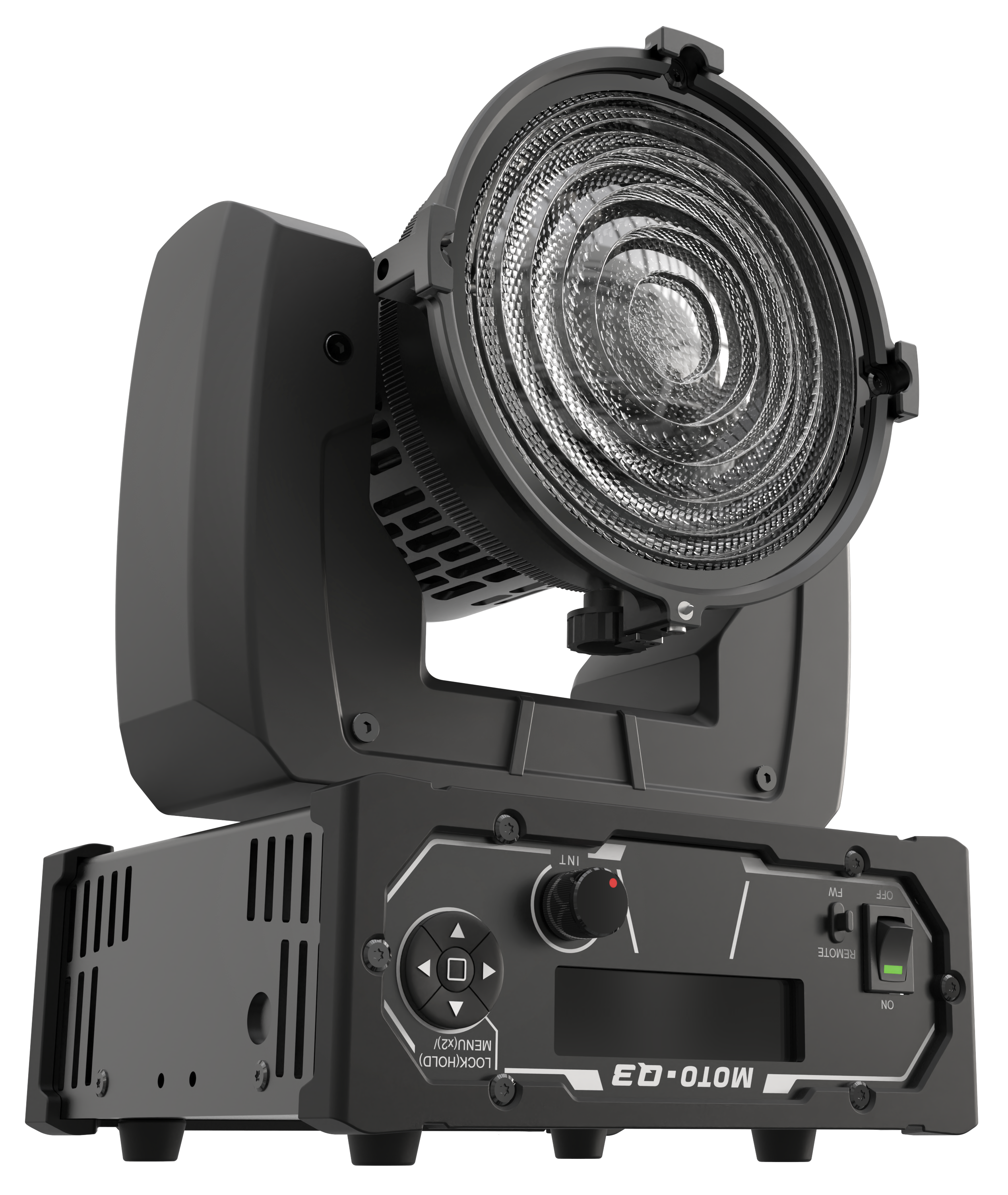

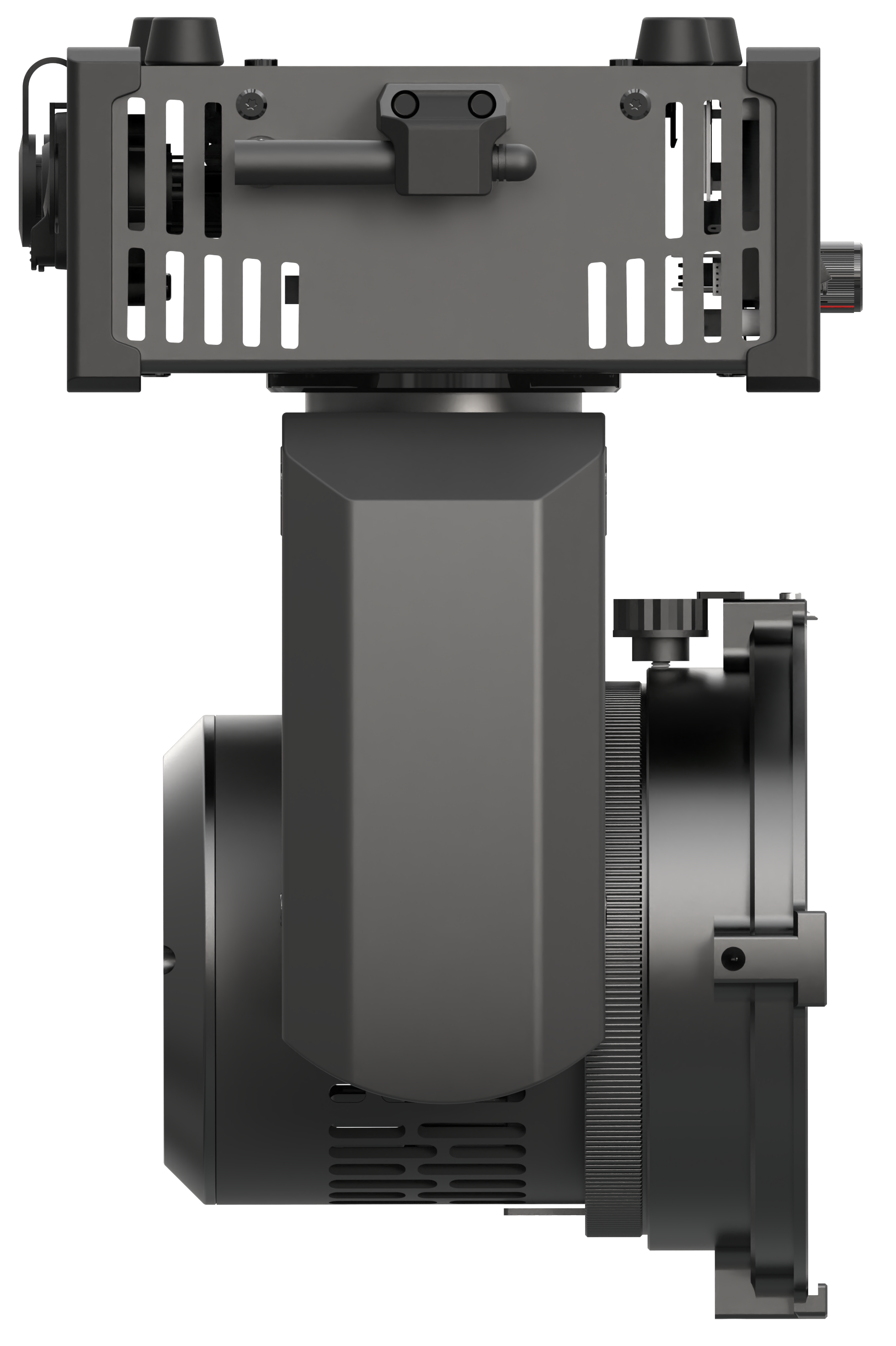

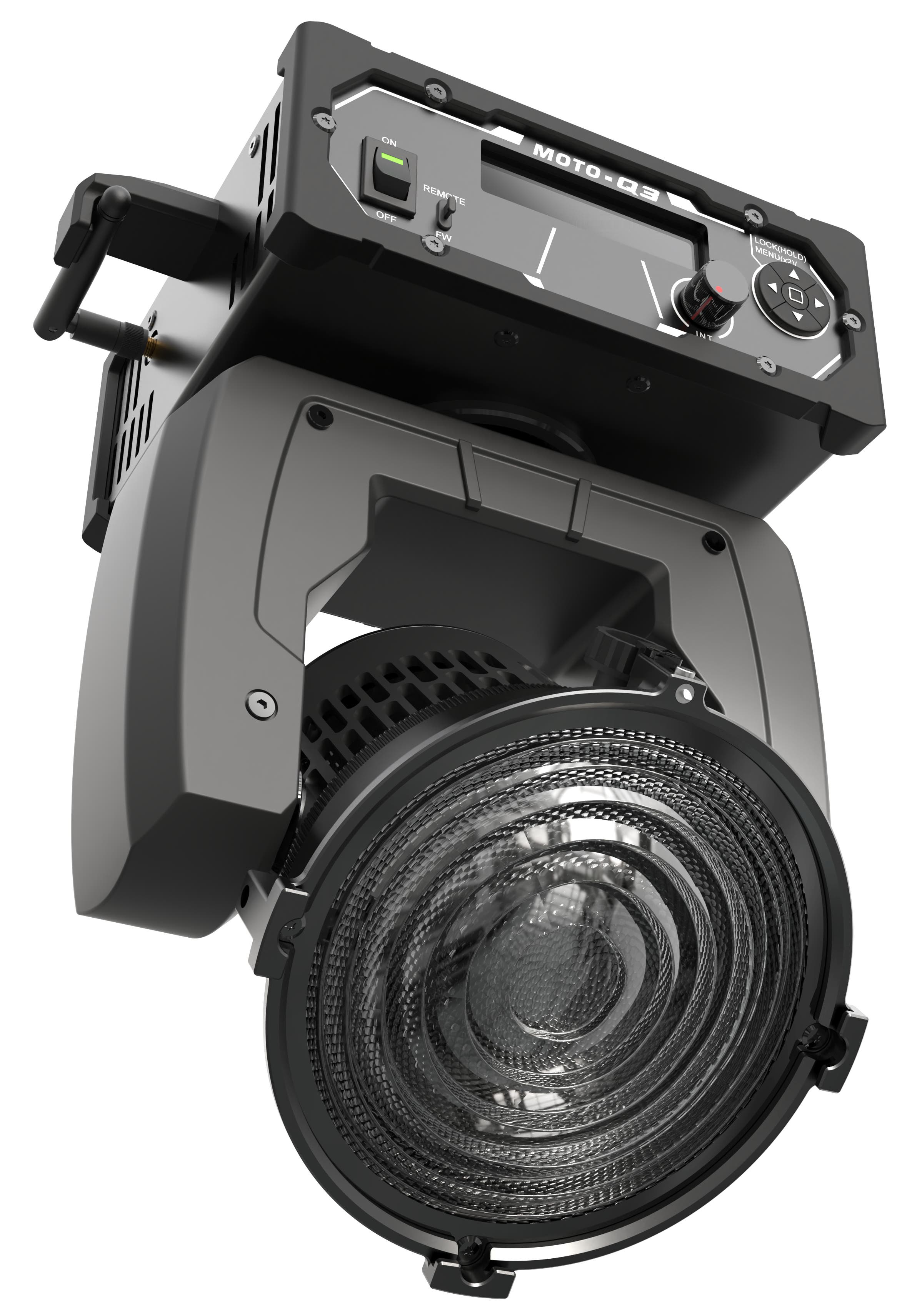

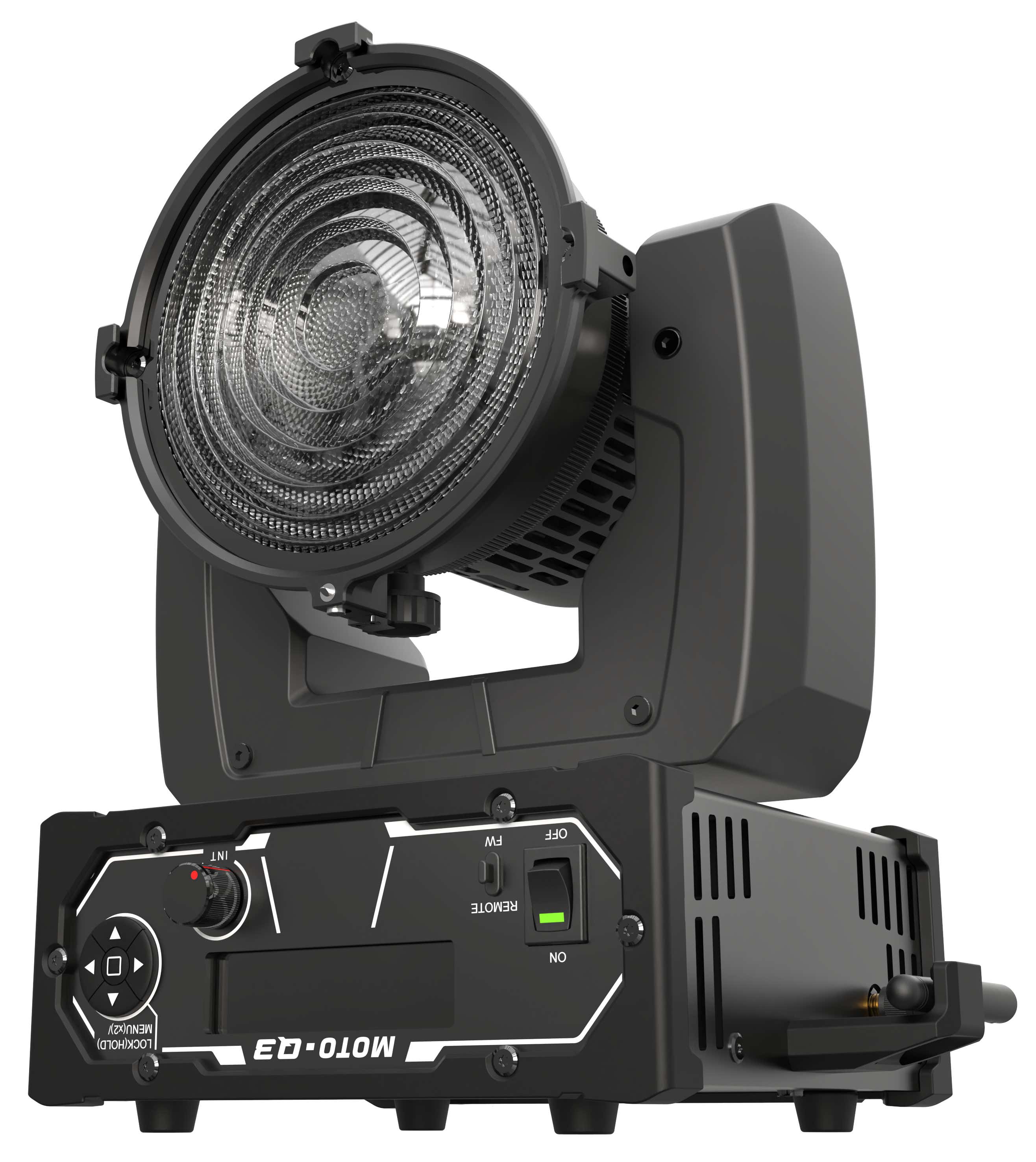

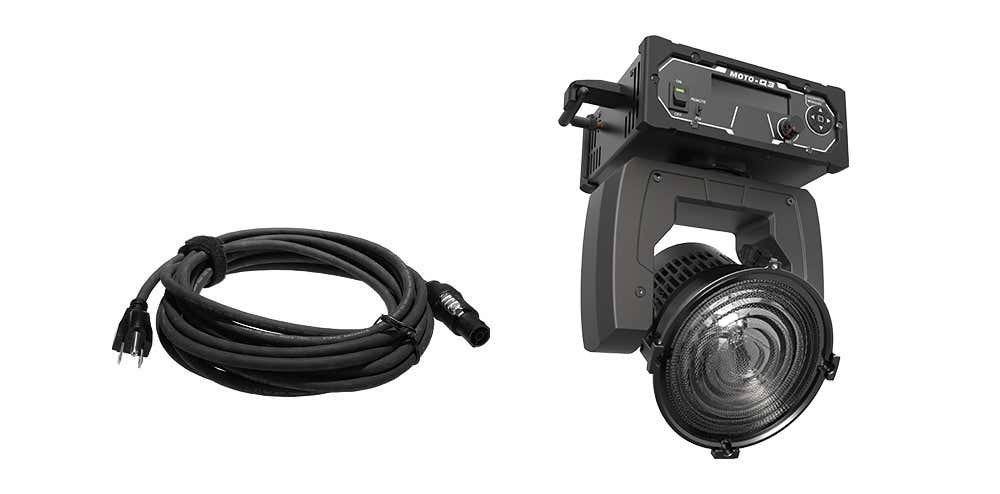

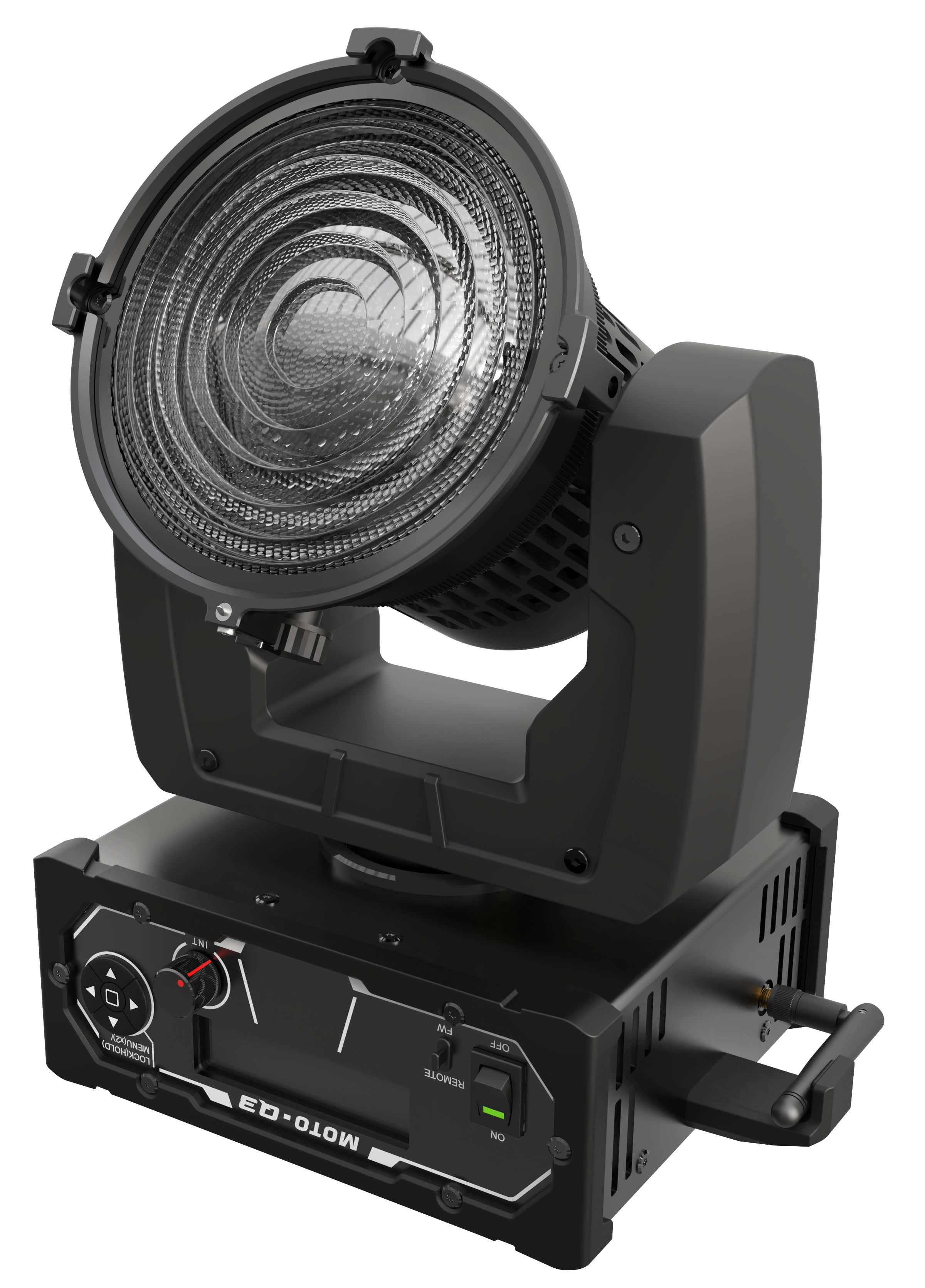

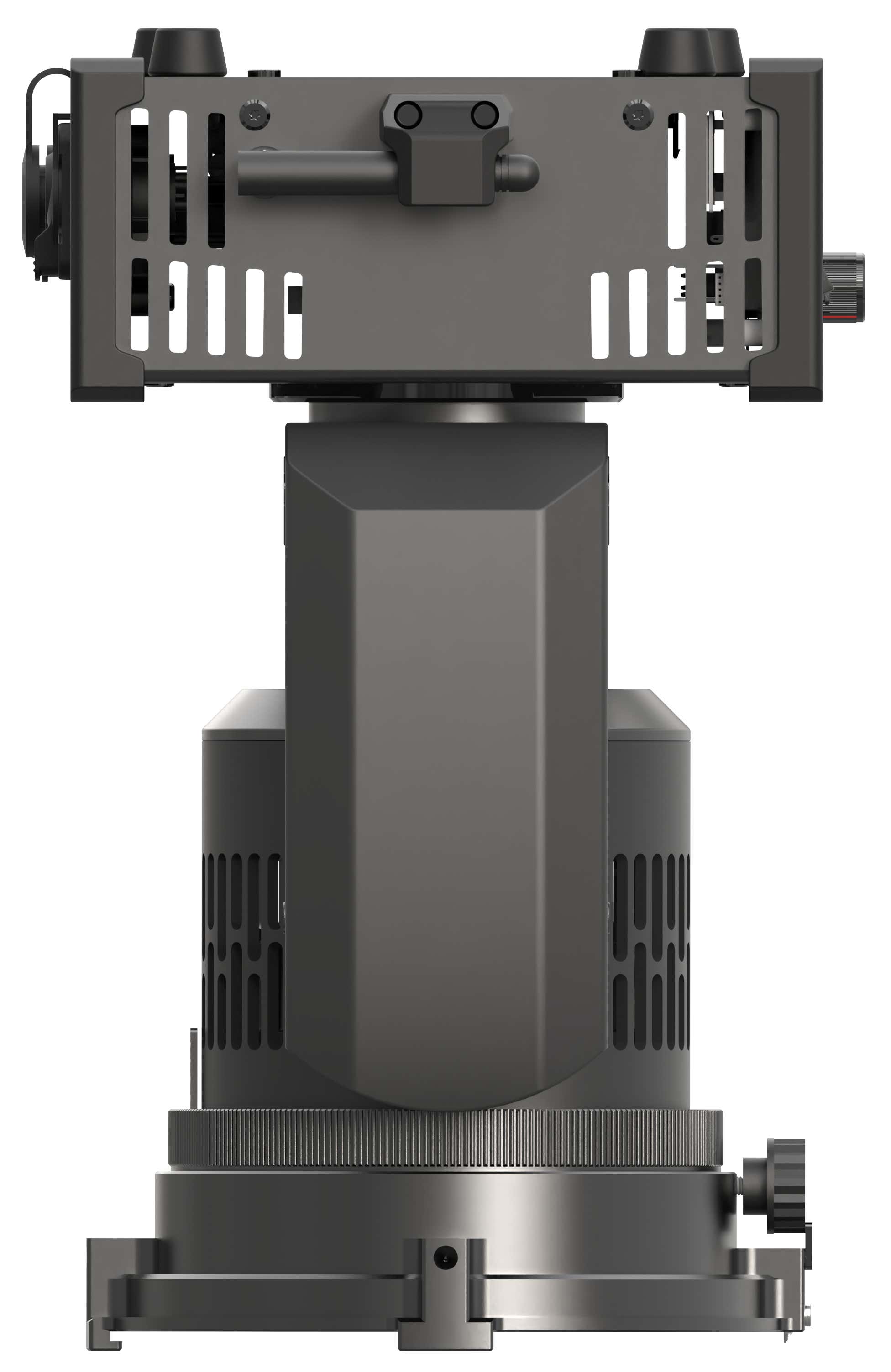

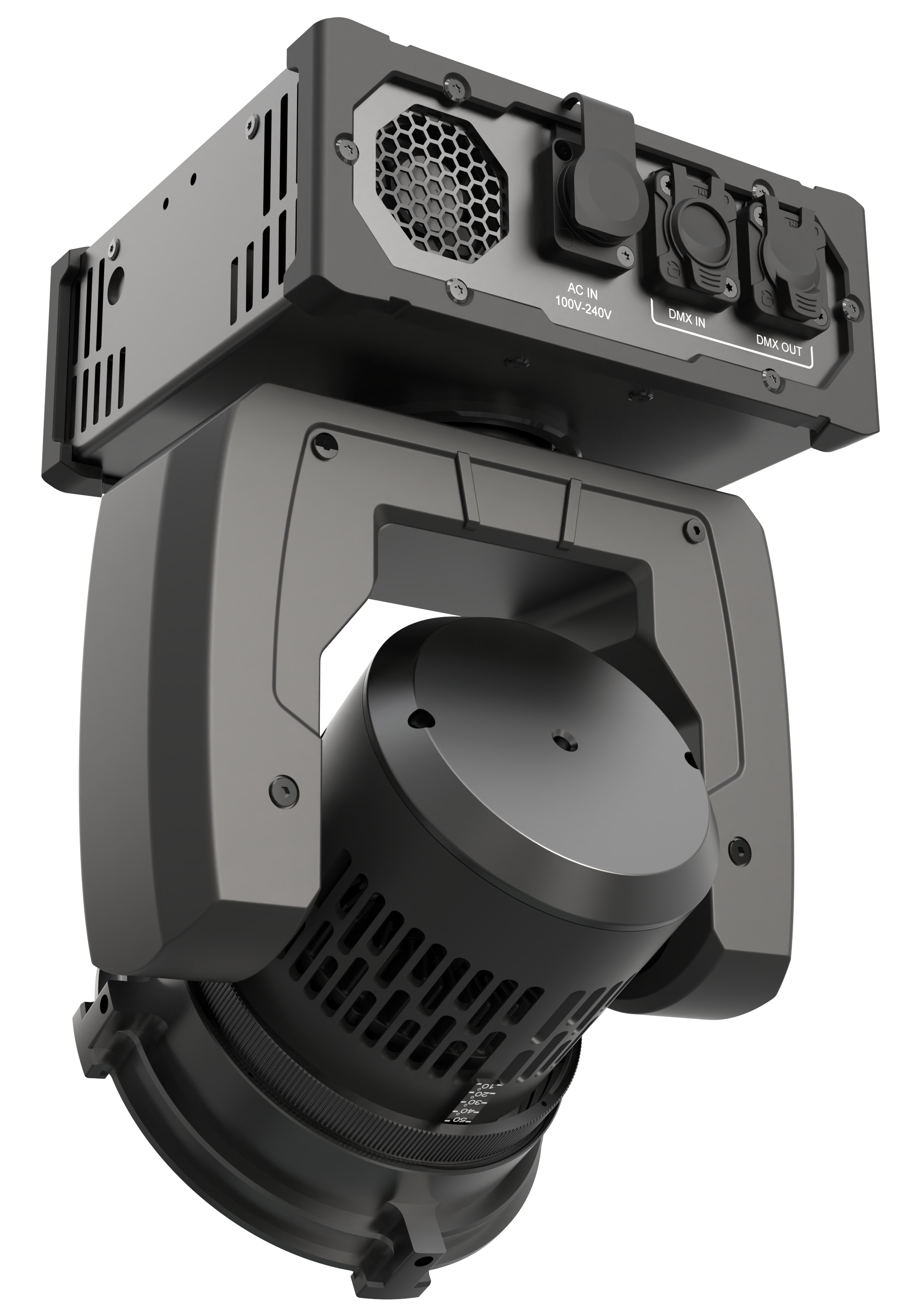

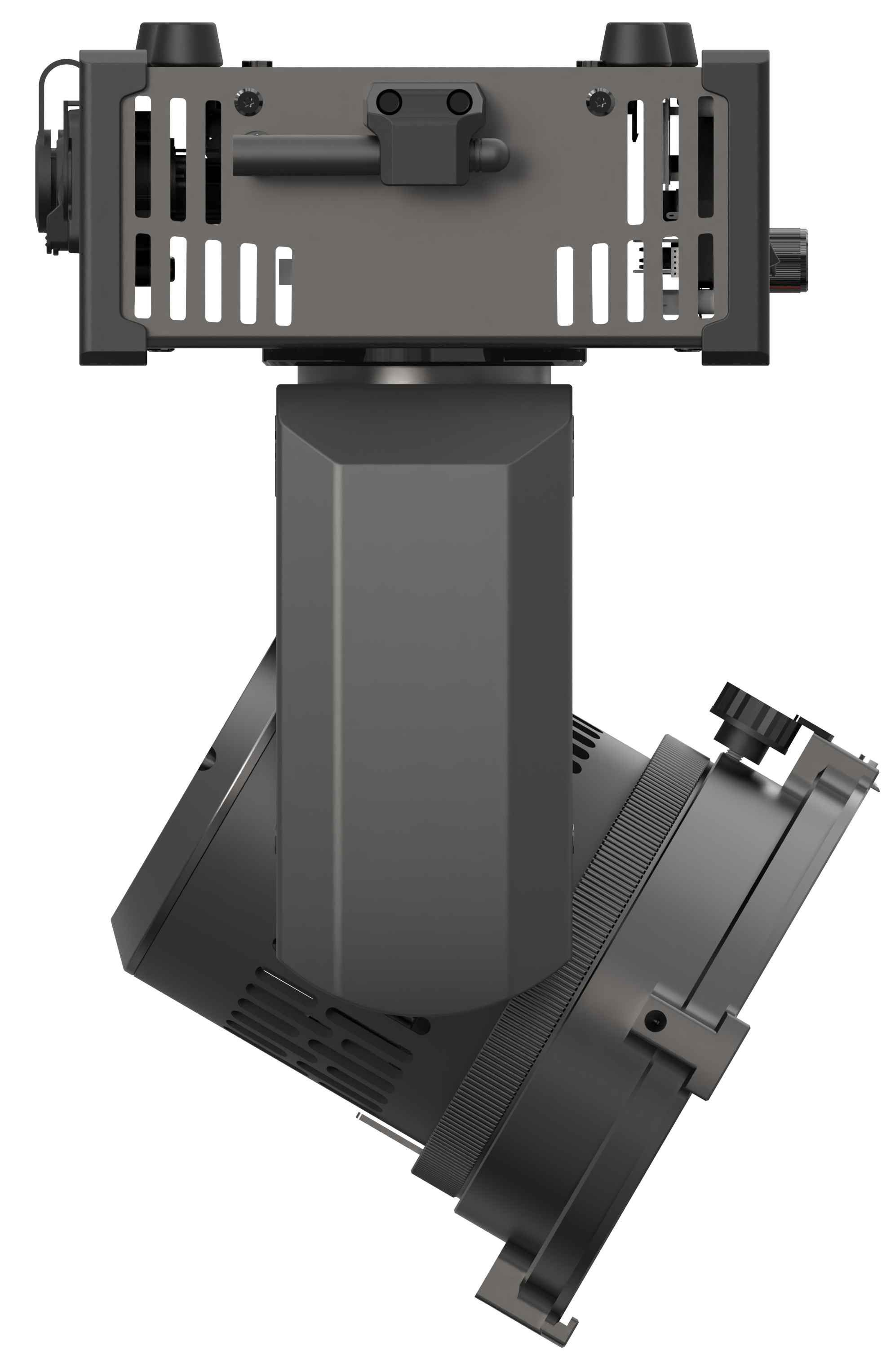

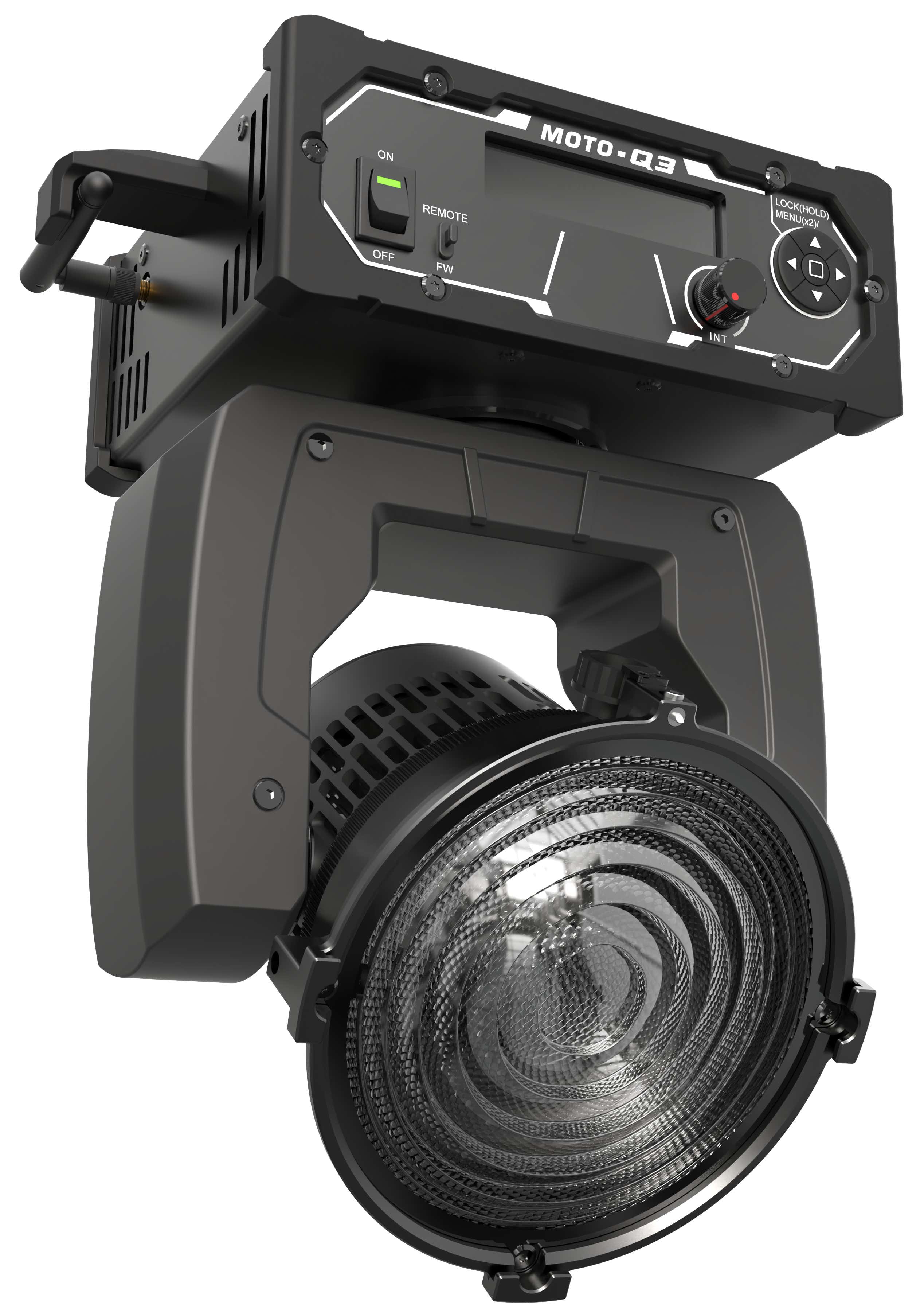

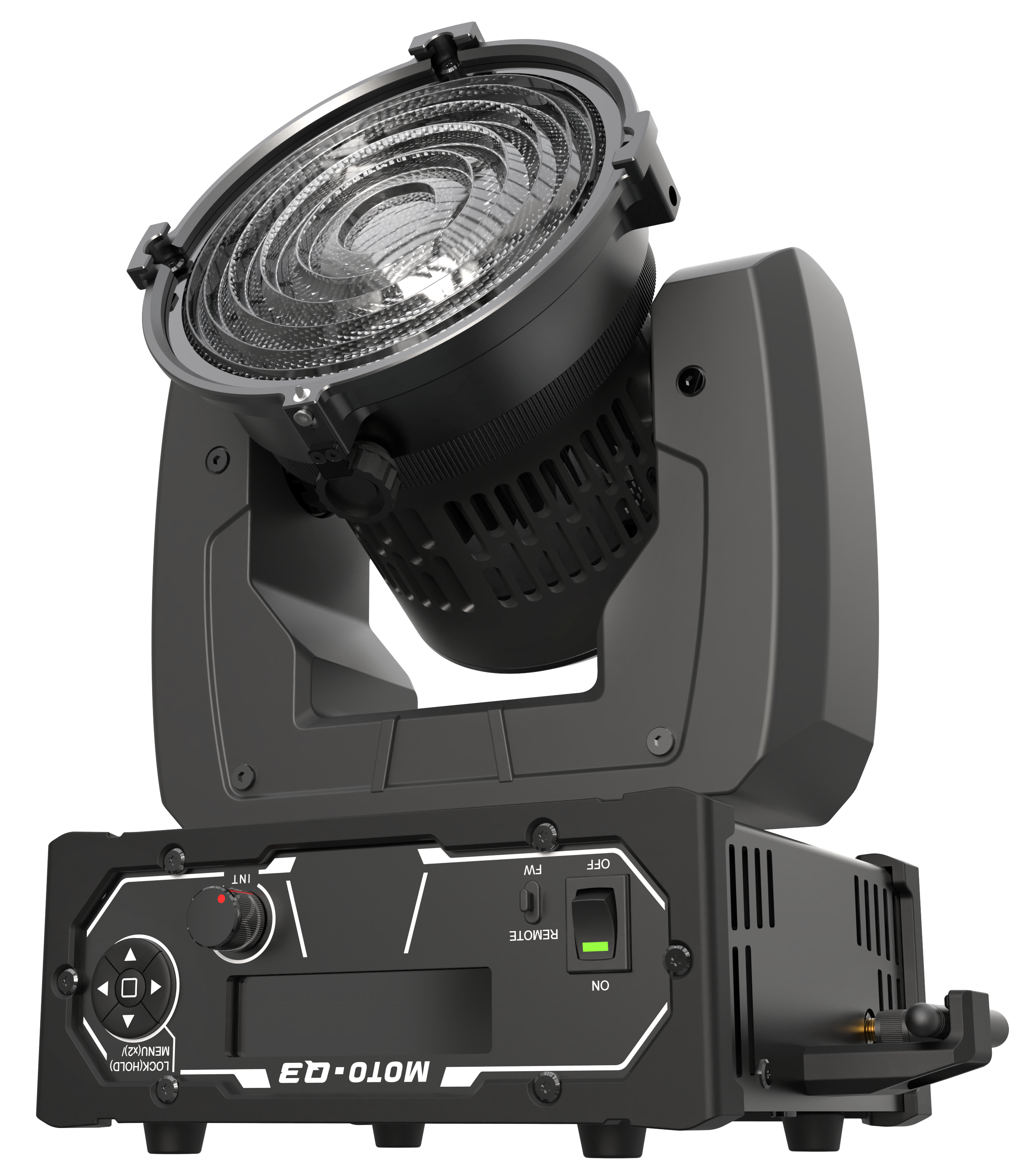

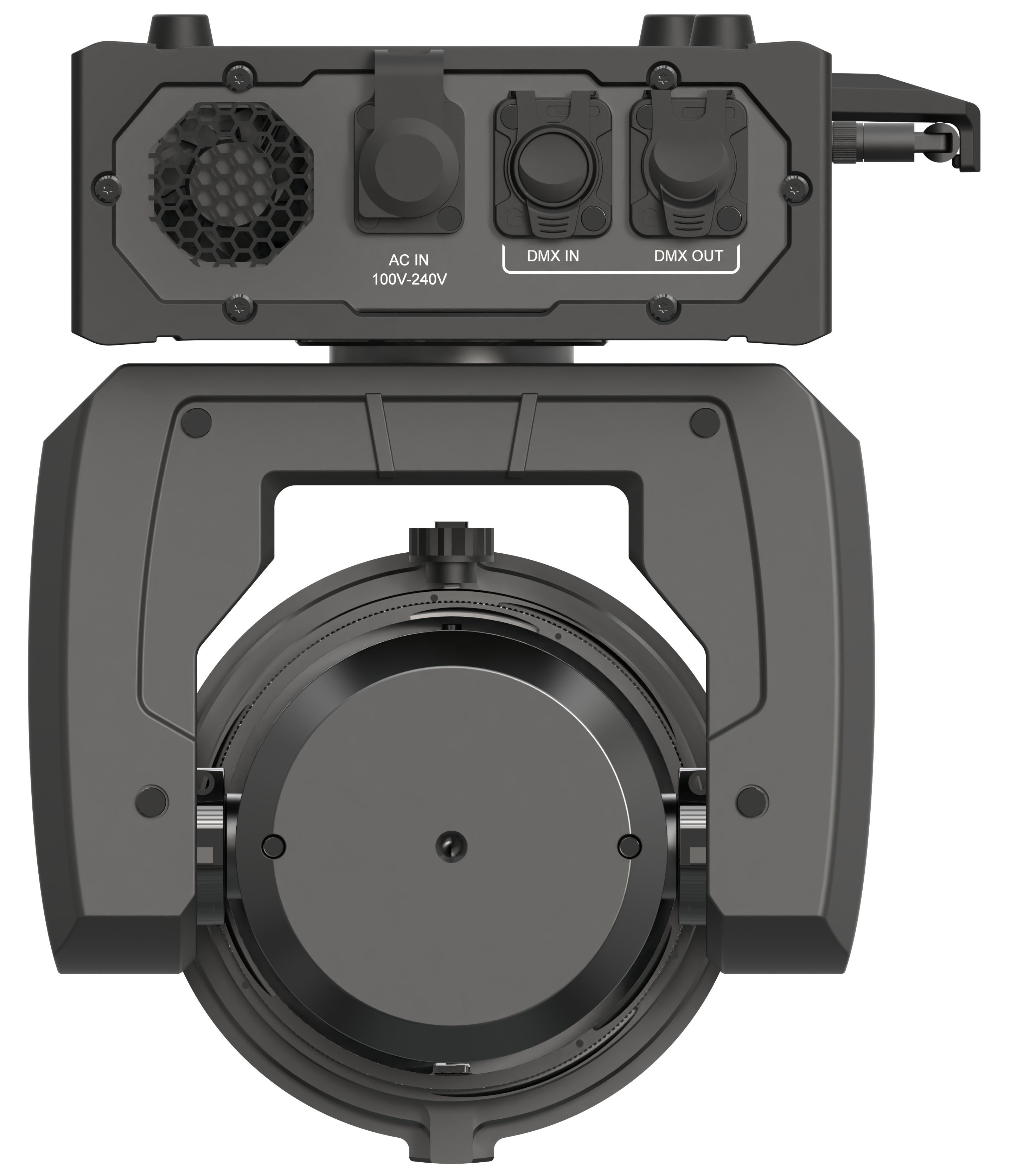

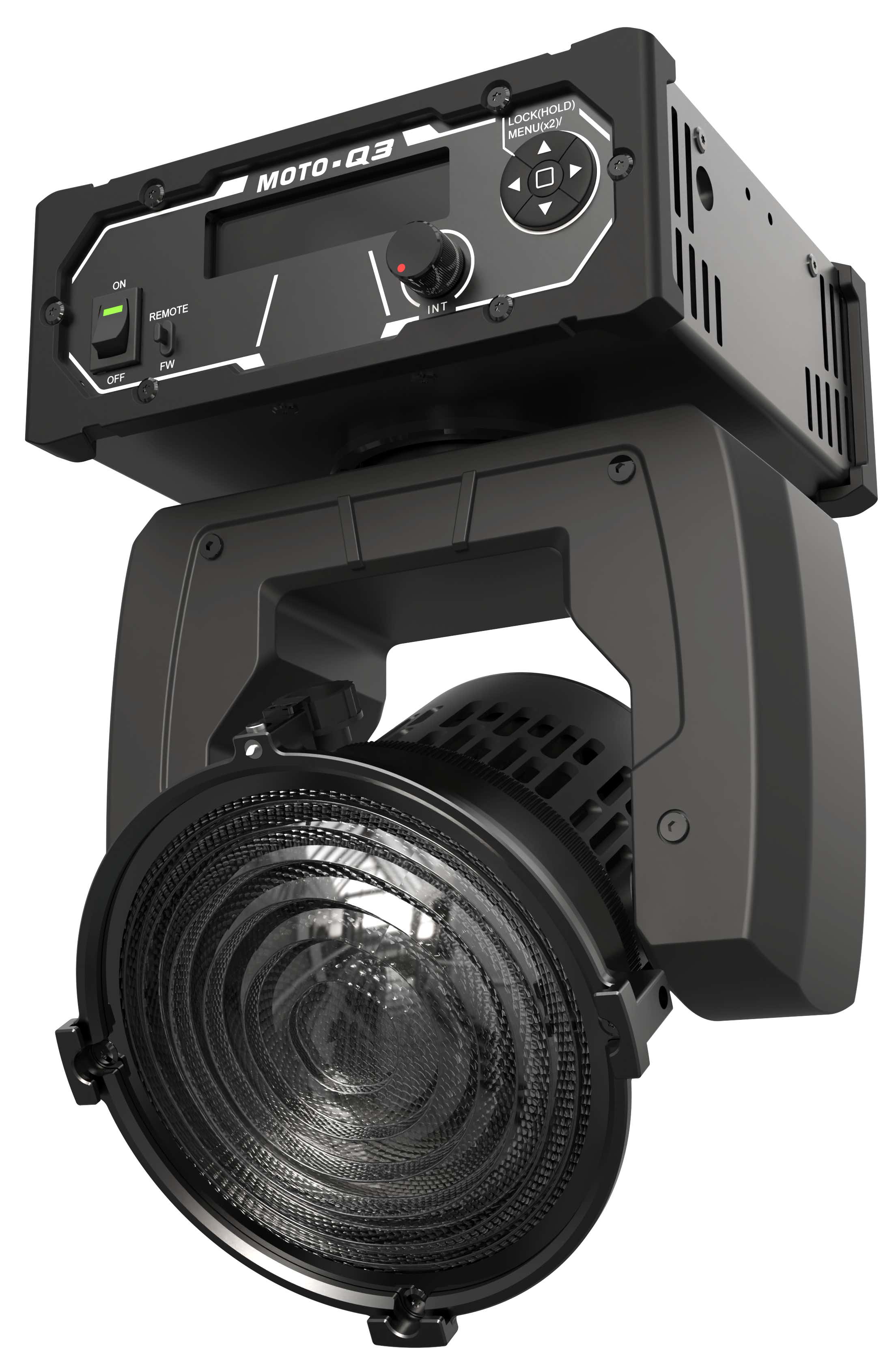

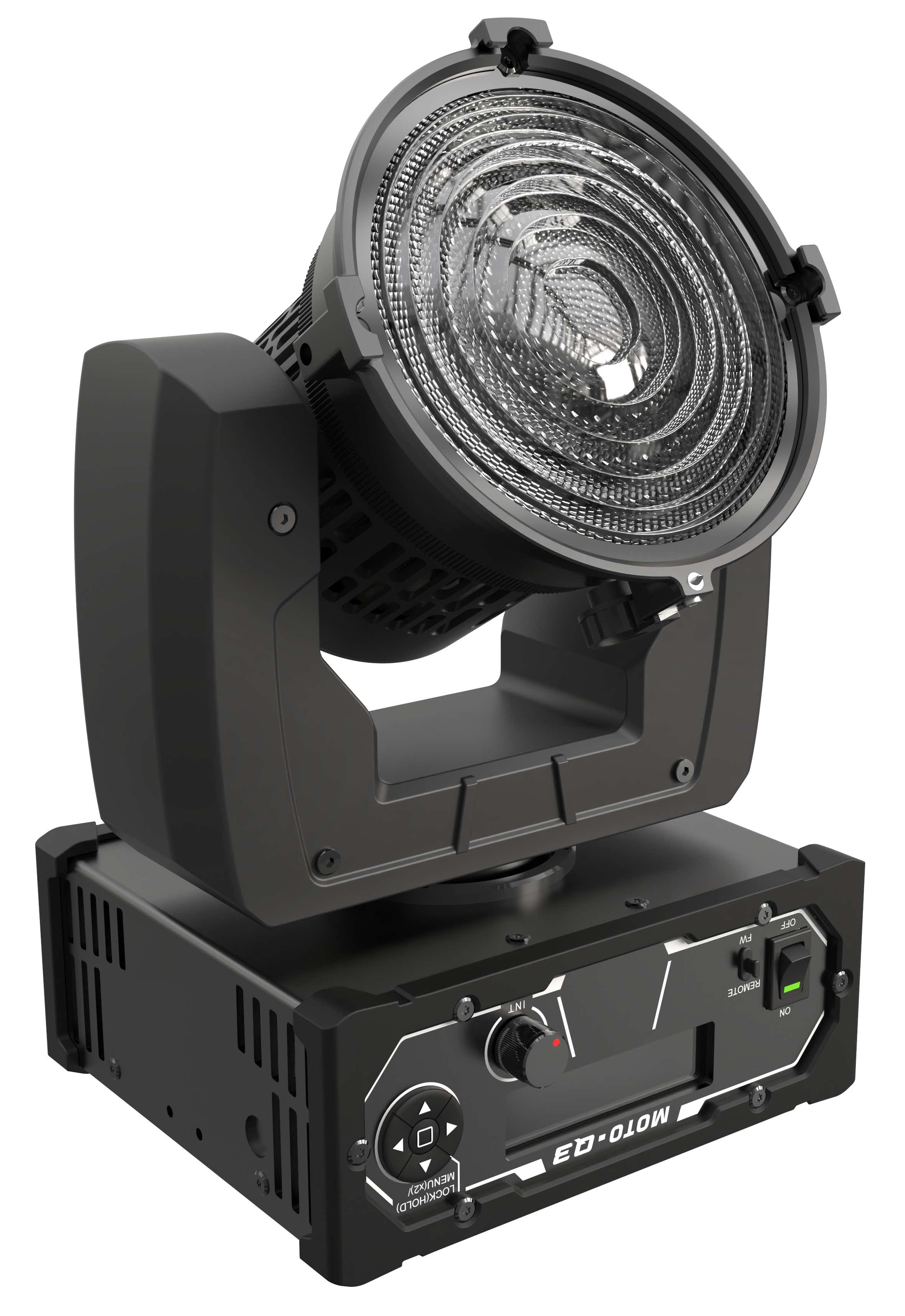

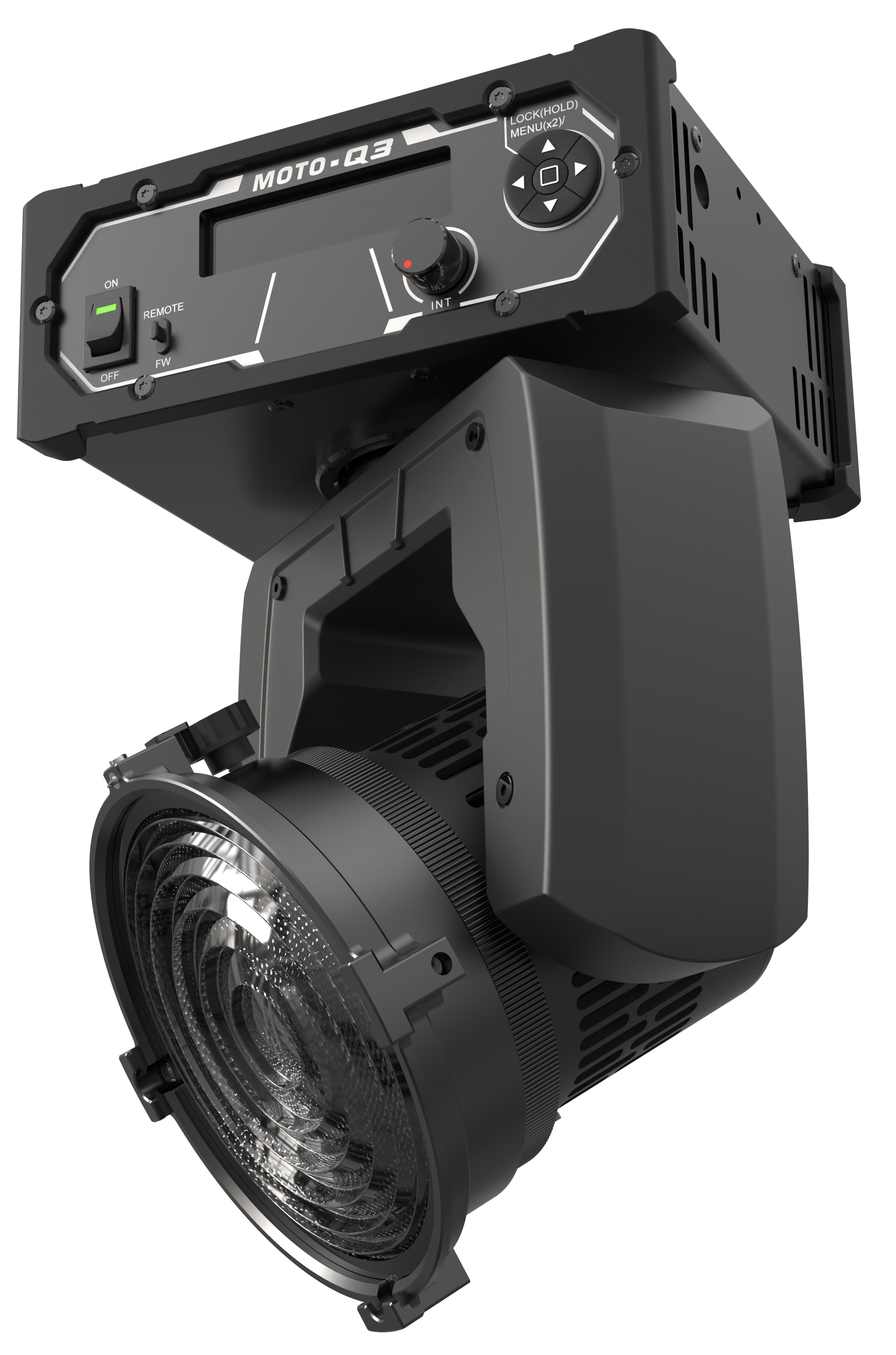

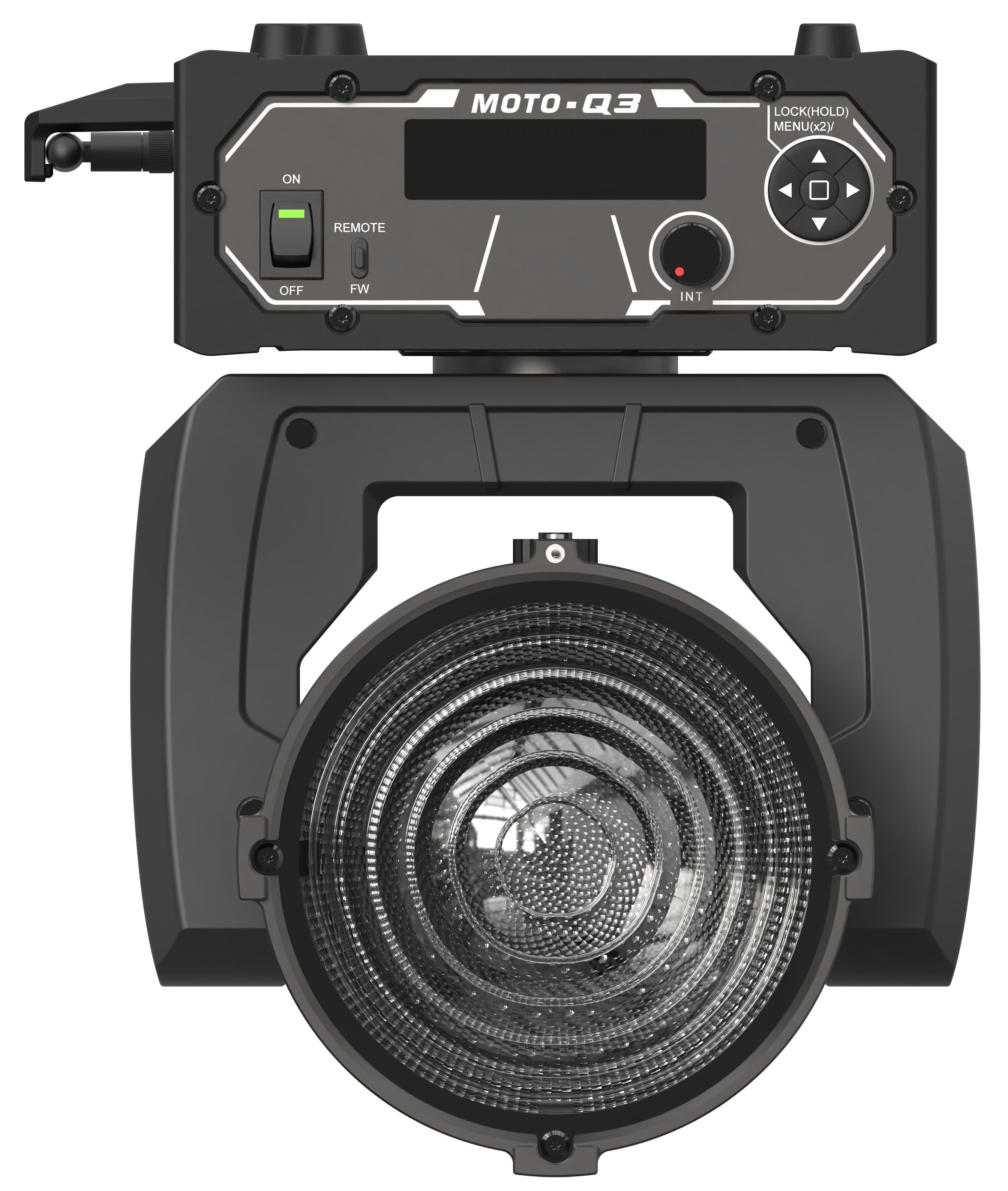

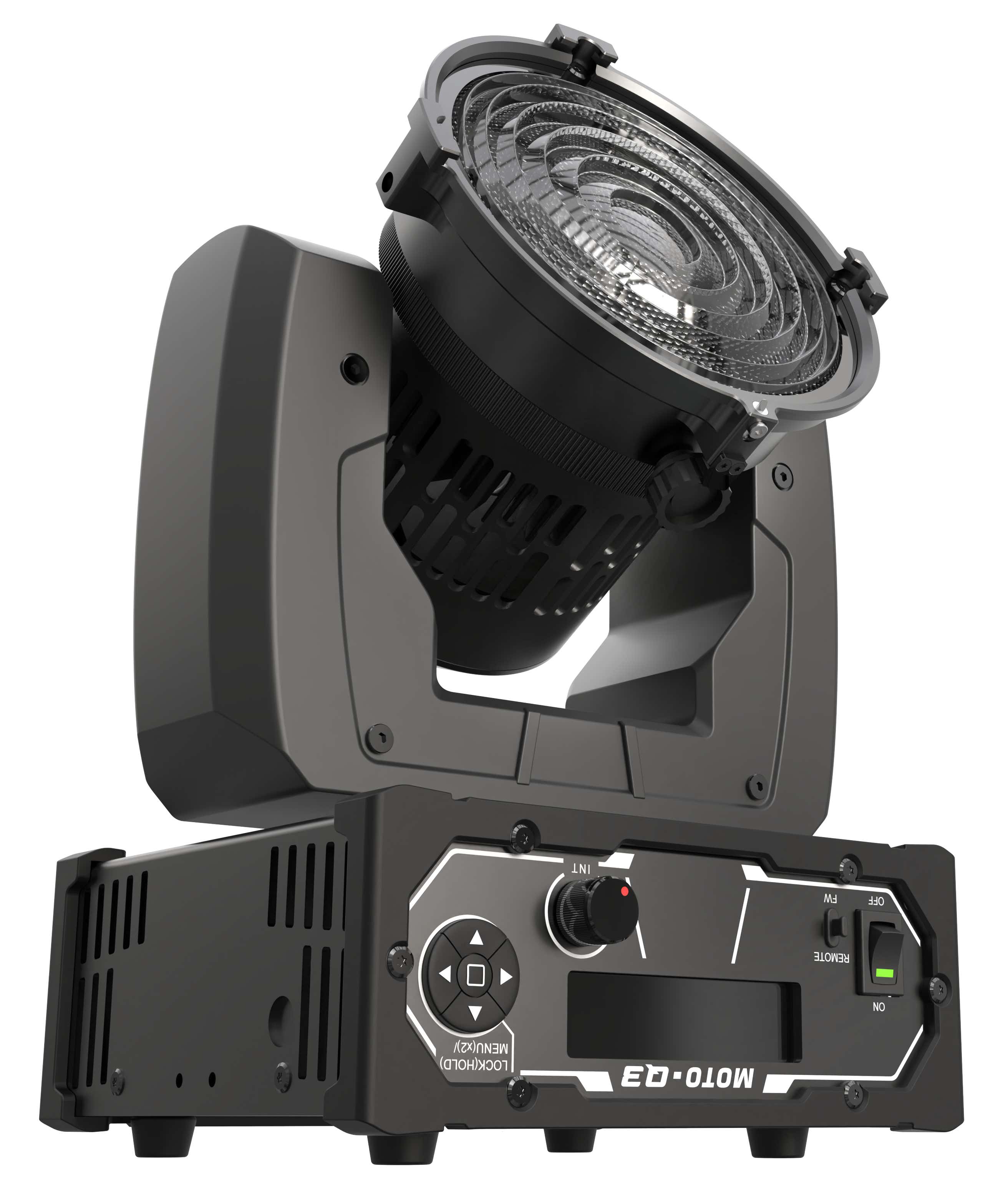

Fiilex MOTOQ3 COLOR

The MOTOQ3 adds motorized pan and tilt to the Fiilex Q3 COLOR. With 190 degrees of tilt, and 540 degrees of panning, the MOTOQ3 allows for complete freedom for all adjustments. Built-in LumenRadio with CRMX protocol allows the MOTOQ3 to seamlessly integrate with other Fiilex fixtures - bringing a whole new dimension to Fiilex's line of full-color cinematic LED fresnels.

SPECIFICATIONS

• Fresnel Diameter    5”
• Beam Angle    15°-45° with fresnel (55° without fresnel)
• CCT Range    2000-10000K continuous tuning + magenta/green shift
• CRI / TLCI    95 / 90 typical
• Control Modes    CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
• Dimming    100 - 0% flicker free
• Dimming Modes / Curve    Smooth, Sharp / Linear, Gamma
• Light Engine    DiCon Dense Matrix LED
• Power Consumption    100W max AC
• BTUs/hour    341 (BTUs/hour) max
• AC Input    100 - 240V AC, 50 ~ 60Hz

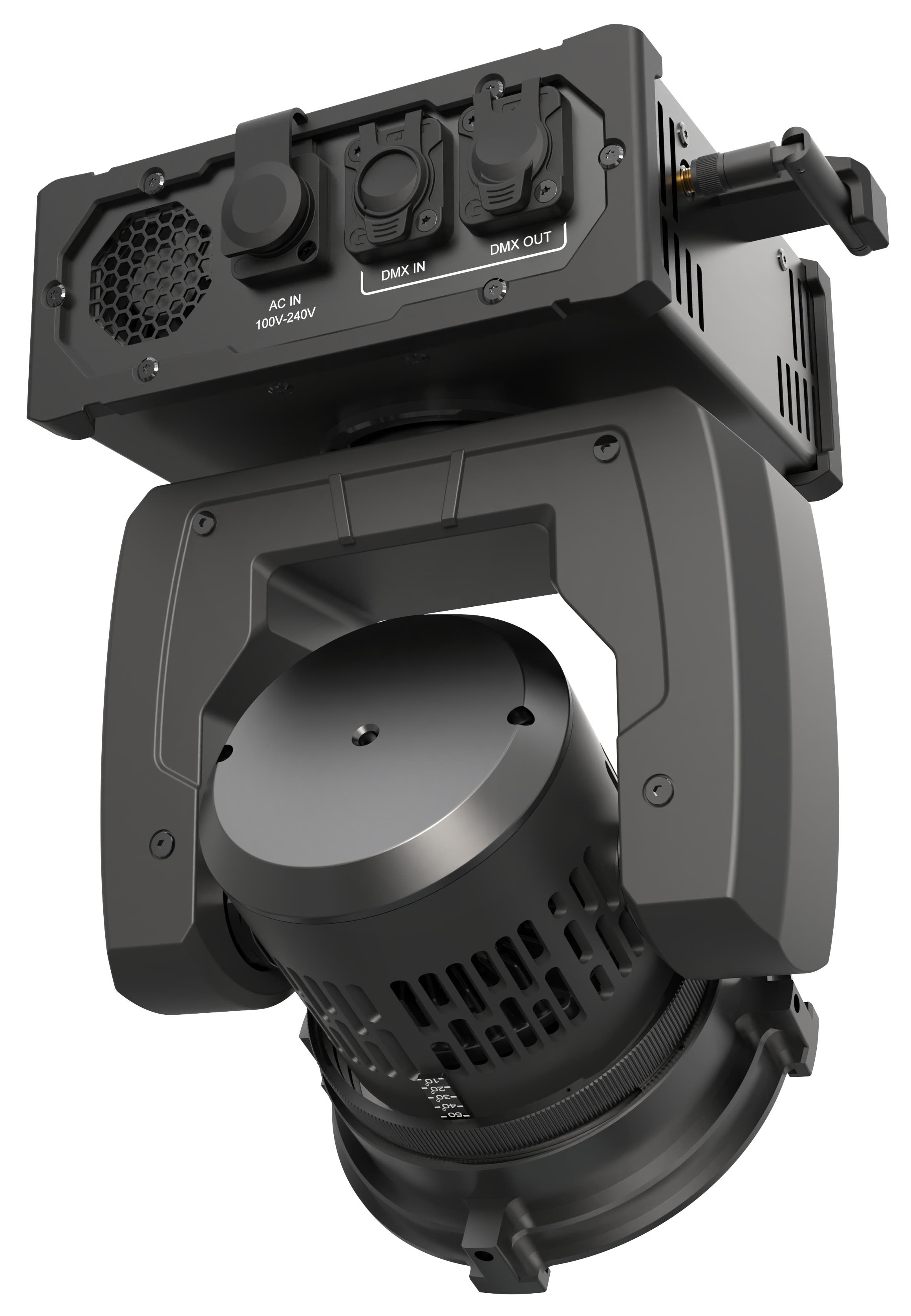

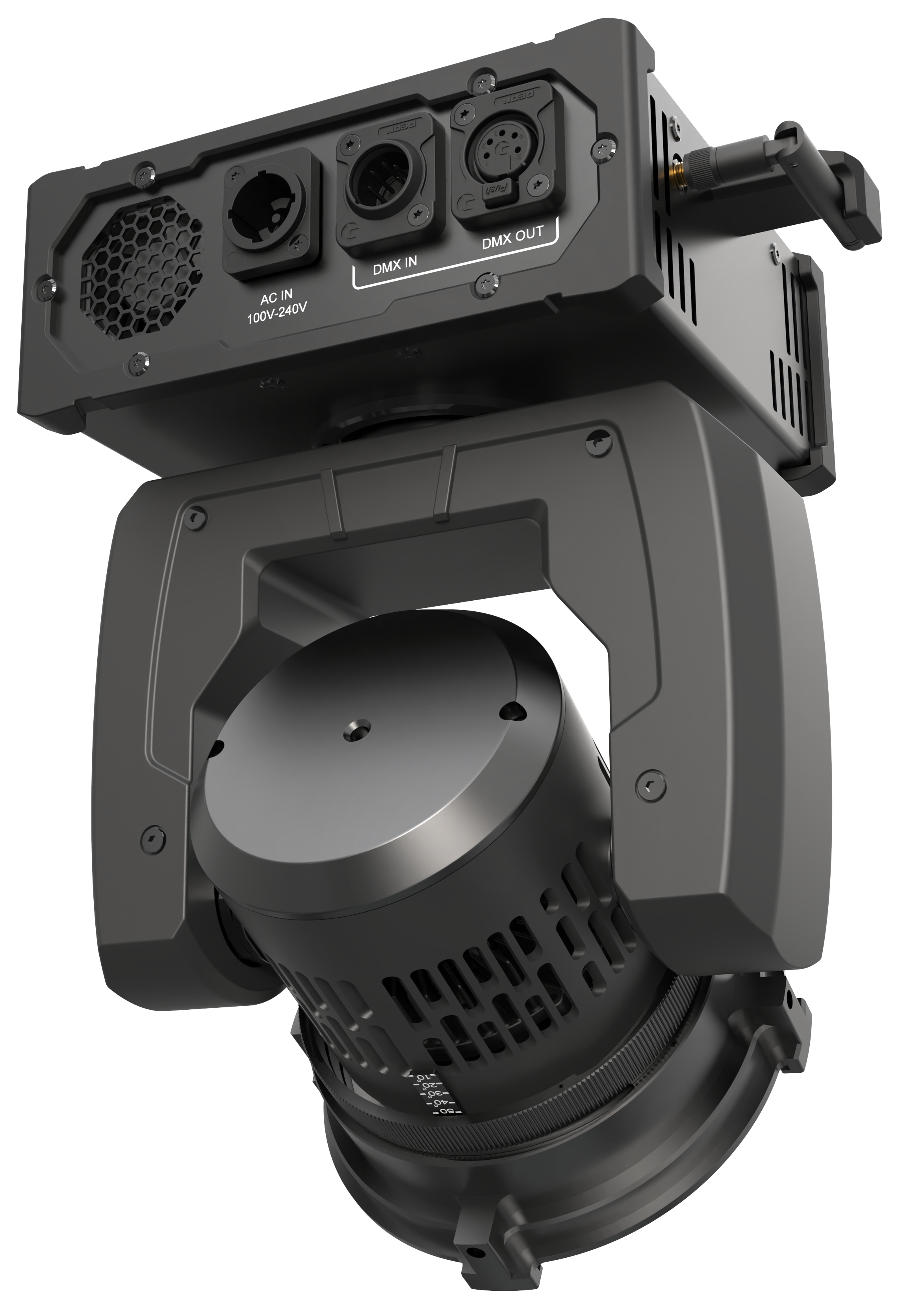

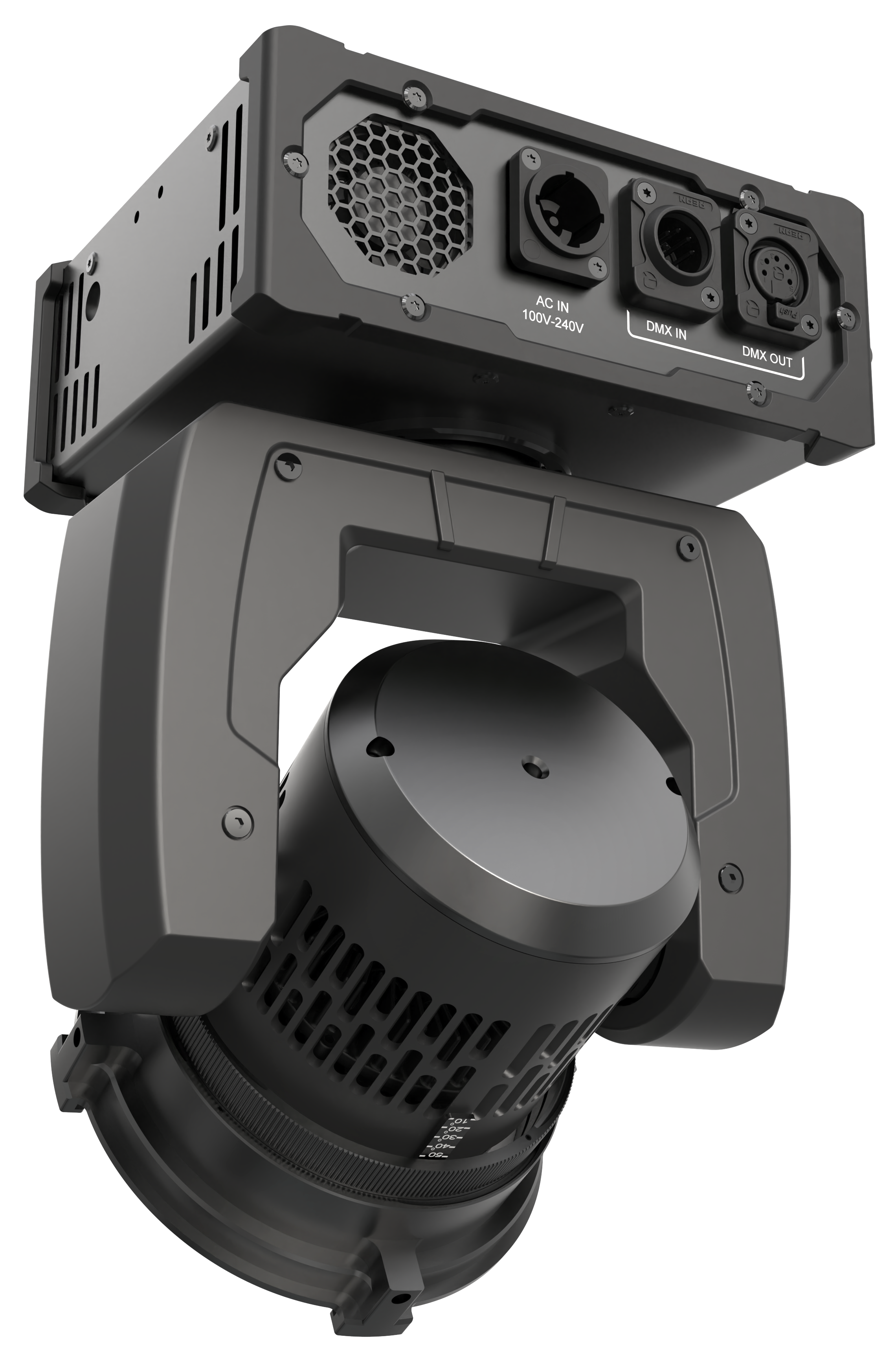

• DMX/RDM Port    XLR-5 in and out
• Wireless Control    Integrated LumenRadio CRMX
• USB-C Interface    5V/1A power / FW Update
• Weight    9.2 lbs / 4.2 kg (without CLAMP)
• Size (L x W x H)    6.7" x 8.7" x 10.9" / 17.0cm x 22.1cm x 27.7cm
• Pan / Tilt    Pan +/- 270° (540° total), Tilt +/- 95° (190° total)
• Mount Type    Truss Clamp / TOX track adapter
• IP Rating    IP-X5 (water-resistant)
• Thermal Design    Controllable fan
• Operating Temperature    0-40ºC / 32-104ºF
