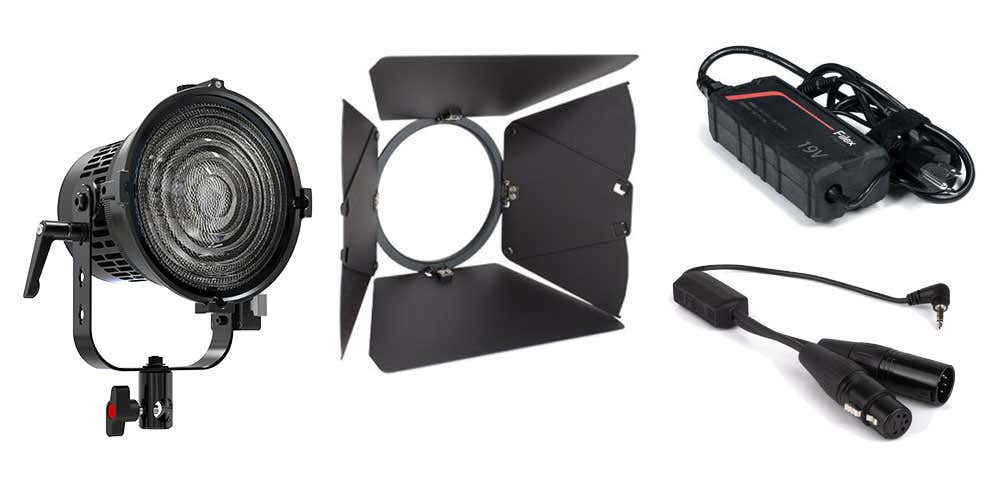

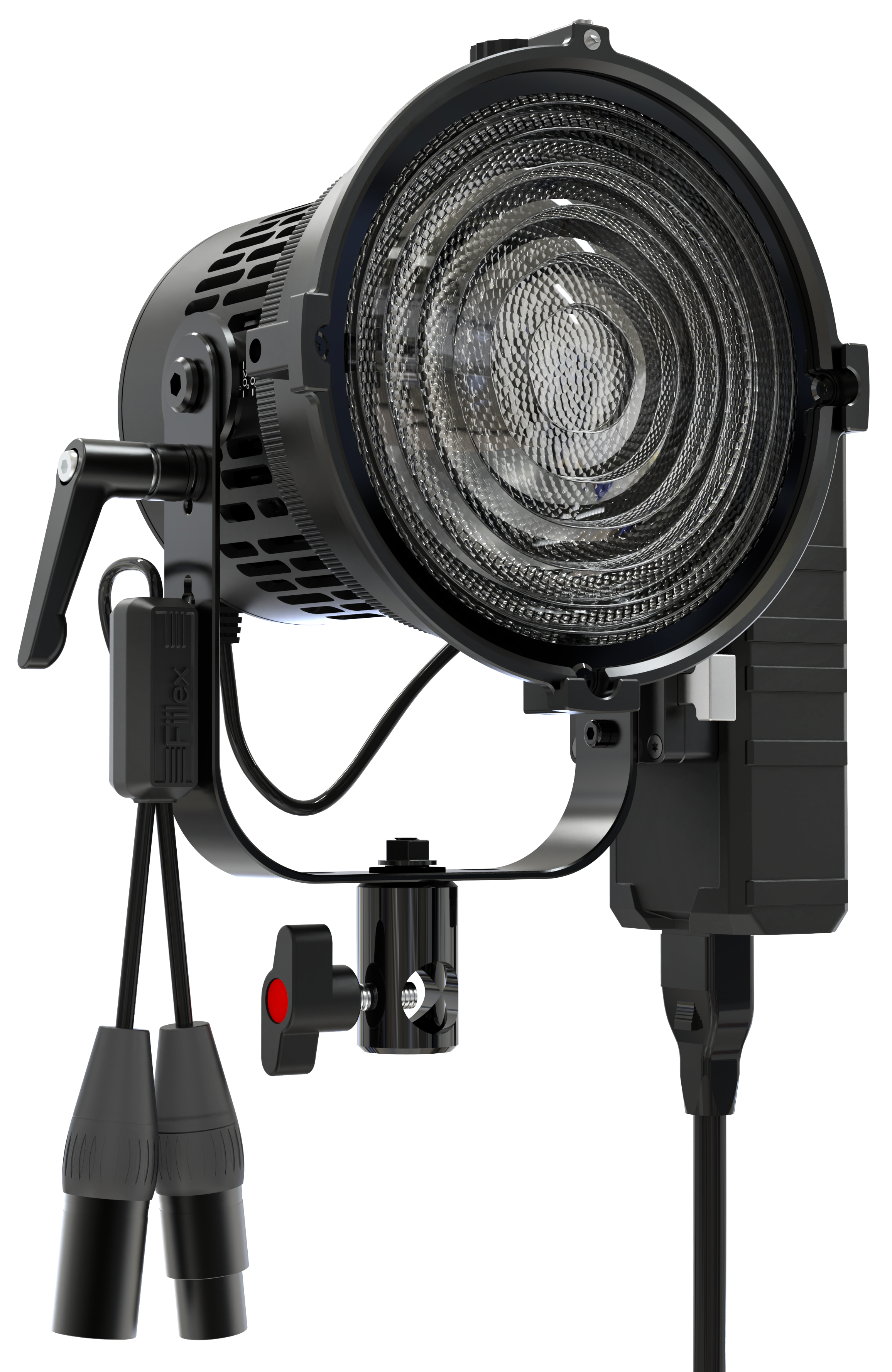

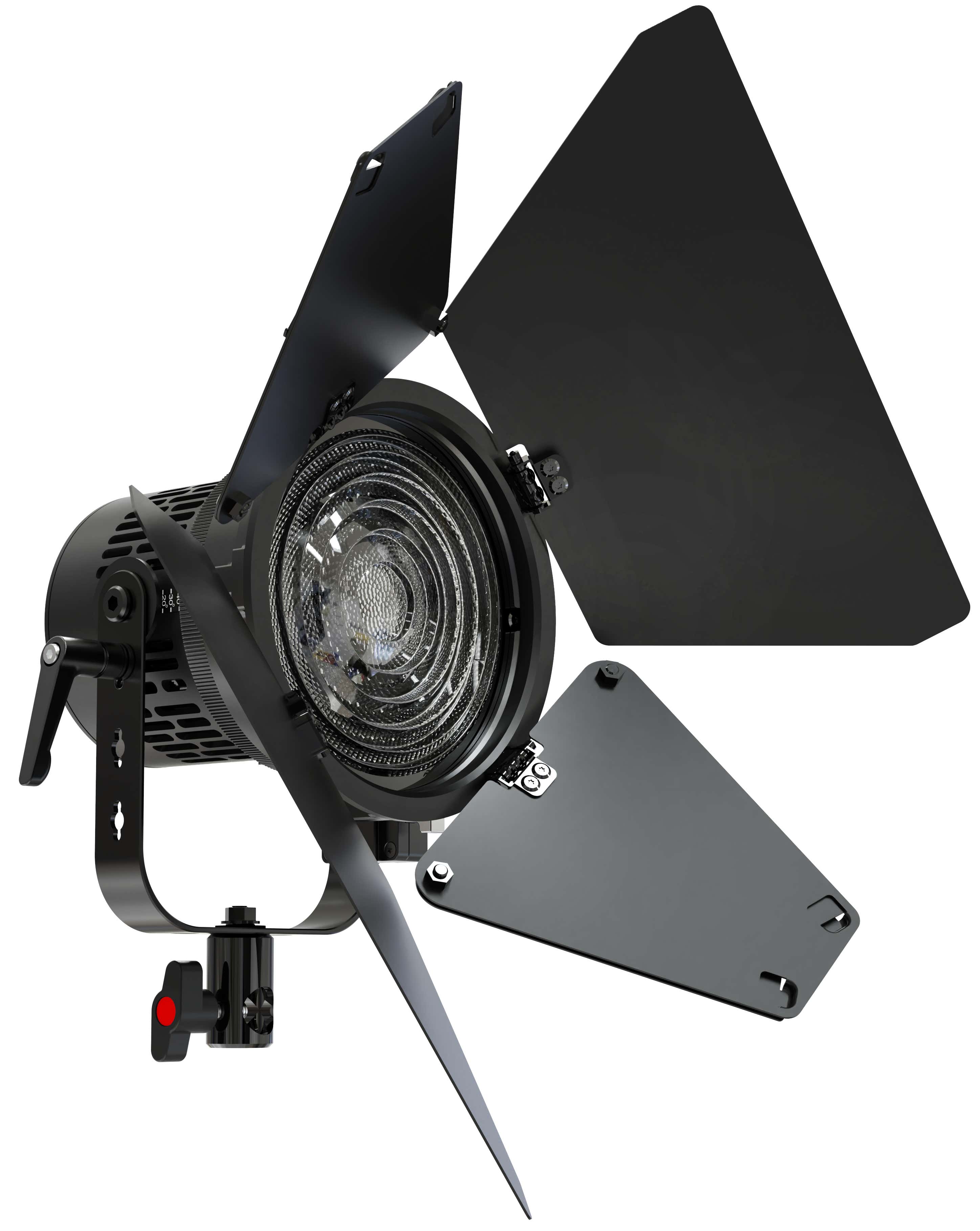

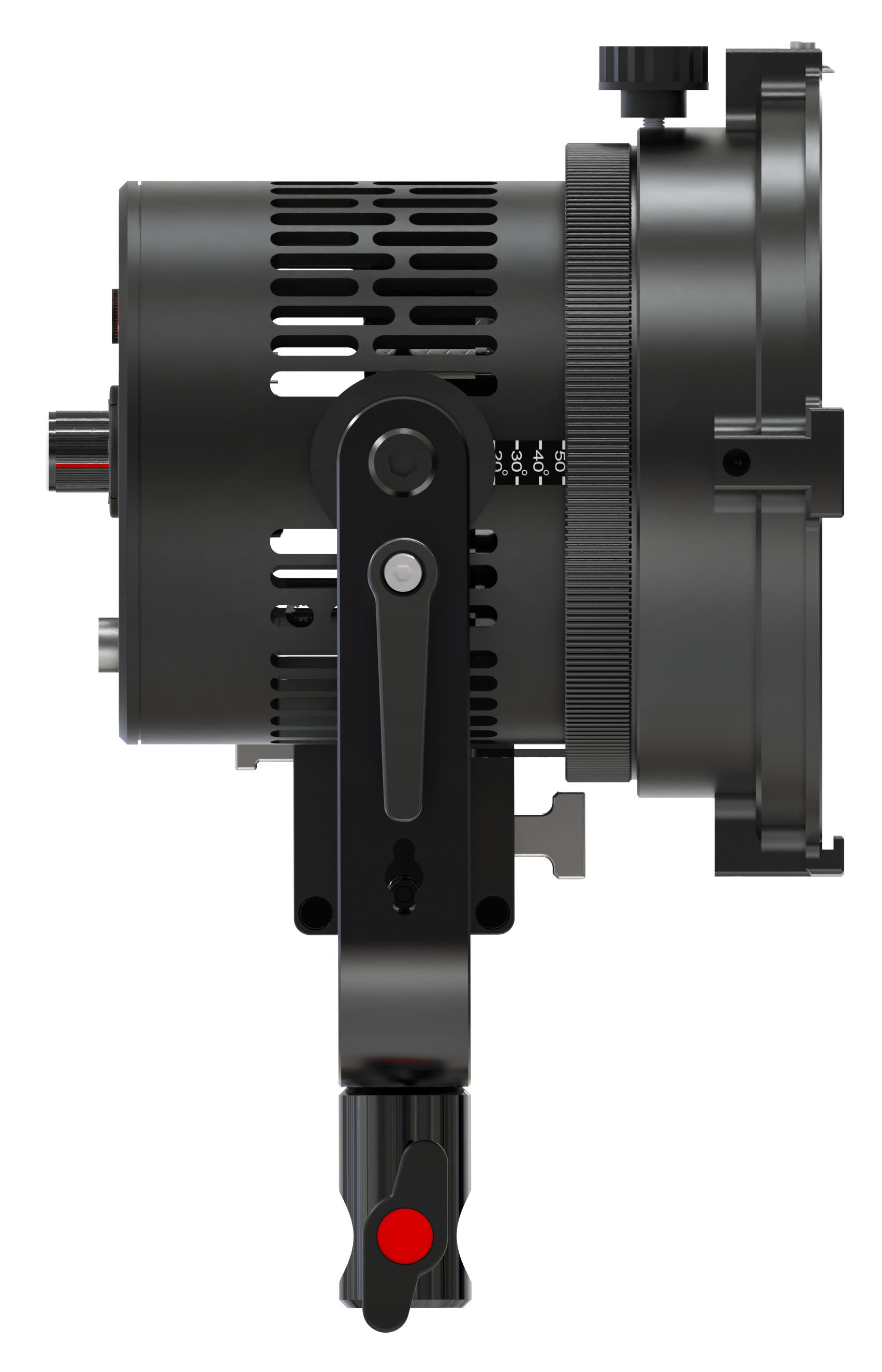

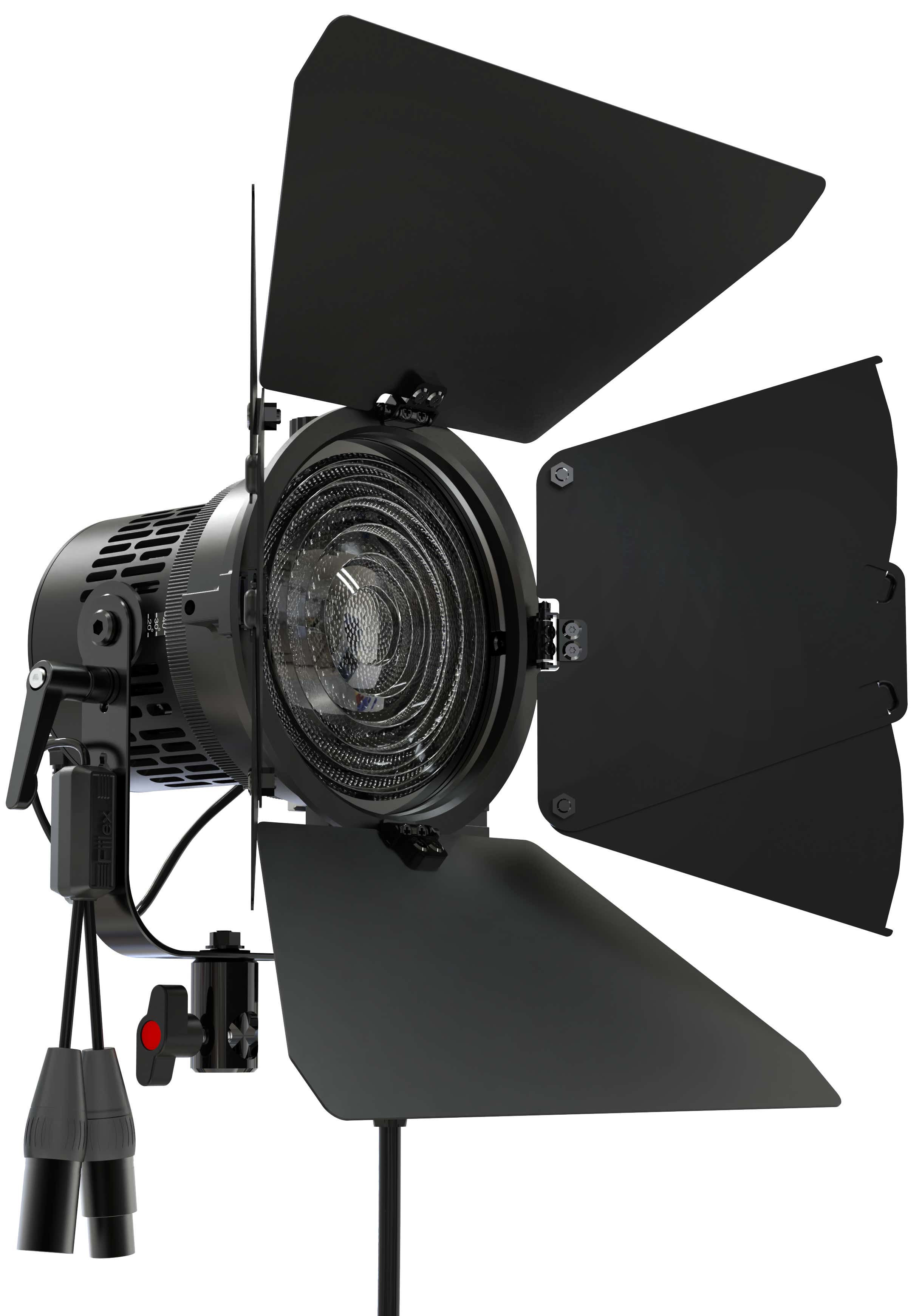

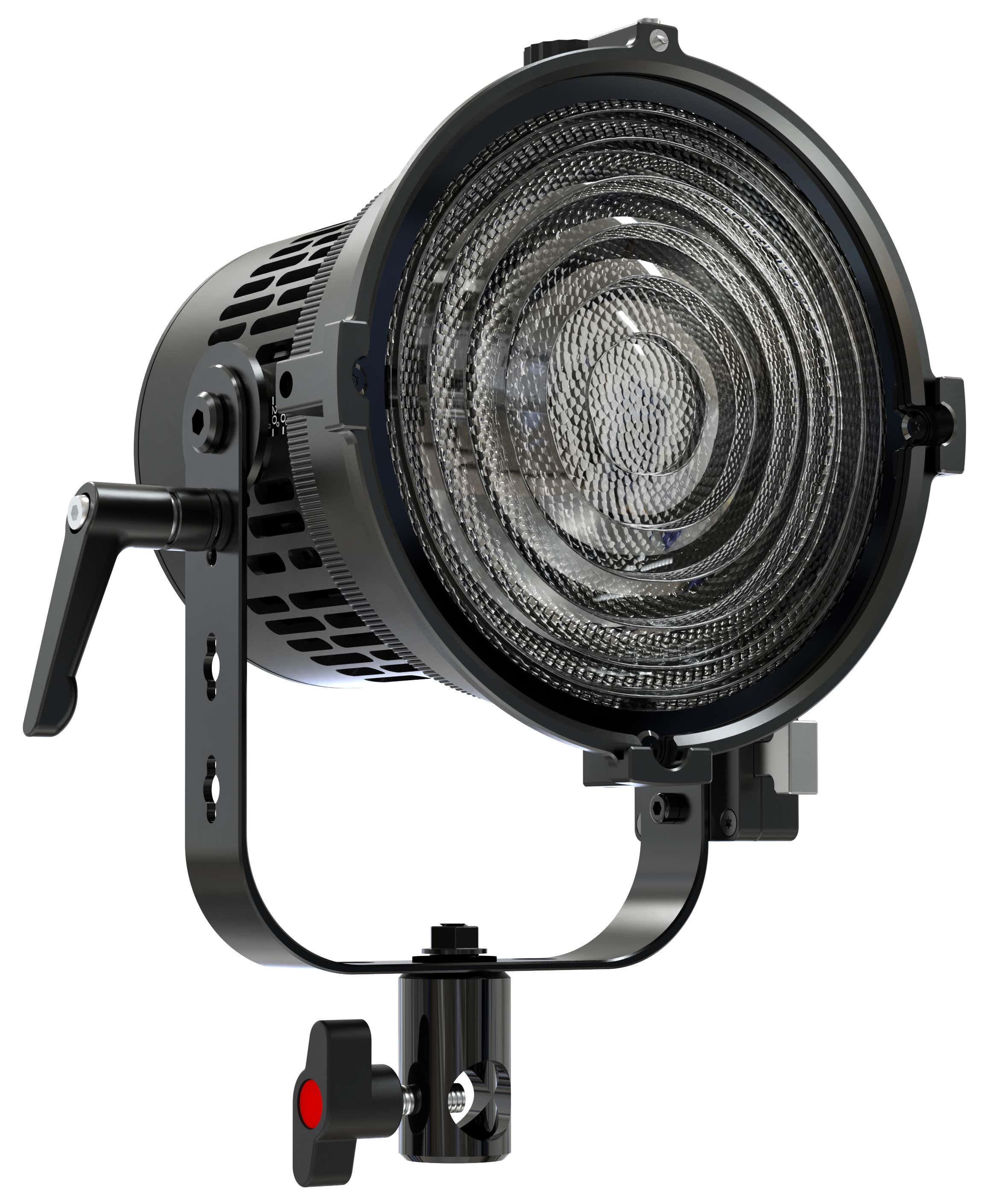

Fiilex Q3 COLOR-LR

The Q3 COLOR is a cinema-grade 90W full-color fresnel that packs a ton of features into its compact four pound housing. Almost a point source, this LED is capable of producing crisp shadows and clean barndoor cuts. Its IP-X5 rating and flexible mounting options also means it can be used and rigged in harsh and dynamic environments. No other portable LED fixture can match the Q3's combination of power, size, and control.

SPECIFICATIONS

• Fresnel Diameter    5”
• Beam Angle    15°-45° with fresnel (55° without fresnel)
• CCT Range    2000-10000K continuous tuning + magenta/green shift
• CRI / TLCI    95 / 90 typical
• Control Modes    CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
• Dimming    100 - 0% flicker free
• Dimming Modes / Curve    Smooth, Sharp / Linear, Gamma
• Light Engine    DiCon Dense Matrix LED
• Power Consumption    90W max AC | 80W max DC
• BTUs/hour    307 (BTUs/hour) max
• DC Input    14 - 30V DC (via 5.5mm x 2.5mm Barrel)
• AC Input    100 - 240V AC, 50 ~ 60Hz
• DMX/RDM Port    TRRS (XLR-5 via adapter)
• Wireless Control    Integrated LumenRadio CRMX
• USB Power Output    5V/1A (via USB-C)
• Weight    Fixture: 4.5 lbs / 2 kg (includes yoke, barndoors) | Power adapter: 1.1 lbs / 0.5 kg
• Size (L x W x H)    5.7" x 6.8" x 9.0" / 14.4cm x 17.4cm x 23.0cm
• Mount Type    Baby stud 5/8" female (16mm)
• IP Rating    IP-X5 (water-resistant)
• Thermal Design    Controllable fan
• Operating Temperature    0-40ºC / 32-104ºF
