ARRI Orbiter Fresnel Set
Orbiter Fresnel Set
The Orbiter Fresnel Lens creates a precise light spot with a soft single shadow. It delivers true Fresnel output with a real Gaussian field of light. The large zoom range of 15 to 65° is fully motorized and allows easy control locally or remotely. A status LED display shows the current zoom angle.
Celebrate 100 Years of ARRI Lighting with us and get our special offer of 3 free Open Face optics on top of the set:
- Open Face 15° L2.0033540
- Open Face 30° L2.0033541
- Open Face 60° L2.0033542

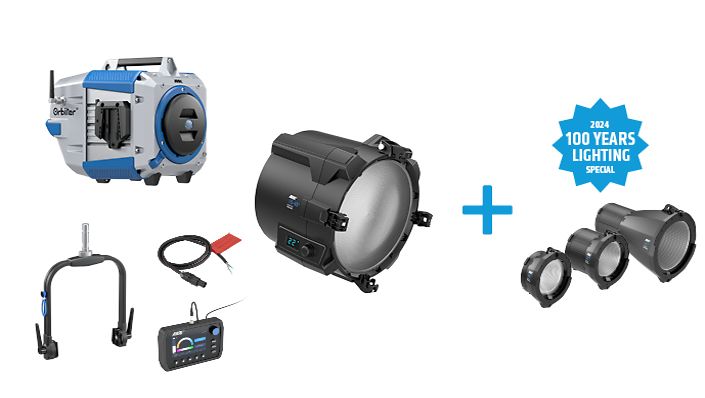

Parts of the set

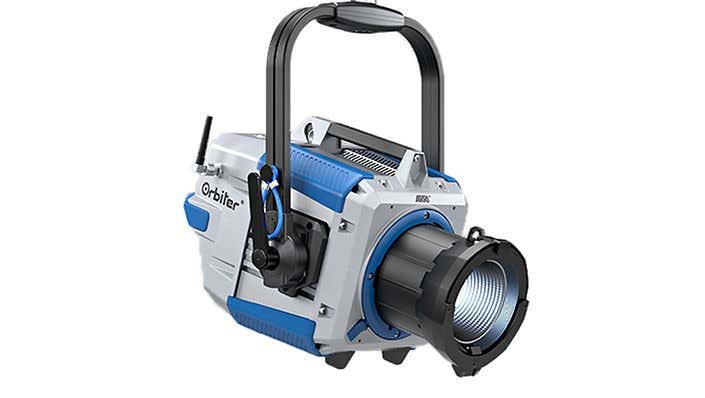

- L1.0033520, Orbiter blue/silver

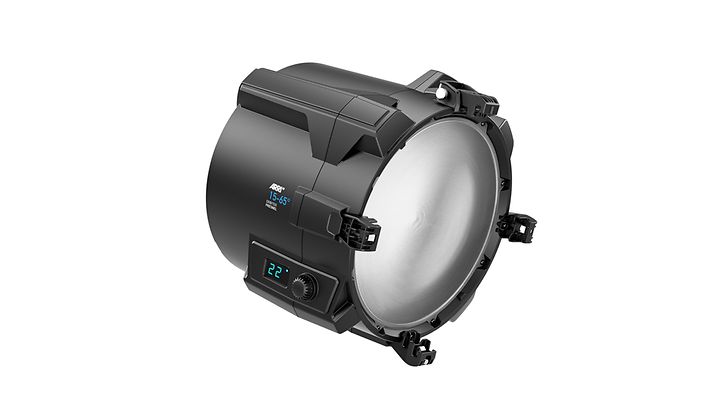

- L2.0039436, Orbiter Fresnel Lens 15-65°
- L2.0033732, Orbiter Control Panel

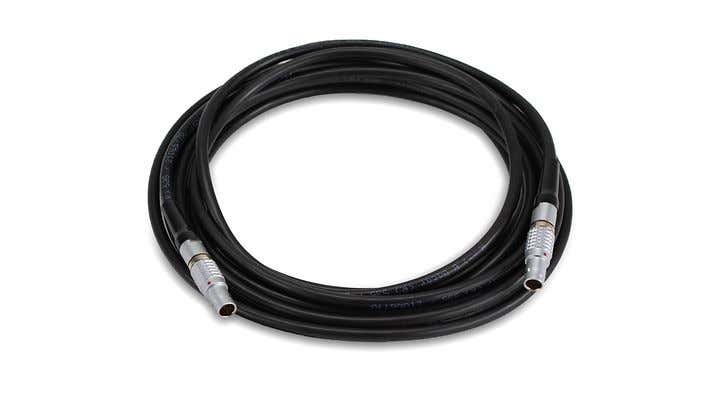

- L2.0033800, Cable for Control Panel, 15 m / 49.2 ft.

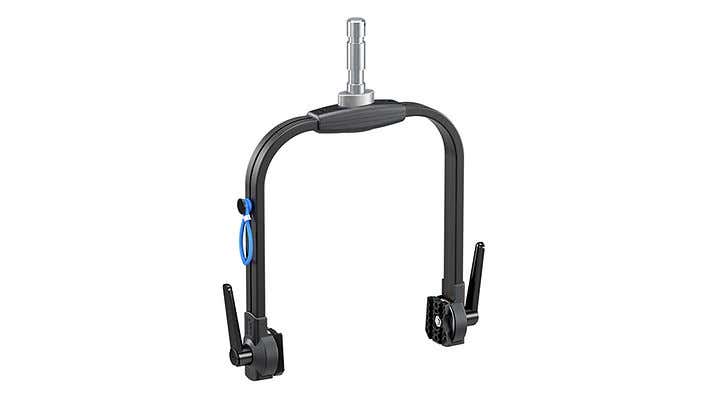

- L2.0034025, Orbiter Manual Yoke

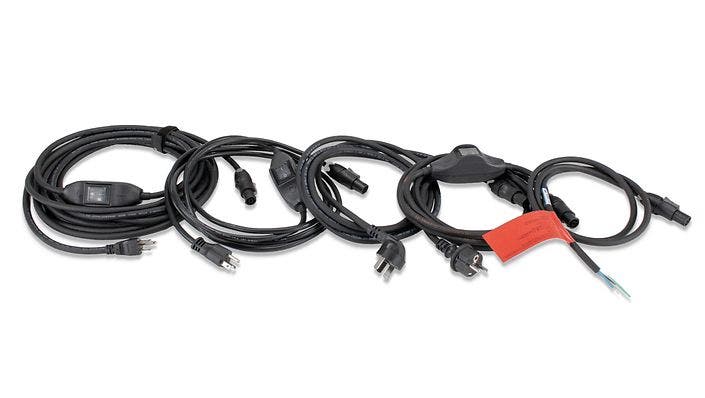

- L2.0024627, Mains cable, 3 m / 9.8 ft., powerCON TRUE1 TOP / Bare Ends, with line switch
Six-color LED light engine
Incorporating red, green, blue, amber, cyan, and lime LEDs, the ARRI Spectra six-color light engine provides a wider color gamut, more accurate colors, and most importantly, higher color rendition across the entire CCT range.
Wide gamut
Hues are precisely reproduced and the increased gamut allows for 15% more color possibilities than previous ARRI light engines.
Ultra-high color rendition
Orbiter has a larger CCT range of 2,000 to 20,000 K with ultra-high color rendering across all color temperatures. Skin tones look natural and flattering.
Compact light engine
Orbiter's light engine uses innovative LEDs to create a completely homogeneous color beam field. This light engine delivers a unique and unprecedented amount of brightness, which is achieved through the precise arrangement of the light-emitting diodes.
Color sensor
The Orbiter color sensor mode reads the ambient color surrounding the fixture and reproduces the color with great accuracy and quality.This way you have fast and accurate color matching for location work. Just daisy-chain to more Orbiters, or use measured xy coordinates on other fixtures.
Fast, powerful, and full of possibilties
The ARRI Orbiter is the most technologically advanced luminaire for image capture, maintaining superior color fidelity. Its digital lighting system will revolutionize your lighting setup.
Processor & memory
Orbiter’s processor is four times faster than the SkyPanel, with 125 times more memory, setting the stage for extensive software features and updates in the future.
Fully protected
Orbiter’s housing is weatherproof. To ensure no defects, Orbiter’s ports (such as power or XLR (for DMX)) require additional protection. The rain cover guarantees an IP24 rating and is mandatory when the Orbiter is tilted at a horizontal angle or facing downward, and recommended from 0° to 75° upwards. Orbiter without the rain cover is rated IP20.
Orbiter Rain Cover
The cover fits perfectly onto the back of the Orbiter and is secured in place by two straps. It is designed to allow the use of all existing interfaces. Discover the Orbiter rain cover.
LiOS - powerful software
Orbiter's system takes advantage of more than five years of software development for the SkyPanel.
The LiOS (Lighting Operating System) software inside Orbiter includes all the innovative and groundbreaking features from SkyPanel, plus others, making Orbiter one of the most fully‑featured luminaires on the market. By downloading the latest LiOS version for free, your lighting fixture is always up-to-date with amazing new features.

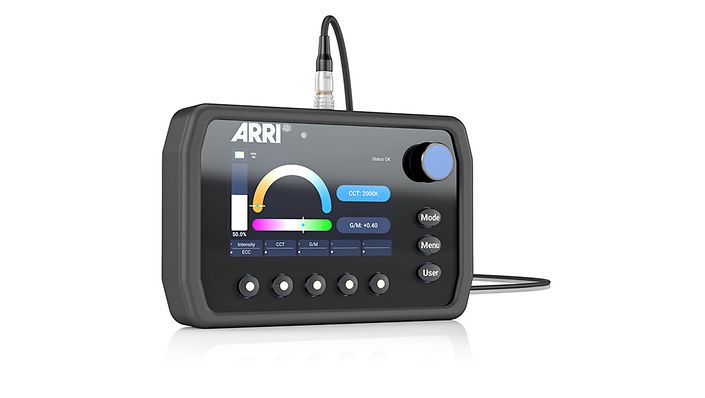

Handheld light control
Redesigned by professionals for professionals, the Orbiter control panel is an evolutionary step in light fixture control. Easily control the Orbiter via a 4'' color display, featuring integrated sensors and intuitive buttons for quick navigation, either handheld with the aid of a 5 or 15 m (16.4 or 49.2 ft) control panel cable or as a fixed controller attached to the Orbiter.
Single action operation
The simplified menu structure and redesigned user interface provide one-glance operational views and uncluttered screens. This intuitive design makes changing the color or finding a setting easier than ever before.
