Encore Burst 100IP-Demo

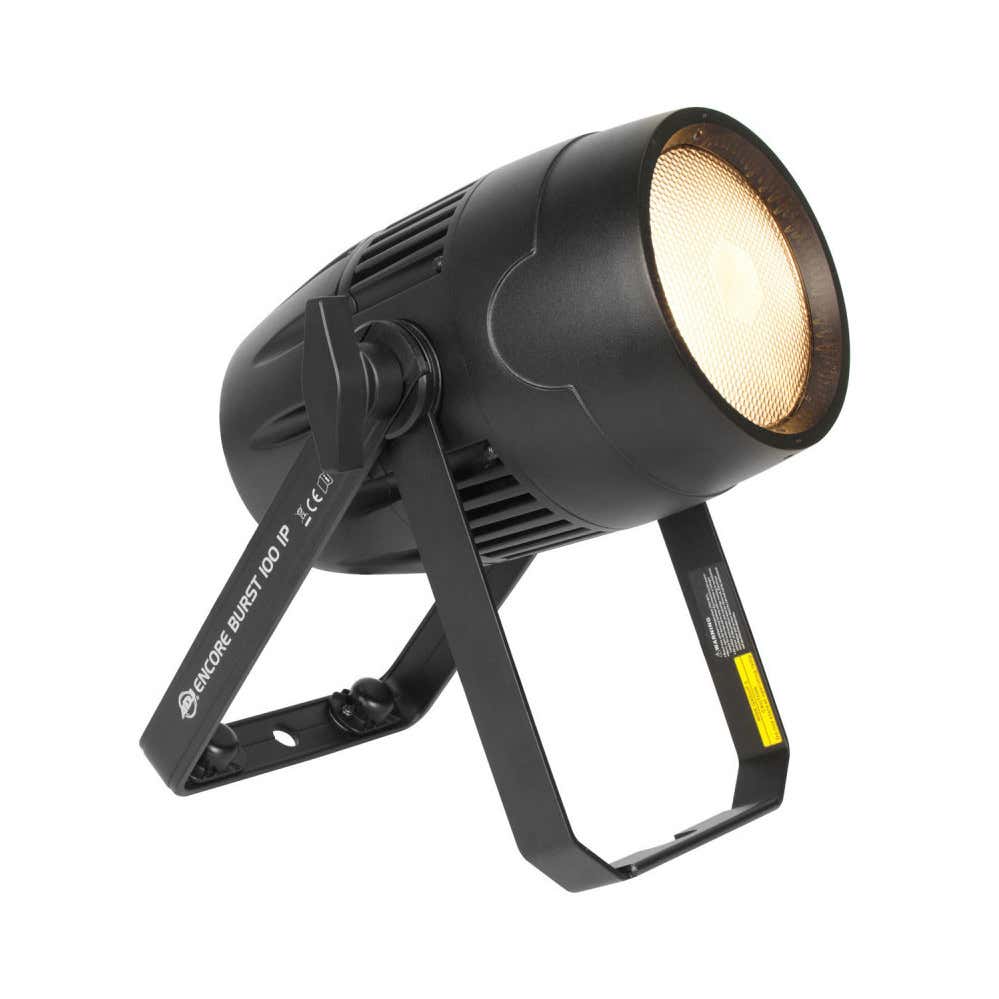

The ADJ Encore Burst 100 IP is a high intensity, IP65 outdoor rated audience blinder/strobe with 125W Warm white (2700K) CREE C.O.B. LED and Tungsten mode (dim to warm). The fixture is constructed of a rugged metal housing. The fixture features a dim to warm effect that replicates a halogen-like dimming profile with a 50-degree beam angle.
The Encore Burst 100 IP has selectable dimming curves, strobe effect, 4-button LED menu system, 5-pin IP65 DMX In/Out plus IP65 Locking Power IN/Out to daisy chain power (rubber protective covers over connections).
Source

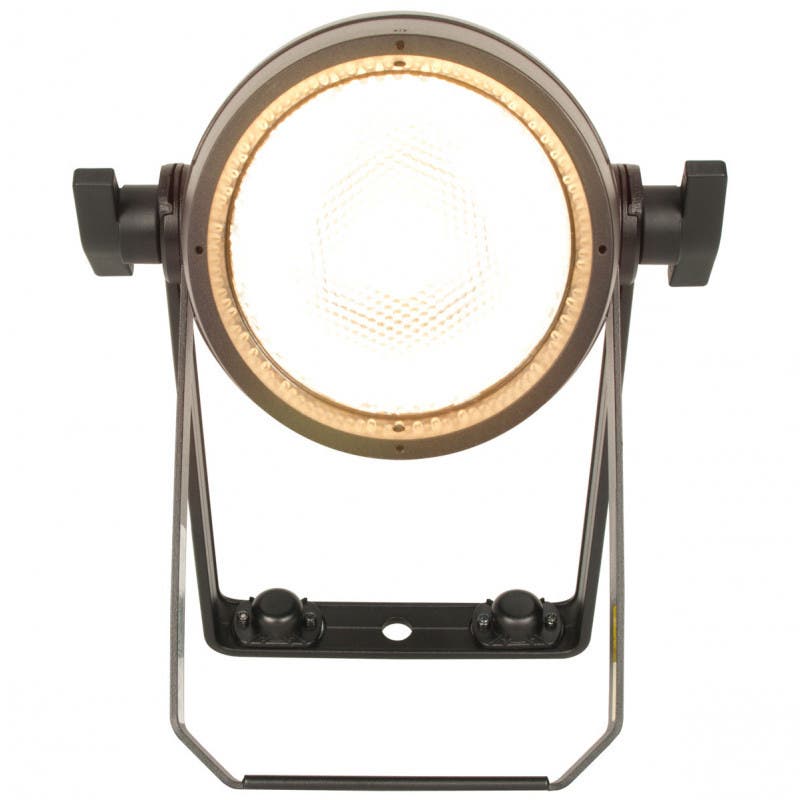

• Light Source: 1 WW CREE COB-LED
• Individual LED wattage : 125W
• Average LED lifetime : approximately 50,000 hrs.
• Color temperature : 2700K (1200K Tungsten Mode)
Optics

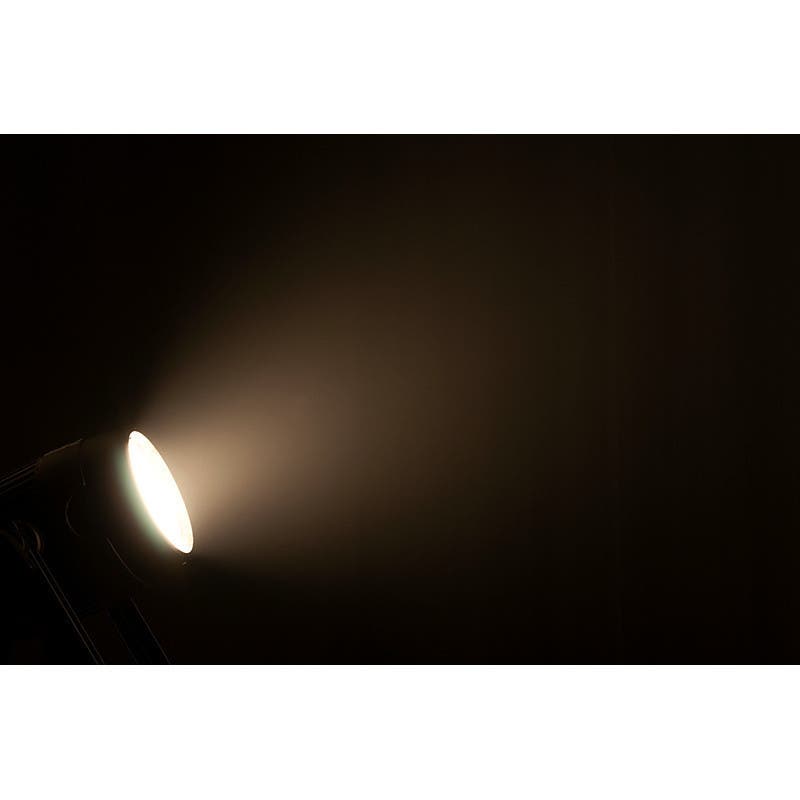

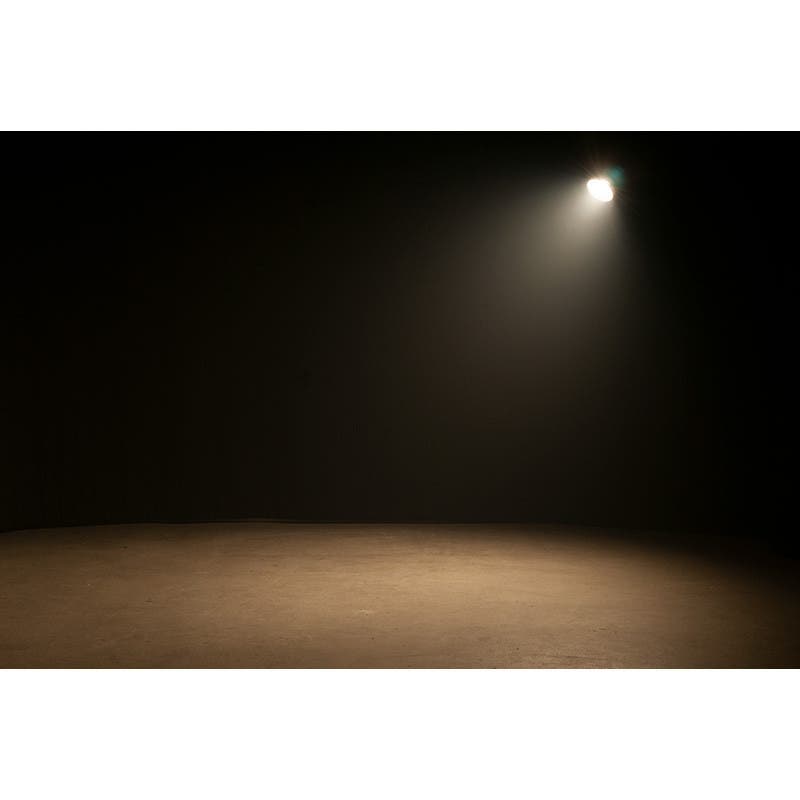

• Beam Angle: 50 degrees
Control
• 3 operational Modes : Manual Dimmer Mode, Tungsten Mode and DMX Control
• 4 DMX Modes: 1, 2, 3 & 4-channel
• RDM compatible
• 16bit Electronic Dimming: 0 - 100%
• 6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• Adjustable Dim Speed 0,1secs - 10secs
• Adjustable LED refresh Rate : 900Hz - 25kHz
• Adjustable Gamma Brightness : 1.0/2.0/2.2/2.4/2.6/2.8
• LED pulse and strobe effect

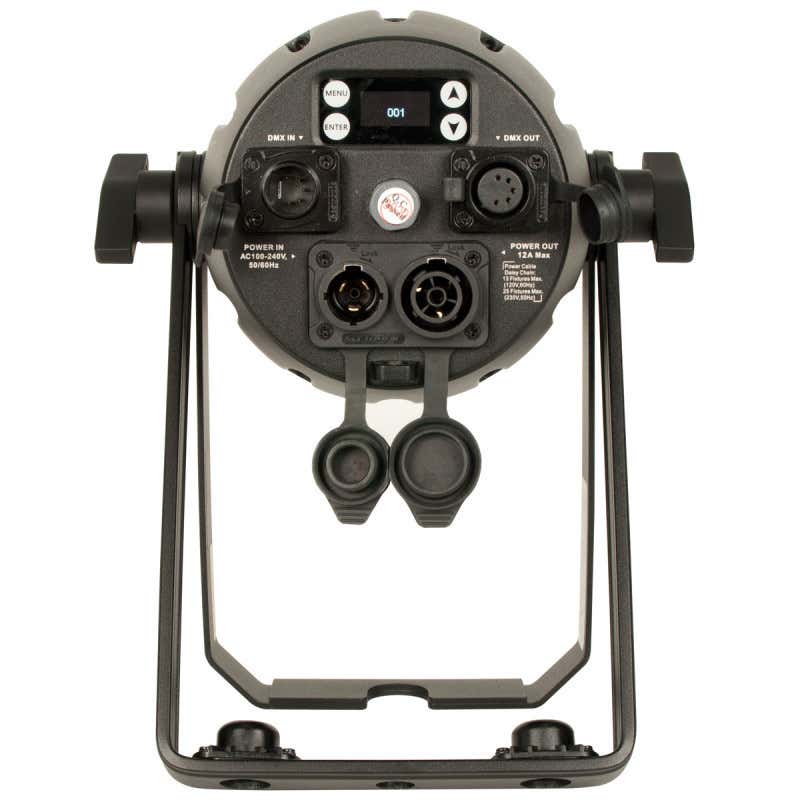

• 4-button, DMX digital touch OLED display on rear panel
Colors
• Warm White 2700K (1200K Tungsten Mode)
Construction
• Metal Housing
• IP Rating: IP65

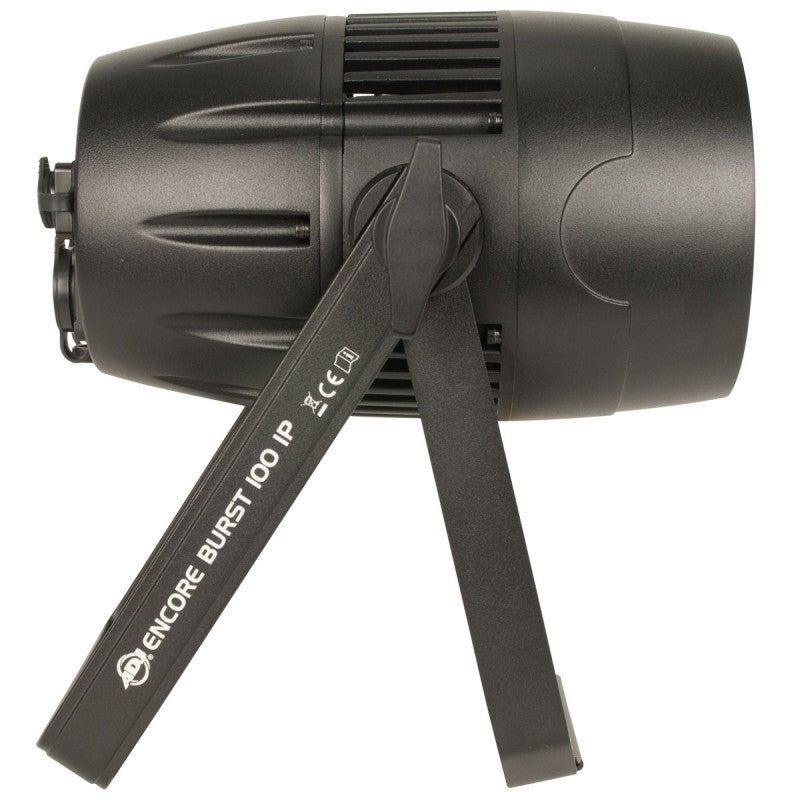

• Scissor yoke

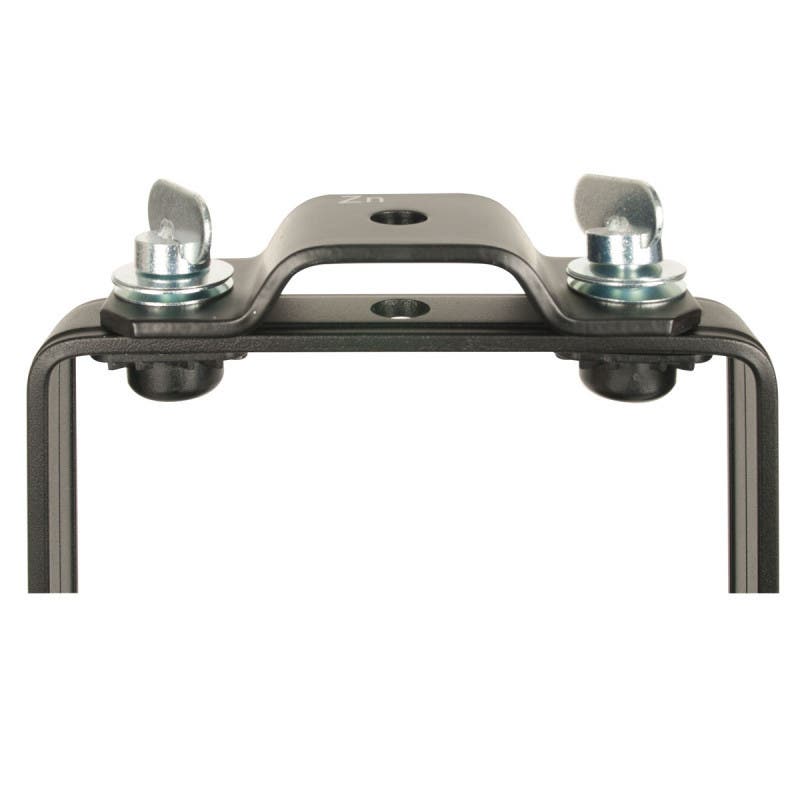

• Optional Quicklock Bracket (order Code 9900007439 OmegaBracket 108mm)

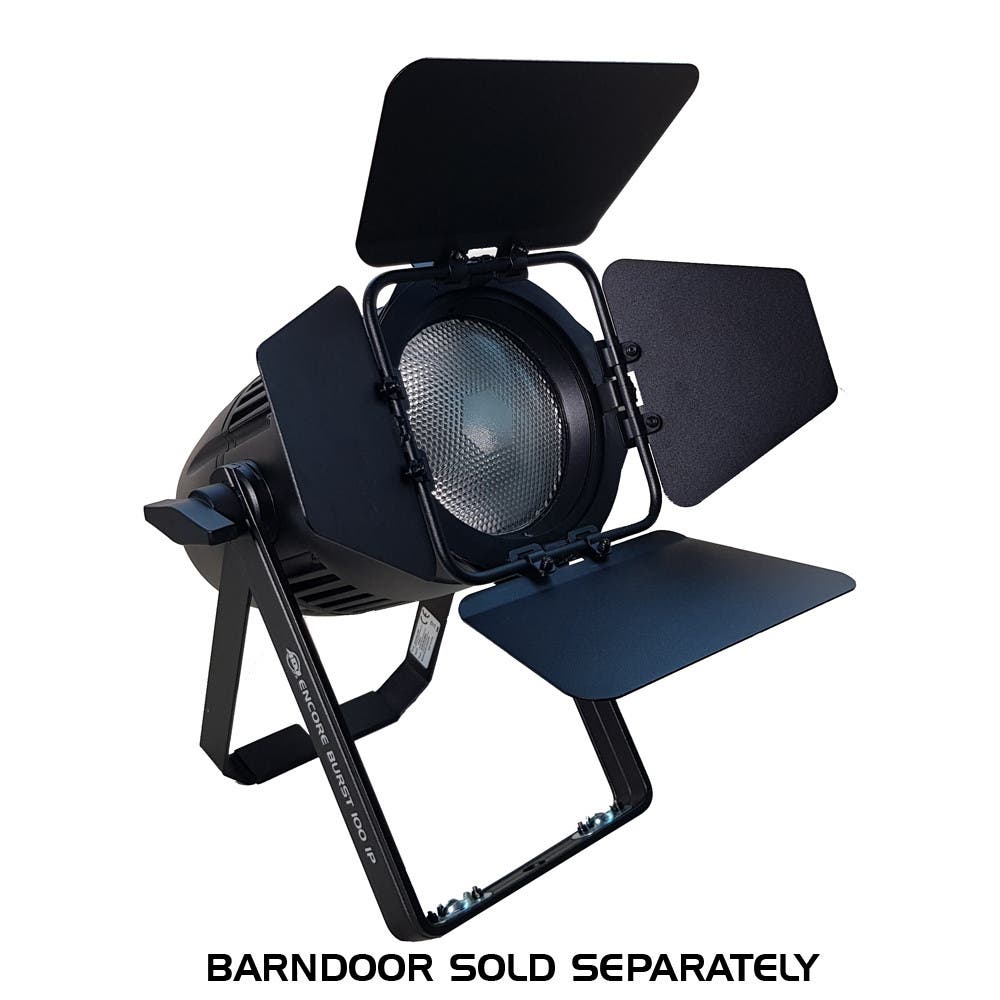

• Optional Barndoors (order Code 1226100380)
Electrical
• Multivoltage 100-240V 50/60Hz
• Power Consumption: 115W

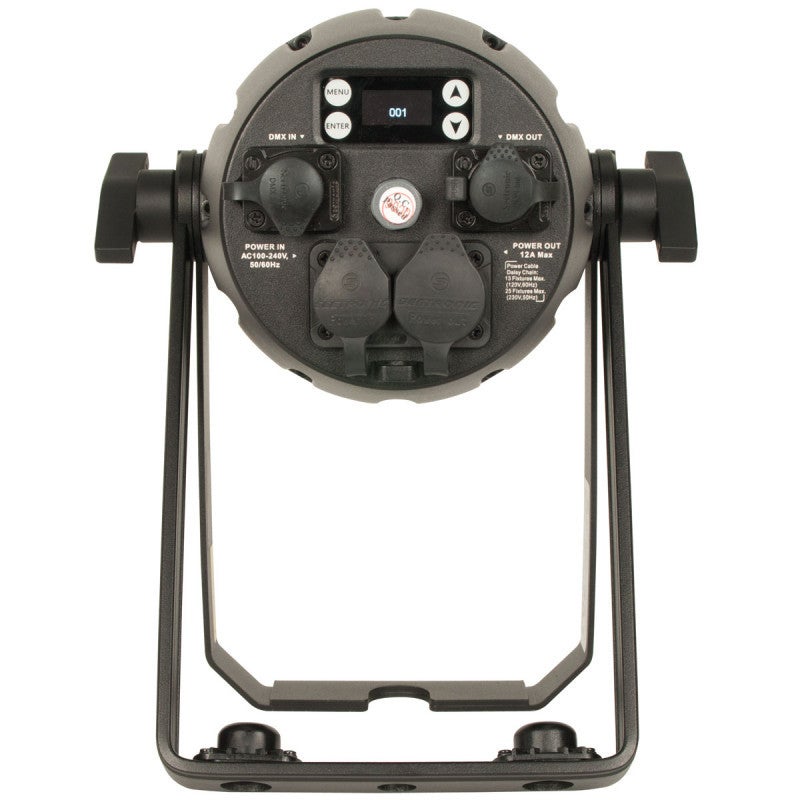

Connections
• 5-pin IP65 Locking DMX In/Out connections
• IP65 Locking Power In/Out connections
