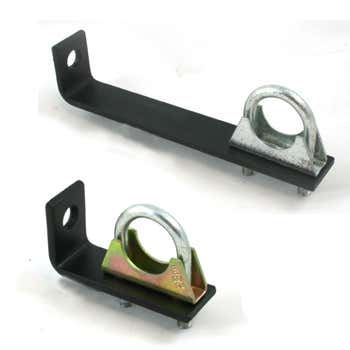

Doughty SixTrack Short Support Bracket

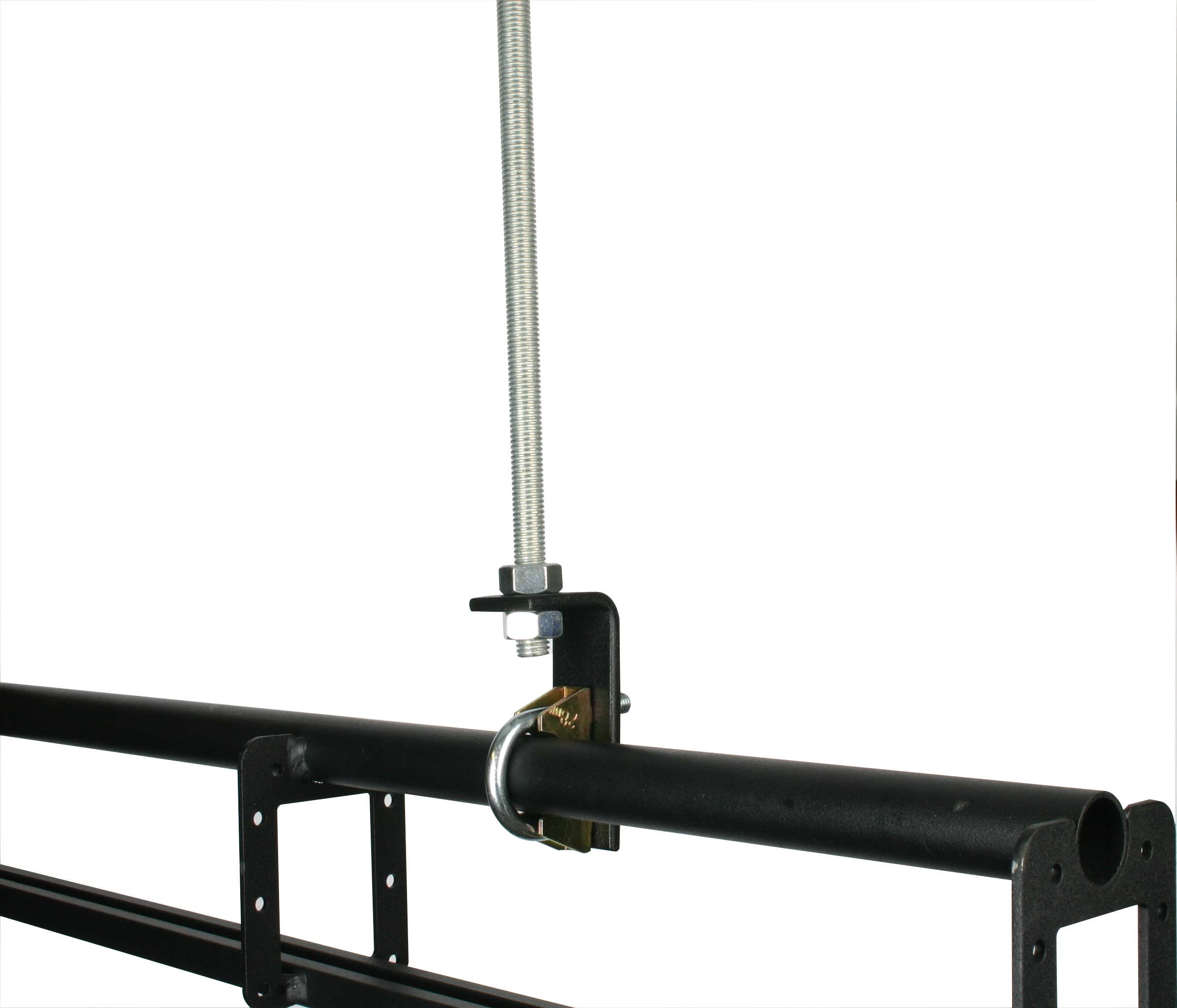

Six Track is suspended from its top rail using Adjustable Support Brackets and M12 Studding.

Up to 100mm of adjustment can be achieved by using the Adjustable Support Bracket and two Lock Nuts on M12 Studding.

In confined spaces the Short Support Brackets should be used.

The Short Support Bracket offers minimal adjustment.

Maximum span between supports with an open cloth is 2.25m. Maximum span between end supports with a bunched cloth is 1.60m.
