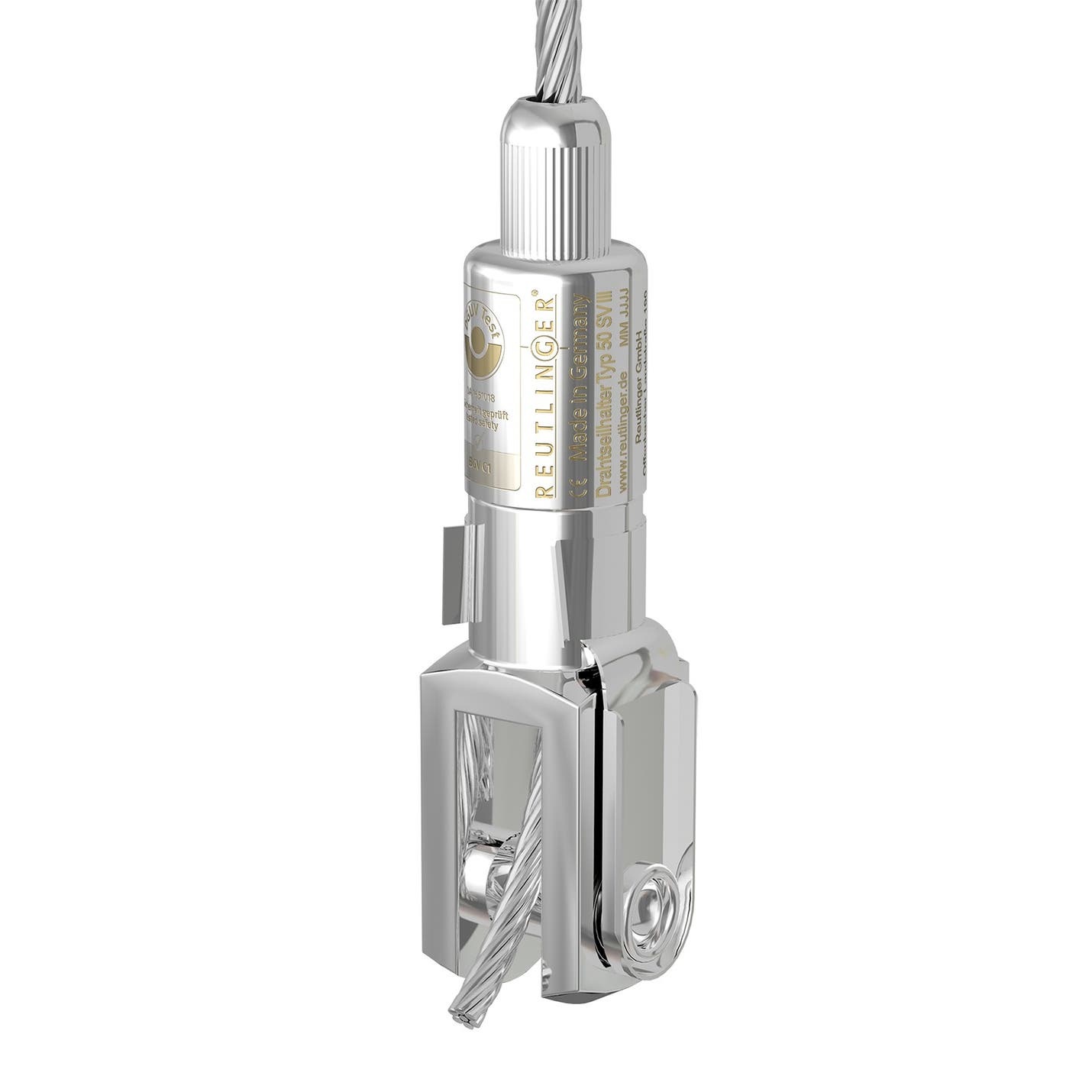

Reutlinger 50 SV III nickel fork

The wire rope holder with central cable exit, fork 14x28 incl. safety bolt, locking nut and six-ball gripping mechanism is TÜV certified and has also the test certificate for use in the scope of application DGUV regulation 17 (BGV C1).

Users who use products in event and production sites for scenic representations are obliged to always observe the latest regulations in the area of ​​work safety and accident prevention. The user is responsible for the post-processing.

• Application: only for indoor use
• Version: nickel plated
• Wire rope Ø: 4.0mm and 5.0mm
• Safe working loads: 60-90kg due DGUV 17 (old BGV C1)
• Max. deflection angle: 5°
• Diameter: 25 mm
• Lenght: 107 mm
• Fork width: 14 mm
• Fork lenght: 41 mm
• Usable fork lenght: 28 mm
• Bore diameter: 14 mm
