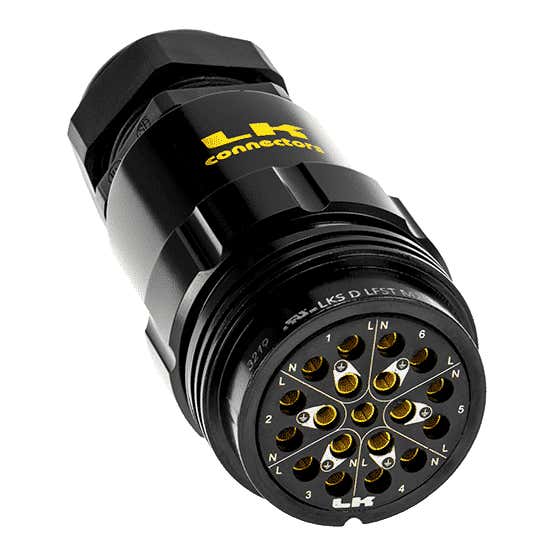

LKS 19-Pin Socapex Style Crimp Kabelhona

LKS 19 pin line female connector
• Crimp retention tulip pins
• Standard backshell
• PG29 with locknut cable strain relief

LKS 19 pin line connectors represent a significant breakthrough in reliability and safety while maintaining full compatibility with Socapex SL 419 series. Based on the LK Series MIL-SPEC designs, these connectors are extremely robust, IP68 rated and available with impact resistant rubber locking rings.

• Screw coupling connector
• Fully compatible with Socapex SL 419 series
• Ground first contact
• Gold plated machined pins for conductors from 1.5 to 4 mm²
• Dual ground rings
• Anti spinning system
• Plastic insulating sleeve
• Body ground fulfilling UL & NEC requirements
• IP68 rated when mated
• Interchangeable locking rings

Connector Color: Black
Connector Size: 32 (Socapex compatible)
IP Rating: IP68
Pin Coating: Gold
Pin Size - Power: 12
Poles: 19
Signal: Lighting, Power
