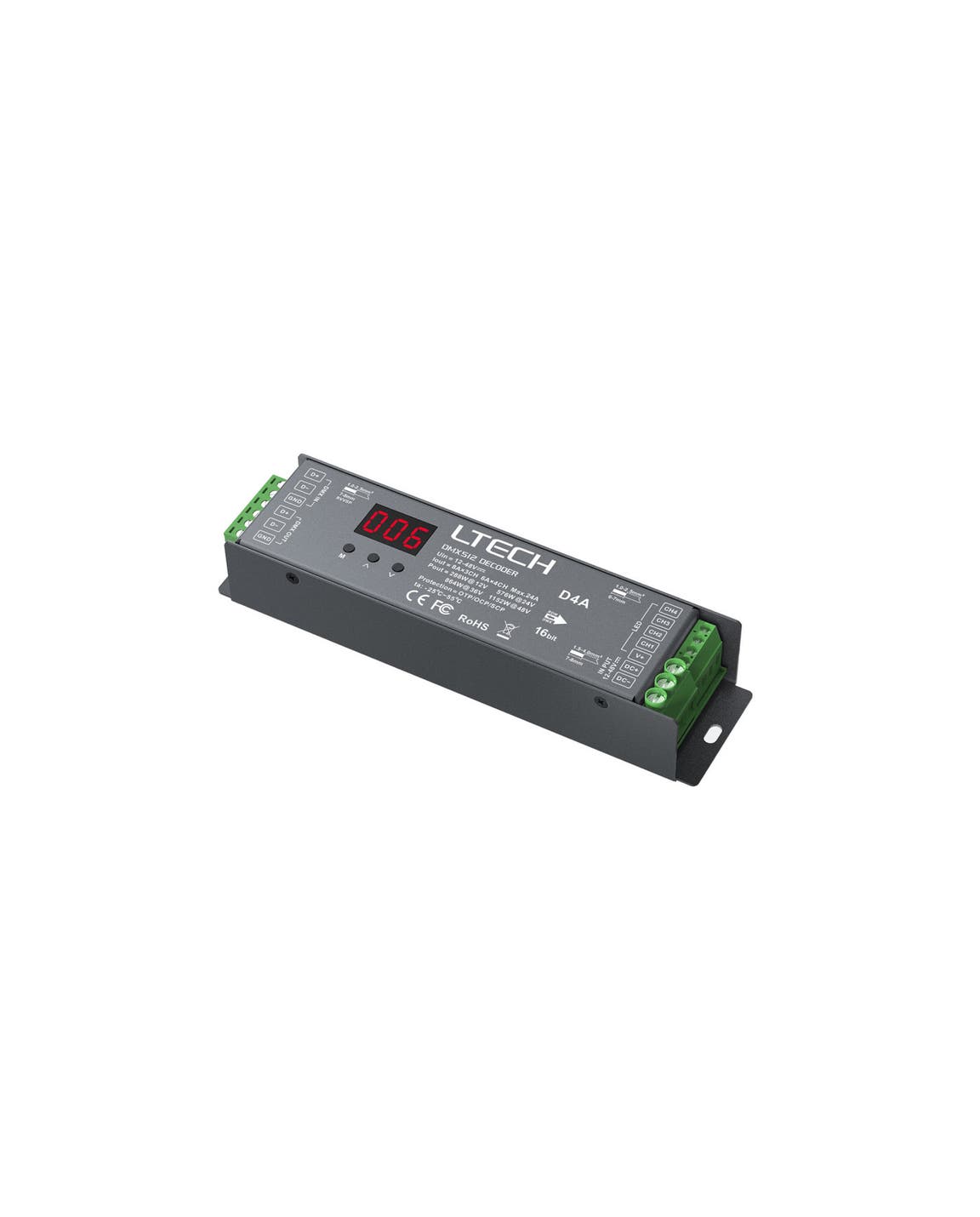

4CH DMX/RDM CV LED Dimmer 12-48V DC 4x 6A, max 1152W (RGBW)

Constant Voltage 4 Channel DMX/RDM Decoder

• Standard DMX/RDM interfaces; Set addresses via the digital display and buttons.
• RDM protocol; Browse parameters and change DMX addresses via a RDM master
• or via the mobile APP .
• DMX mode and customized mode can be switched.
• PWM frequency options: 300/600/1200/1500/1800/2400/3600/7200/10800/
• 14400/18000Hz.
• 16bit (65536 levels)/8bit (256 levels) gray scale optional.
• Two dimming mode options: standard and smooth dimming.
• Set 1/2/3/4 DMX channel output.
• Provide 10 lighting effects, 8 speed levels of dynamic modes, and 255 brightness levels.
• Set screen timeout, LCD screen always on, and screen turning off after 30s of inactivity.
• Short circuit, over-temperature, over-current protection and auto recovery.
