16CH DMX CC LED Dimmer 350mA 16CH x 350mA, max 257.6W, XLR 3-pin / RJ45 / Plint

LT-880-350 with the standard RDM remote device management protocol, supports DMX512 signal bi-directional
communication, achieves remote management of reading and writing DMX address (DMX master controller
must recognize the RDM protocol).

This compact decoder works with DMX512 console. Realize 0-100% brightness and various changing effect.

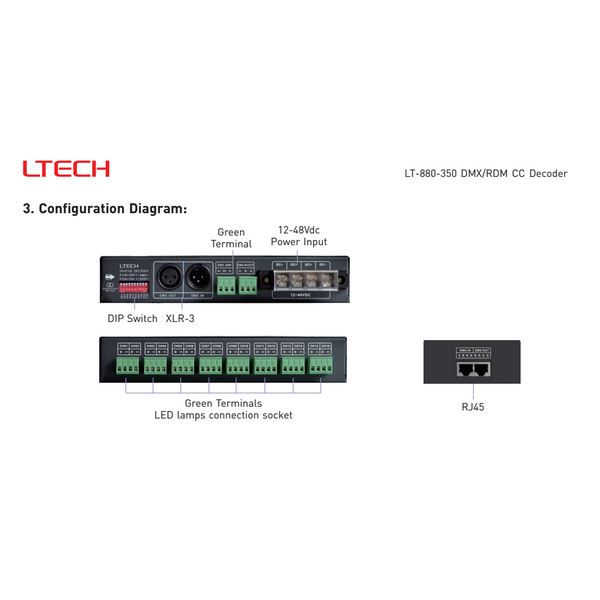

Equiped with DMX standard 3-pin XLR, RJ45 and green terminal interface, easy to operate. And it can control

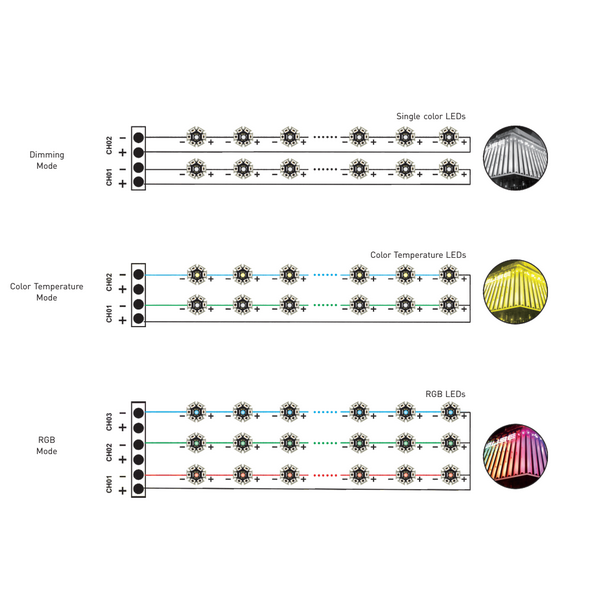

single color, bi-color, RGB LED lights.

Input signal DMX512

Input power DC12V~DC48V

Output voltage DC3V~DC42V

Max load current 350mA x16CH

Driving LEDs 1~12 pcs 1W LEDs/CH x16

Gray scale level 256 levels/CH

DMX512 socket XLR-3, Green terminal (with signal amplification function)

Dimming range 0~100%

Working temperature -30~65

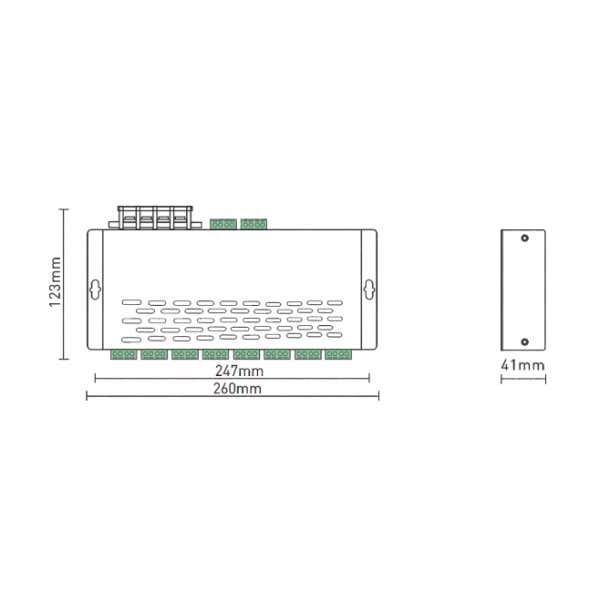

Dimension L260 x W123 x H42mm

Package Size L268 x W127 x H44mm

Weight (G.W) 950g
