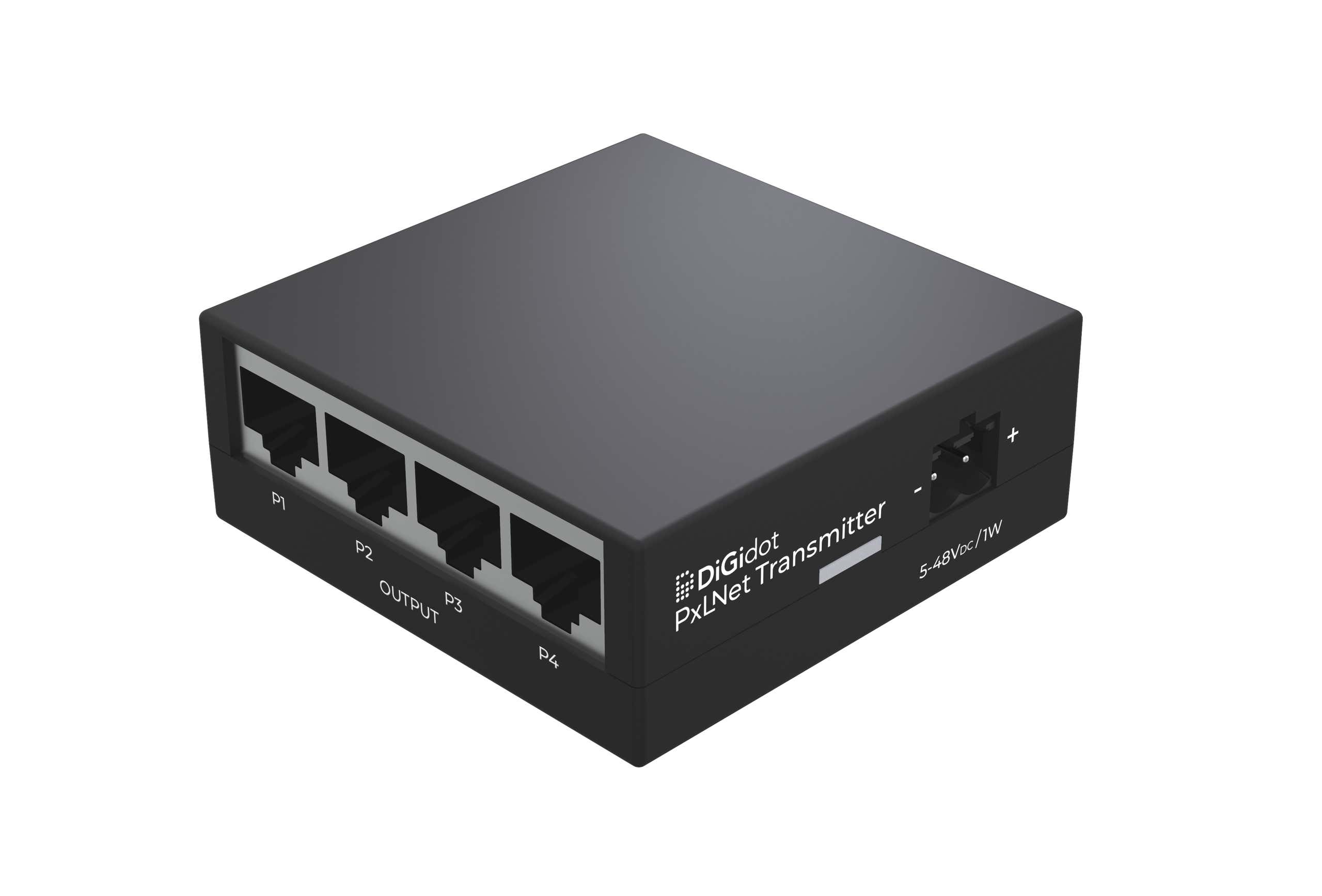

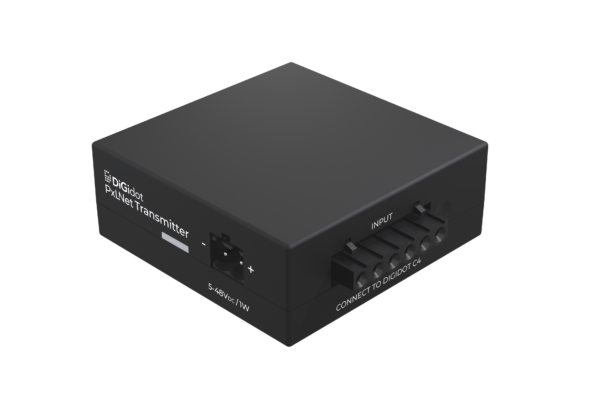

DiGidot PxLNet Transmitter Data range extender

The DiGidot PxLNet Transmitter is a data range extender that converts SPI signals to the DiGidot PxLNet protocol.
PxLNet is used to transmit SPI signals to receiver modules up to 250 meters away.

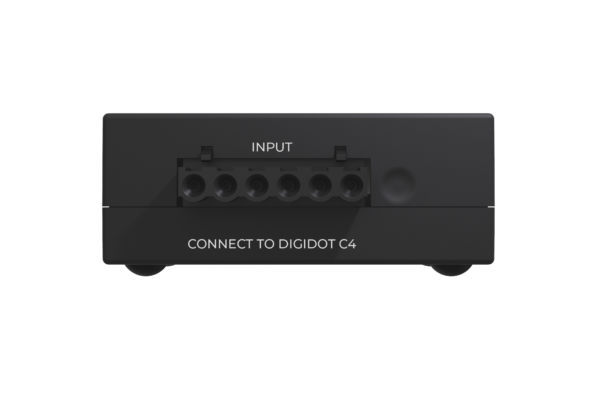

You can also use the PxLNet Transmitter to convert DMX TTL (which can be selected as output protocol in the DiGidot C4) to regular and balanced DMX512. This allows you the get four DMX universes out of the DiGidot C4 instead of two.



Note: In order to send SPI protocols you also need DiGidot receiver modules. The DiGidot PxLNet Transmitter operates at 5-48 Volts DC and automatically powers the DiGidot C4. By default the DiGidot PxLNet Transmitter can only be used for Data only SPI protocols (Not for Data Clock).



PxLNet Transmitter Specifications:

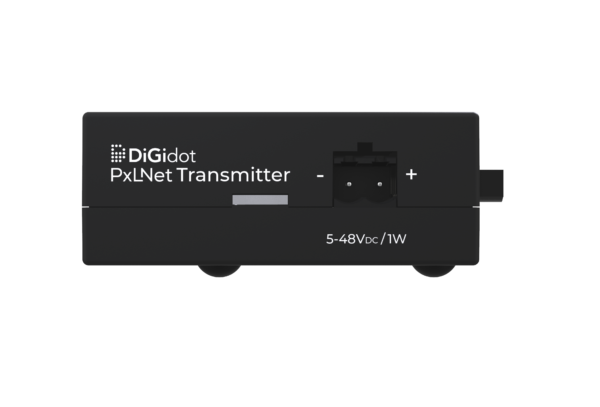

• Supply voltage: 5-48V DC

• SPI type: Data only

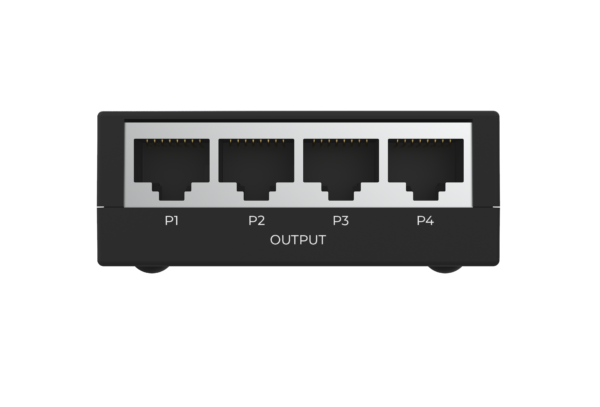

• Other protocols: 4x DMX out

• Dimensions: 43.8 x 15.8 x 15.3 mm | 1.72 x 0.62 x 0.6″ (L x W x H)

• Weight: 74gr | 2.61oz
