Avante Achromic A10 Active Speaker

The Avante A10, part of the Achromic Series from Avante Audio, is an active loudspeaker cabinet that offers powerful output, detailed audio clarity, built-in DSP and sleek exterior design. Created for musicians, bands, houses of worship, audio production companies and rental houses, the Achromic Series speakers are equally suited to permanent installation as they are to one-off and touring productions.



Speaker

• 10-inch, 2-way active loudspeaker

• Driver Information: 10” Woofer w/2” Voice Coil. 1” HF Compression Driver

• Output (Peak SPL @1M): 121dB



Coverage

• Nominal Coverage: 90° x 60°

• Frequency Range (-10db): 70Hz-20kHz



Construction

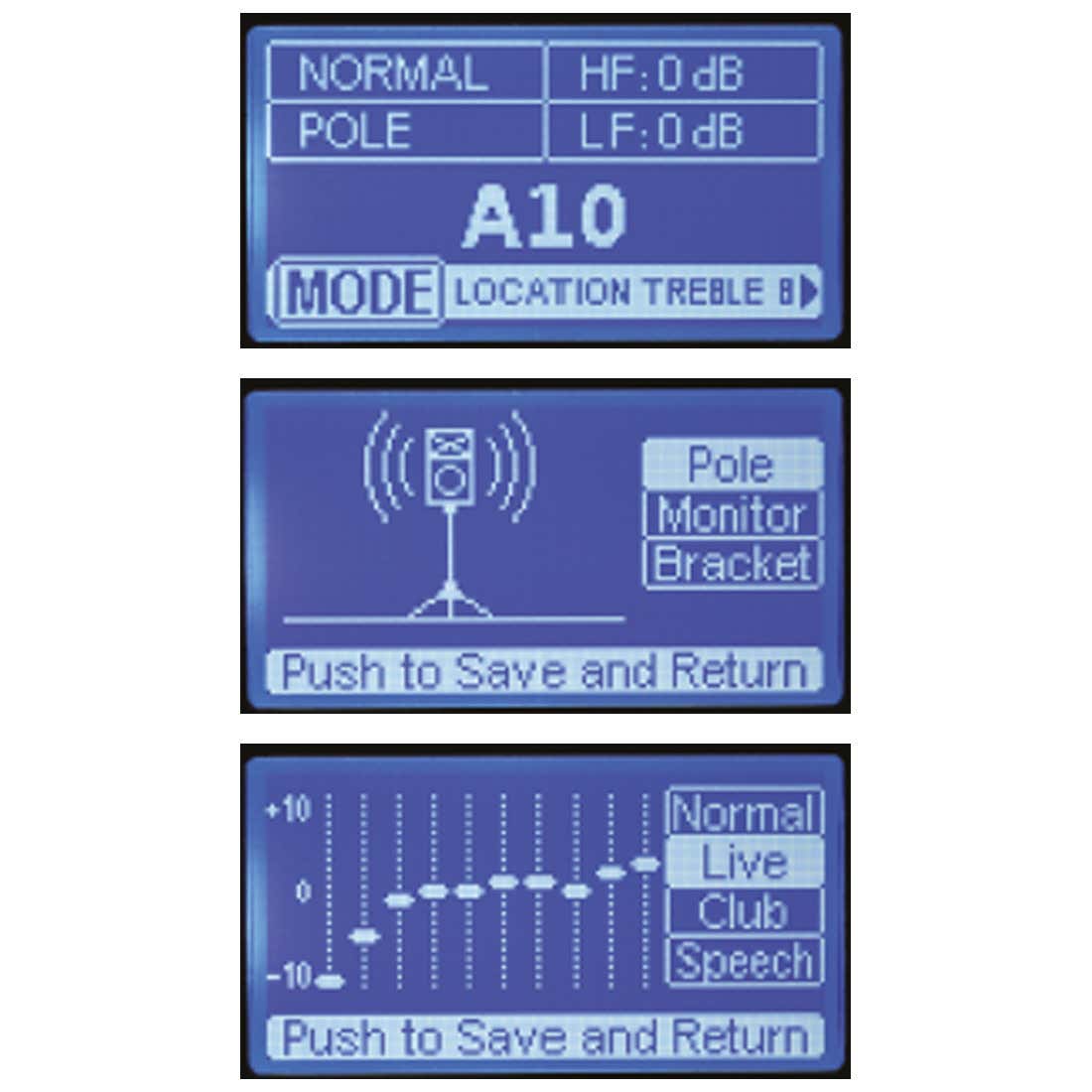

• Built-In DSP : LCD screen with EQ and multiple presets

• Enclosure: H-PP Molded

• Grill: 1.2 mm steel

• Handles: 1 handle on Top

• Fly Points: 2 M10 Fly Points on Top, 1 M10 Fly Point on the Back

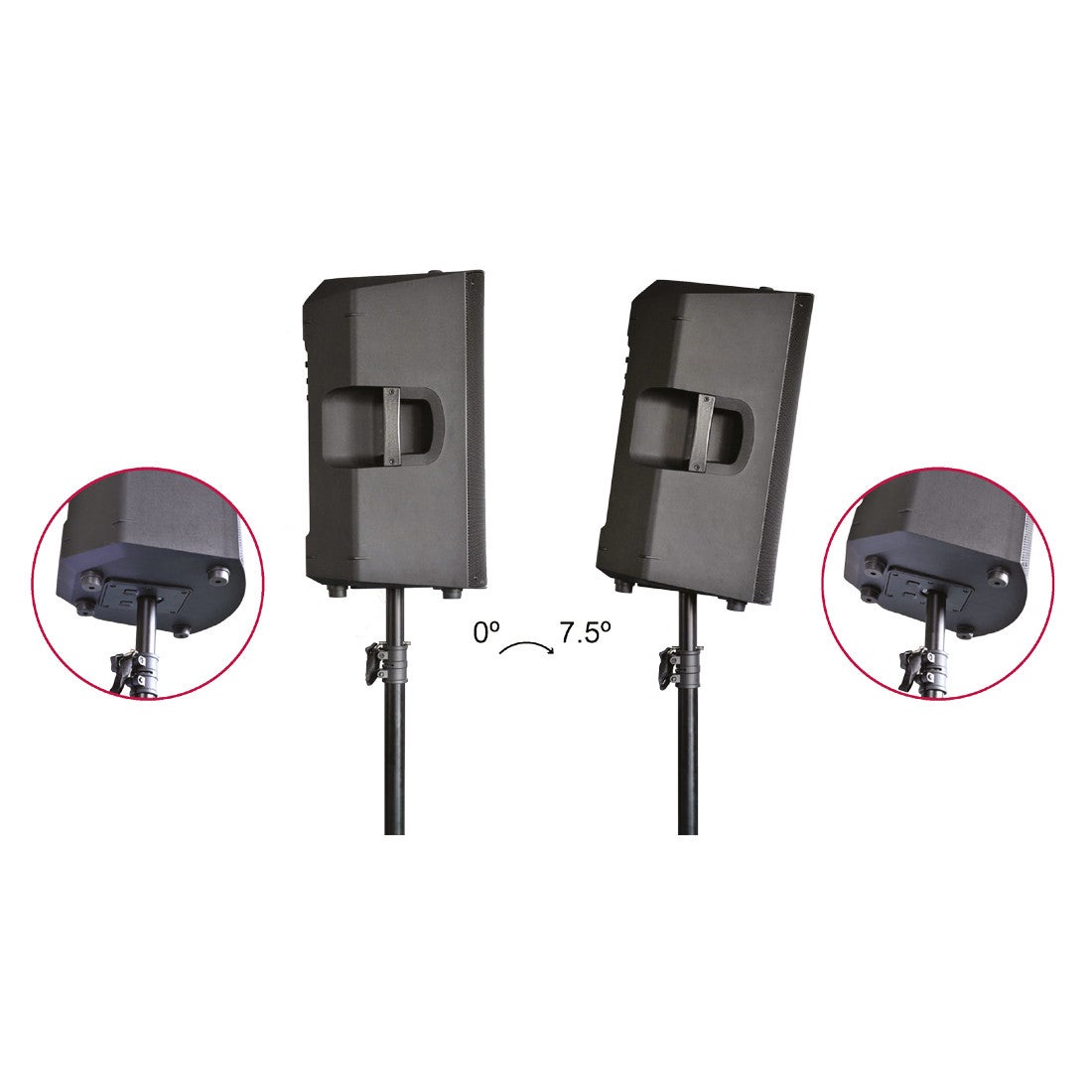

• Pole Mounting: Dual position 0° , 7.5°

• 2x Line Input Gain control on rear



Amplification

• Amplifier Power: 1000 W Dynamic

• 1x 250W Class D (LF)

• 1x 50W Class AB (HF)

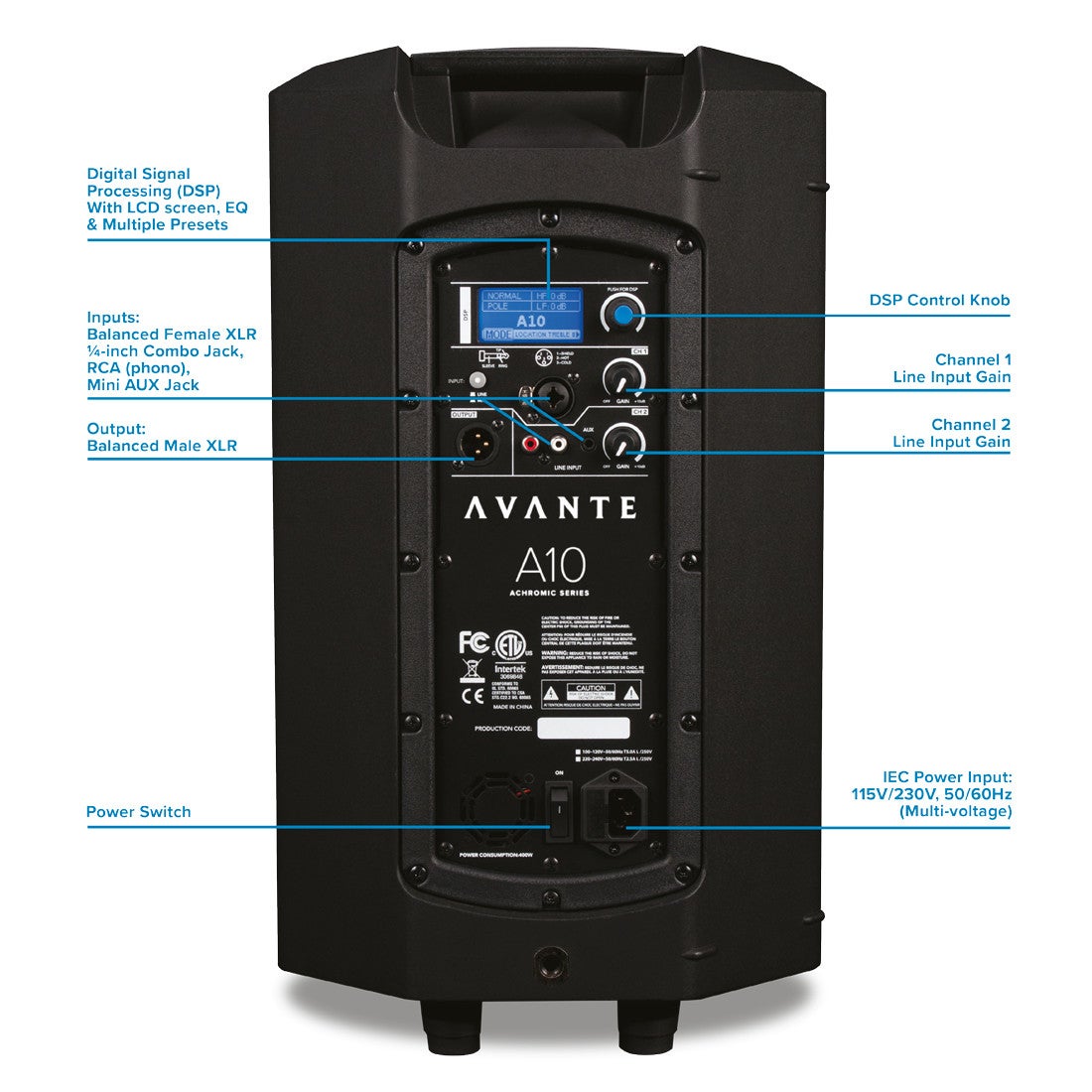

Connections

• 1 x Balanced female XLR/Jack 6.3mm combo Input

• 1 x RCA (phono) Input

• 1 x Mini-Jack 3.5mm Input

• 1 x Balanced XLR Output

• IEC Power In



Electrical

• Power Input: 120V/60Hz or 230V/50Hz

• Power Draw: 400W



Dimensions & Weight

• Dimensions: (W x D x H) 310 mm x 299 mm x 530 mm

• Weight: 11,3 kg
