Avante Achromic A15S Active Subwoofer

The Avante A15S, part of the Achromic Series from Avante Audio, is an active Subwoofer that offers powerful output, detailed audio clarity, built-in DSP and sleek exterior design. Created for musicians, bands, houses of worship, audio production companies and rental houses, the Achromic Series speakers are equally suited to permanent installation as they are to one-off and touring productions.



Speaker

• 15-inch, active Subwoofer

• Driver Information: 15” Woofer w/3” Voice Coil.

• Output (Peak SPL @1M): 126dB



Coverage

• Nominal Coverage: Omni-Direction, Cardioid

• Frequency Range (-10db): 35Hz-160Hz



Construction

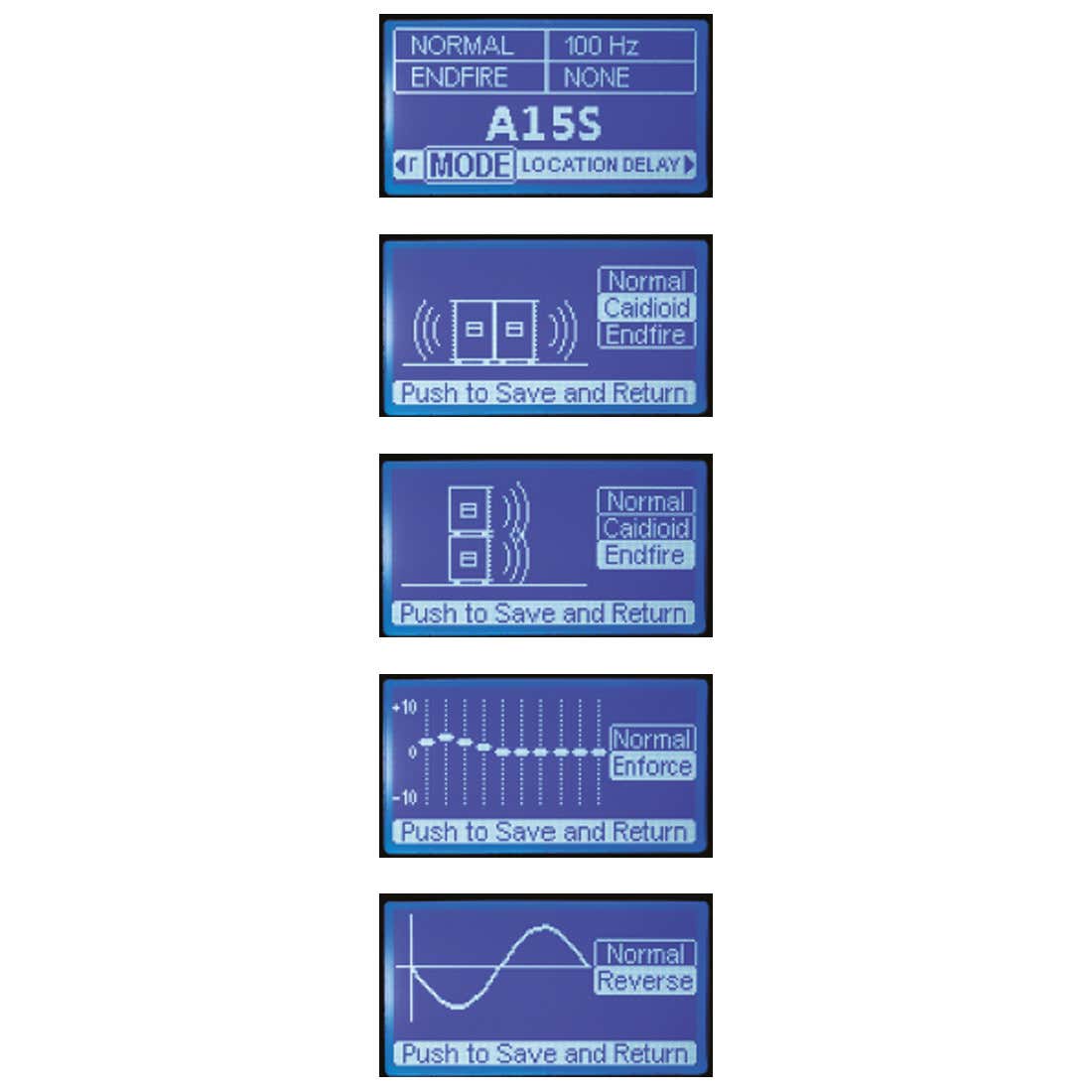

• Built-In DSP : LCD screen with EQ and multiple presets

• Normal, Cardioid and End-Fire Setups

• Enclosure: 15mm Plywood

• Grill: 1.5 mm steel

• Handles: 1 handle on each side

• Fly Points: None

• Pole Mounting: Ground Stack

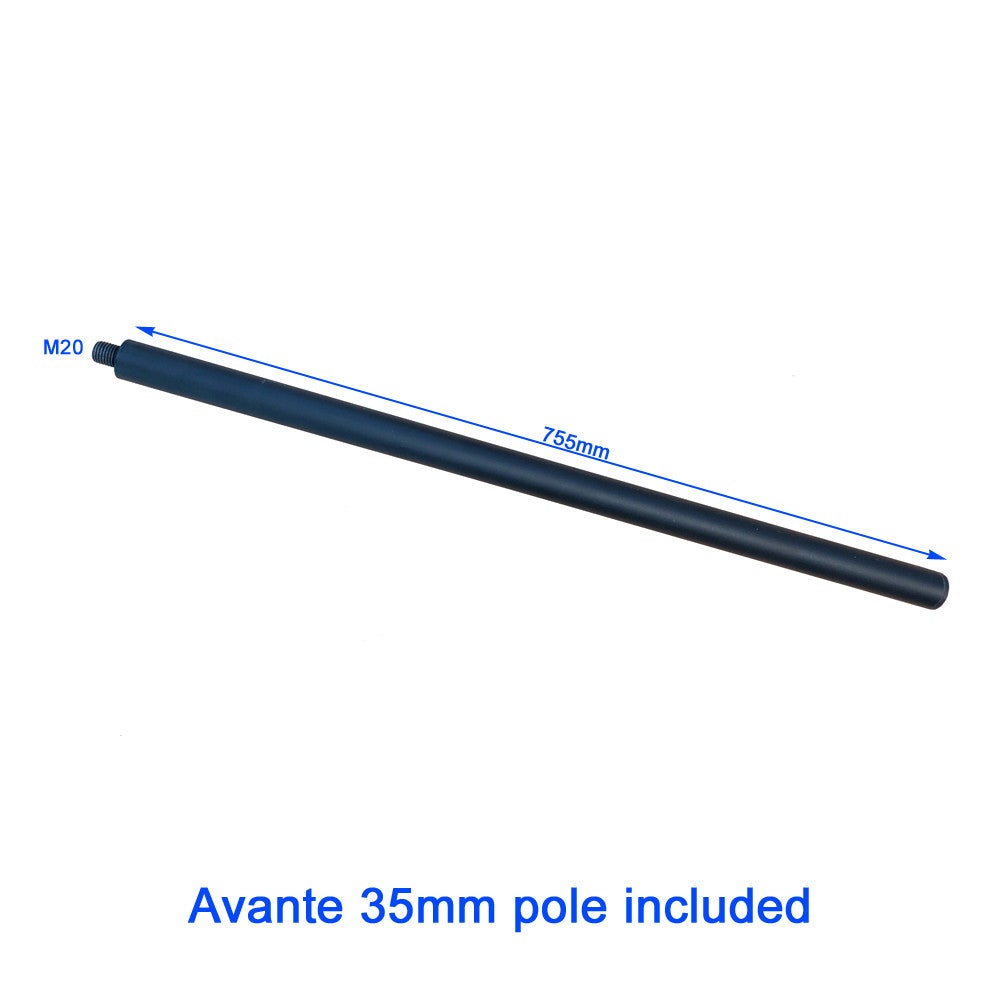

• Threaded M20 Standard 35mm Speaker Pole included



Amplification

• Amplifier Power : 1000 W Dynamic

• 1x 500W RMS Class D

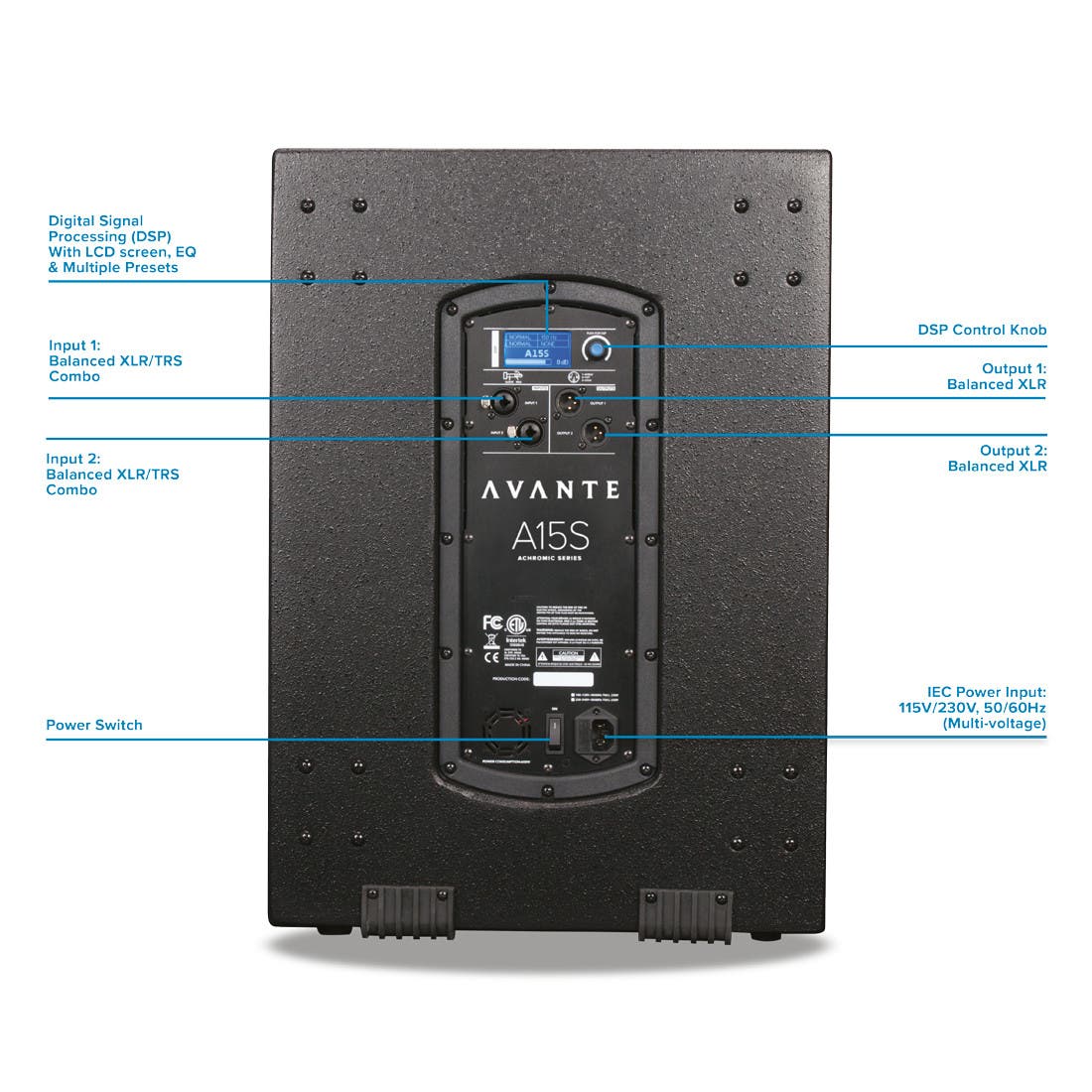

Connections

• 2 x Balanced female XLR/Jack 6.3mm combo Input

• 2 x Balanced XLR Output

• IEC Power In



Electrical

• Power Input: 120V/60Hz or 230V/50Hz

• Power Draw: 600W





Dimensions & Weight

• Dimensions: (W x D x H) 430mm x 607mm x 612mm

• Weight: 25,9 kg
