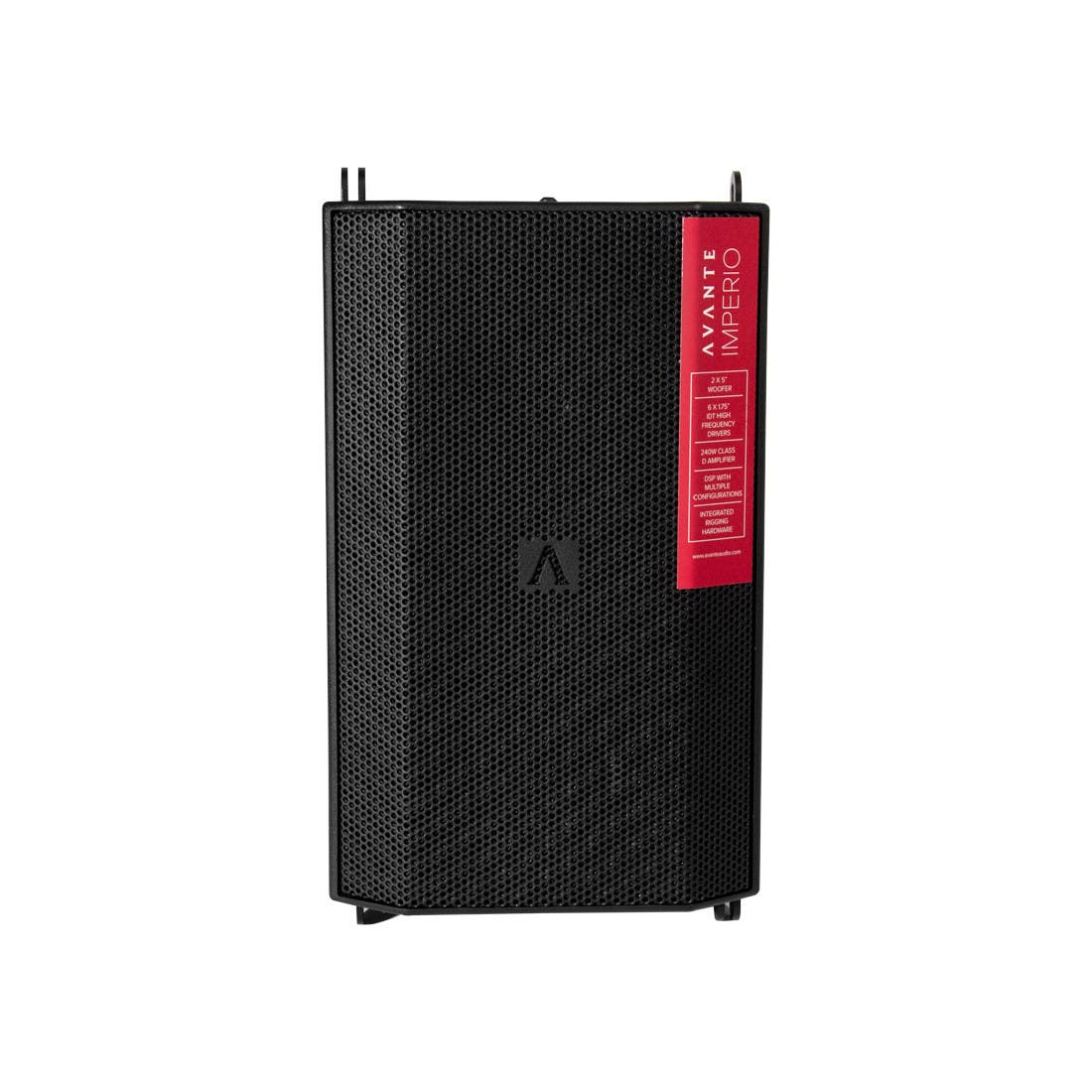

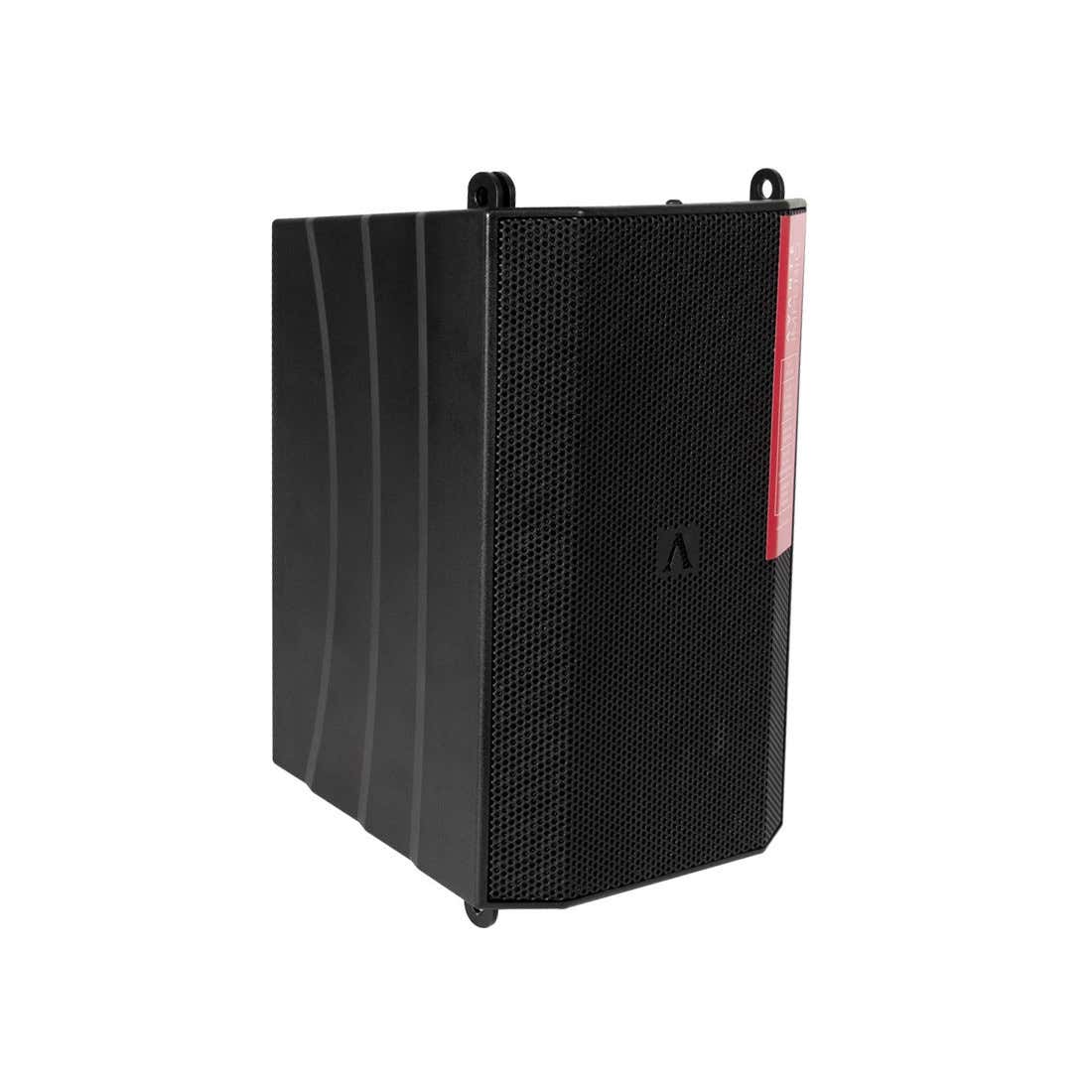

Avante Imperio

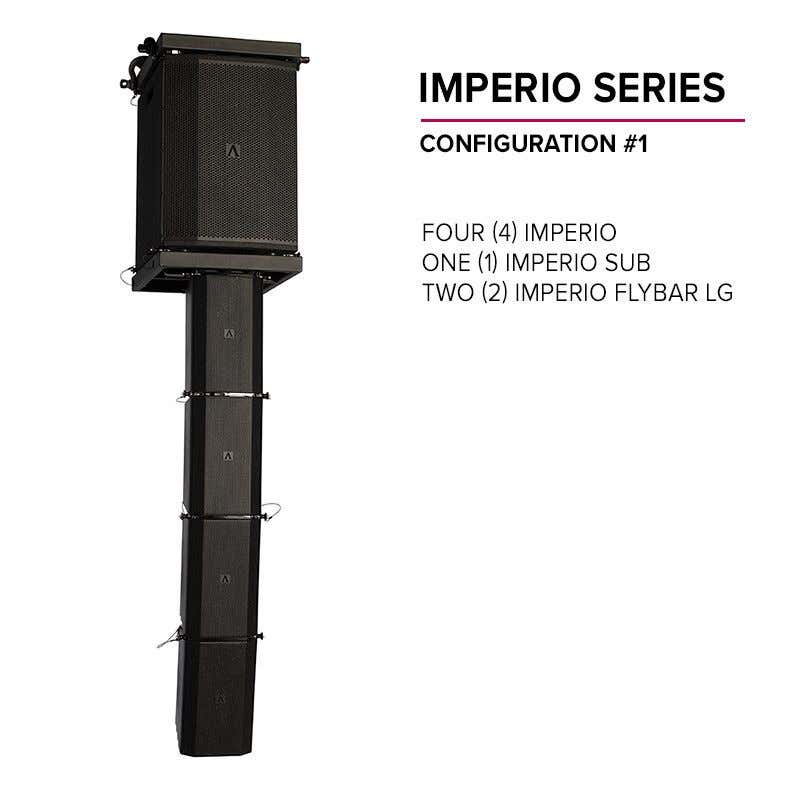

240W RMS Class D Power Amplifier with dual 4.75" woofers. Part of the Imperio Mini Line Array Series.

 AMPLIFIER:

• 240W Class RMS D Amplifier Module

• Switching Power Design

• LED Power / Signal / Clip Indicator

• 24-bit DSP Selectable Configurations

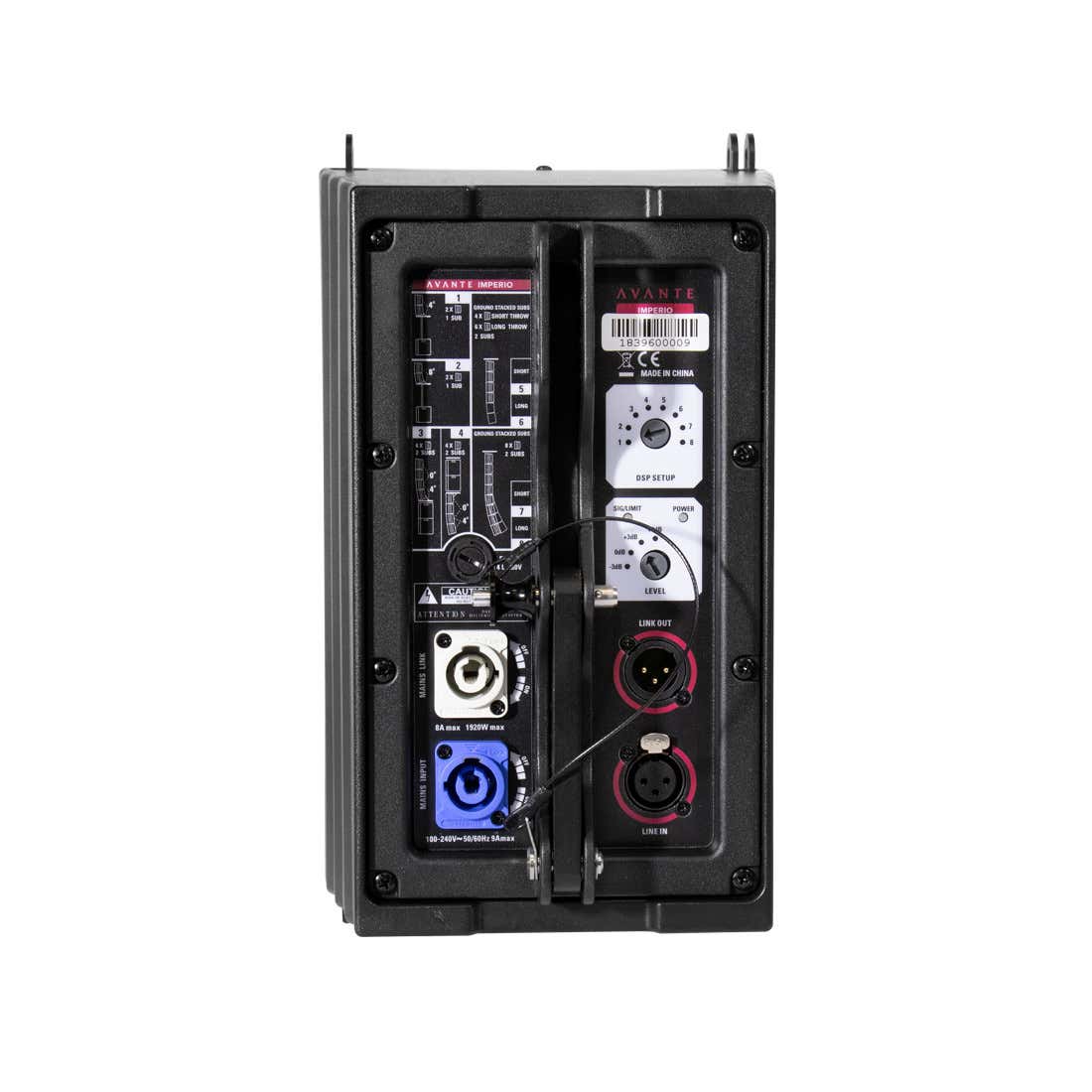

• Input: 1x 3pin XLR / Power Twist (NAC3FCA)

• Output: 1x 3pin XLR Power Twist (NAC3FCB)

• Volume: Selectable Input Sensitivity Dial

• Power Input: 100-240V ~ 50/60Hz

SPEAKER:

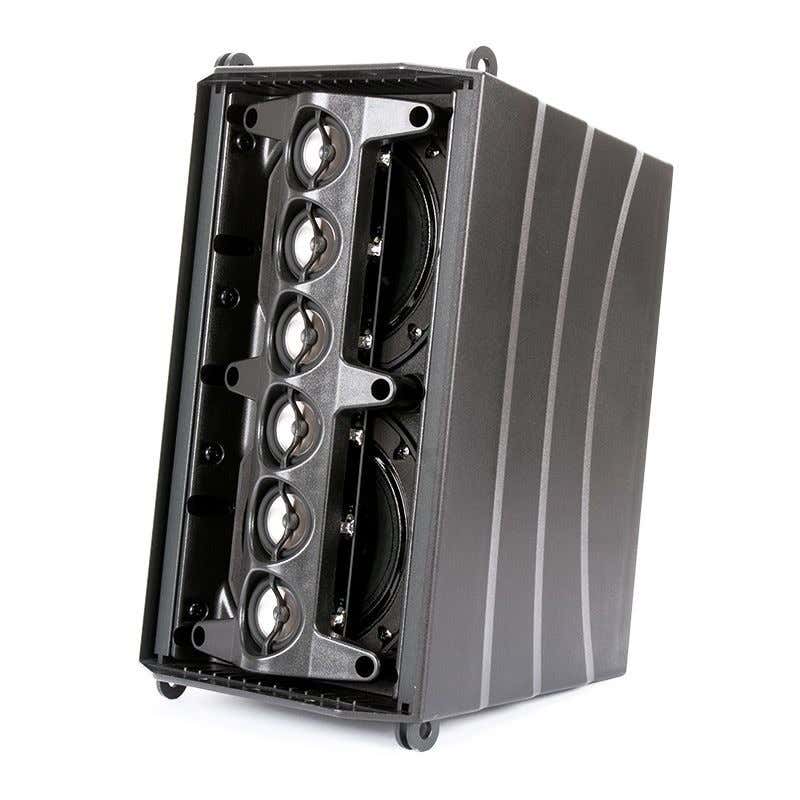

• 2x 4.75" Neodymium Woofer with 1-inch voice coil

• 6x 1.75" IDVAT HF drivers (Inverted Dome Vertical Array Technology)

• Type: 2-Way Active Closed Design

• Frequency Response: 150Hz - 20KHz

• Impedance: 4 Ohm

• Max Output SPL: 117dB (single box measured on Axis @1m)

• Selectable Input Sensitivity: -3dB, 0dB, 3dB, 6dB

• Cabinet: ABS Plastic

• Grill: 1.0mm steel

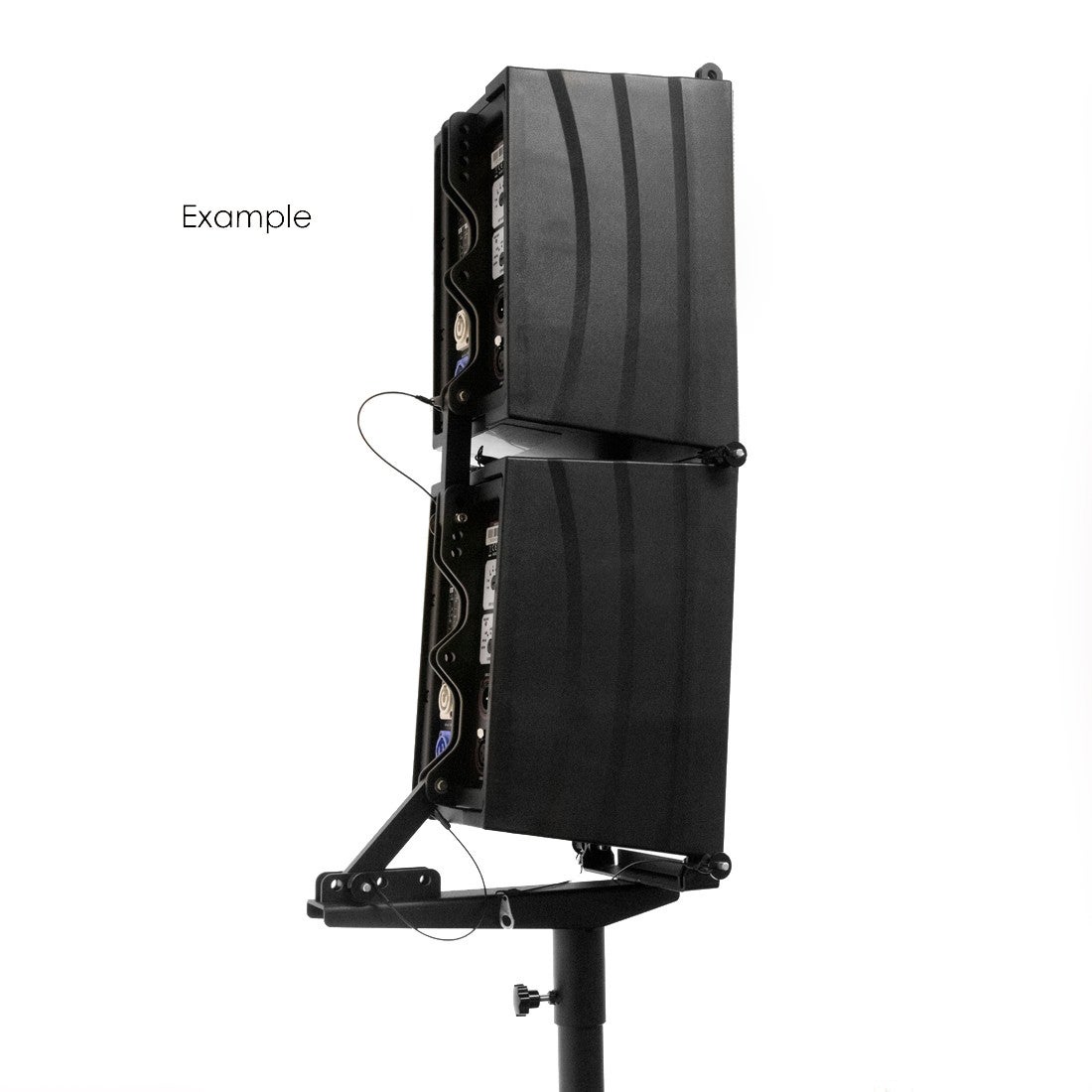

• Splay Angles: 0, 4, 8, & 12-degrees

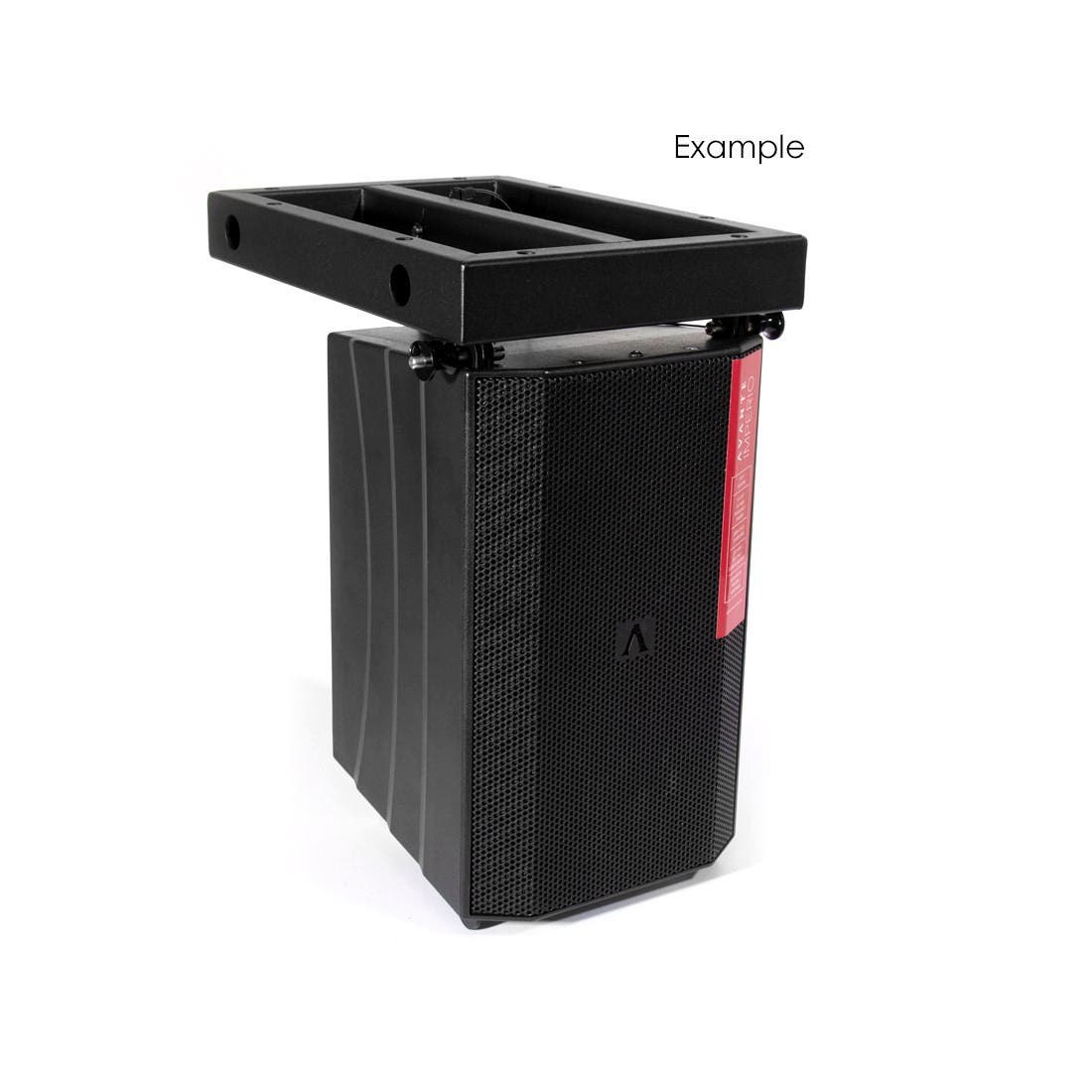

• Integrated Rigging: Yes

• Dispersion Angle: 90-degree x 15-degree

• Dimensions (LxWxH): 7.3"x8.8"x12.8" / 184.8x224x324mm

• Weight: 14 lbs. / 6.3 kg.

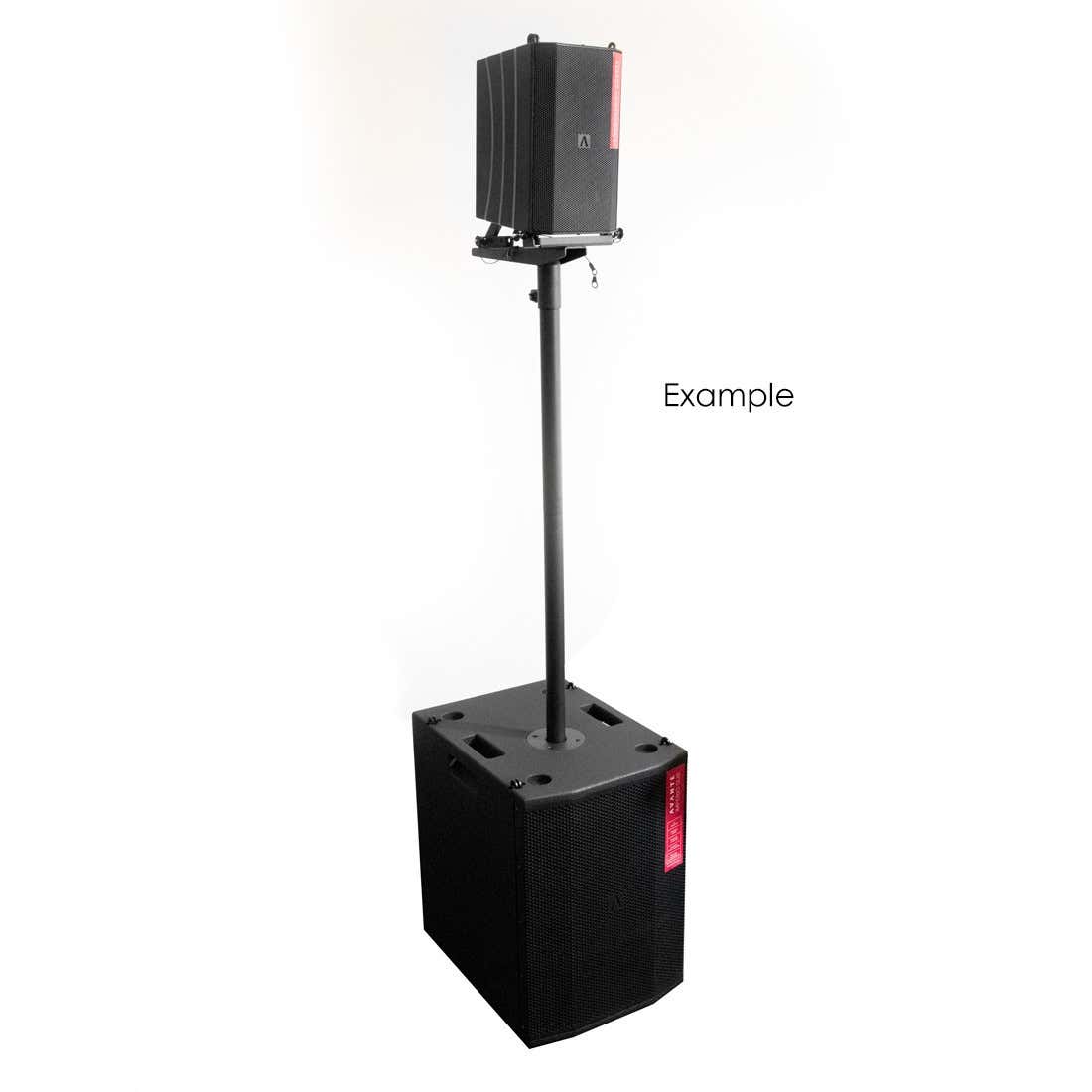

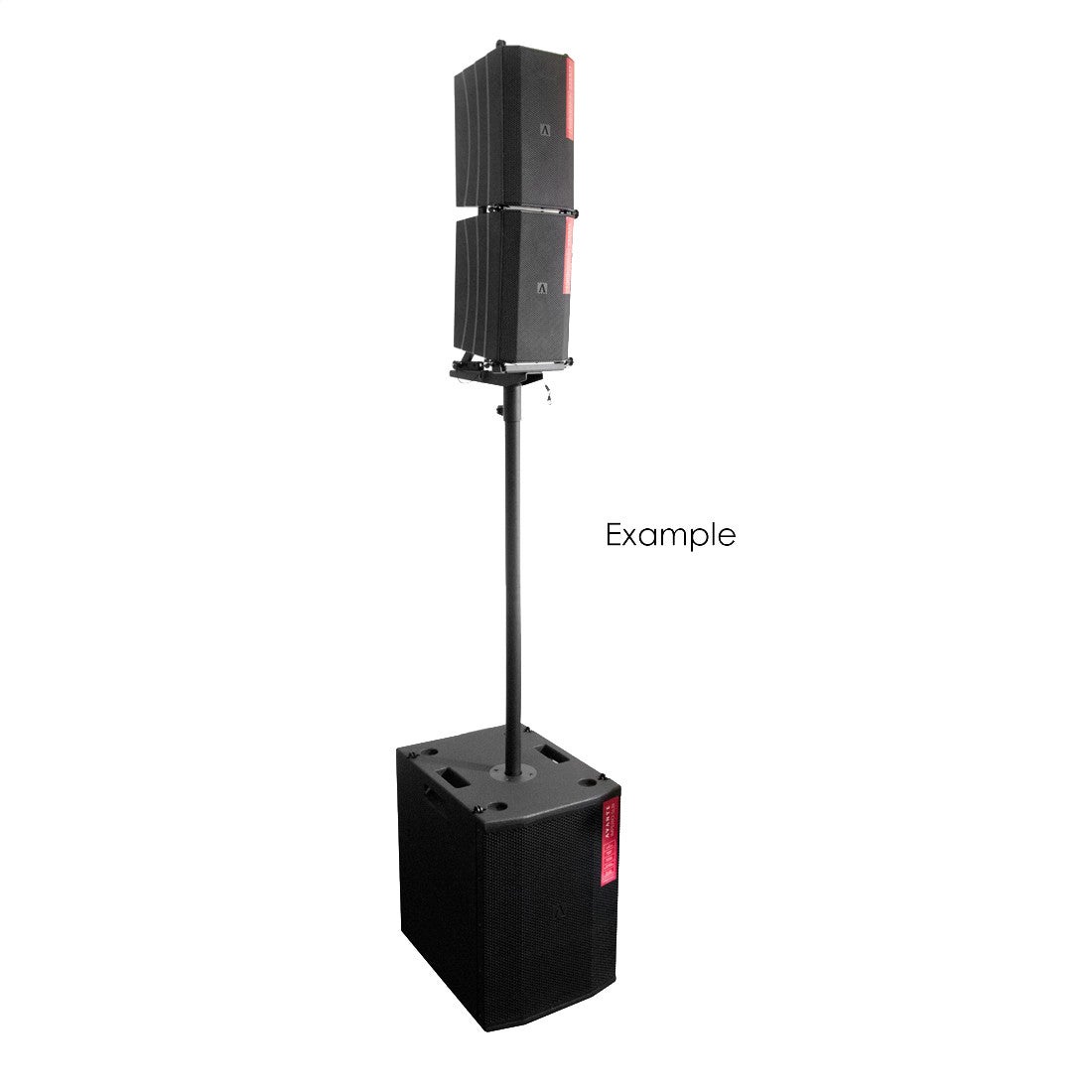

• LinkPins for connecting 2 Imperio or pole mounting included.
