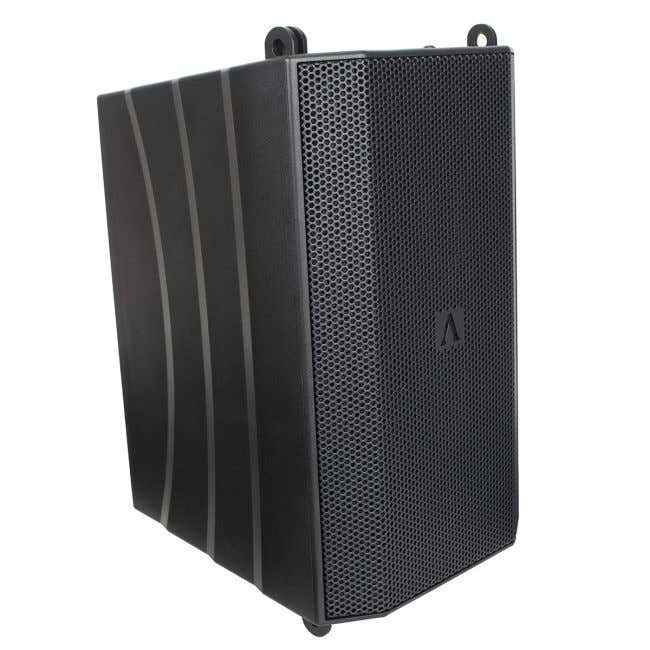

Avante Imperio Pro
The Imperio Pro Series builds on the success of Avante Audio’s original Imperio Series. Designed for very fast deployment and versatility, the Imperio Pro is a light-weight compact, high output active line array system fully equipped with neodymium components: Dual 5-inch Low-Mid transducers and Six 1.75" IDVAT HF drivers (Inverted Dome Vertical Array Technology). Each array module is driven by a 440W RMS (1700W Peak) Class-D Power Amplifier with PFC Switching power supply.
Imperio Pro features include: 32-bit DSP with advanced FIR digital filter technology. Controls include selectable DSP and input sensitivity. Rigging offers seven Splay Angles: 0, 2, 4, 6, 8,10, & 12-degrees. The Imperio Pro cabinets can be configured as a flown array with the sub on top or ground stacked on subs.
Imperio Pro accessories include: Imperio Flybar LG (Code: 1163900015), Imperio Flybar Small (Code: 1163900014), Imperio Pole (Code: 1163900016) and Link-pin 4 (Code: 1163900013), Imperio Pro T-Adapter (Code: 1163900034).
AMPLIFIER:
- 440W RMS, 1700W Peak Class D Amplifier Module
- Switching Power Design
- LED Power / Signal / Clip Indicator
- 32-bit DSP with FIR digital filters
- Selectable System Configurations

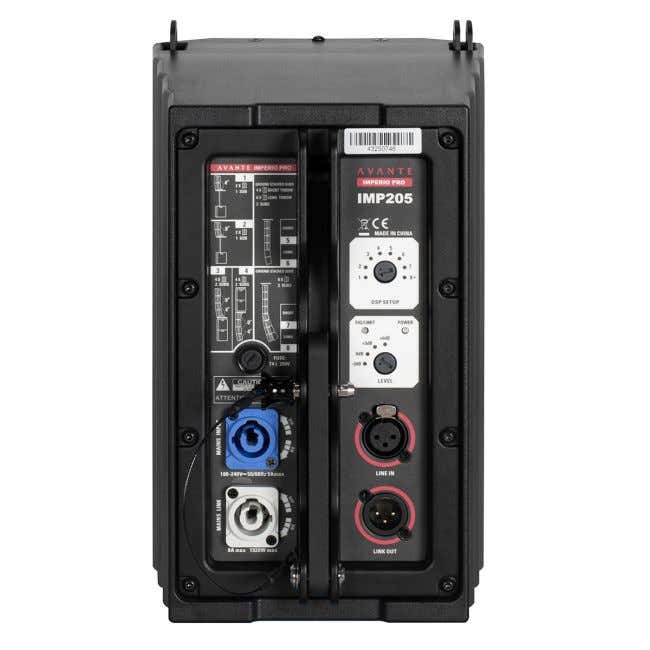

- Input: 1x XLR and Locking Power Connector
- Output: 1x XLR and Locking Power Connector
- Gain: Selectable Input Sensitivity
- Power Input: 100-240V ~ 50/60Hz
SPEAKER:
- 2x 5.0" Neodymium Low-Mid transducers.
- 6x 1.75" IDVAT HF Neodymium drivers (Inverted Dome Vertical Array Technology)
- Type: 2-Way Active Closed Design
- Frequency Response: 100Hz – 20KHz
- Max Output SPL: 128dB (single box measured on Axis @1m)
- Selectable Input Sensitivity: -3dB, 0dB, 3dB, 6dB
- Cabinet: ABS Plastic
- Grille: Powder coated Steel

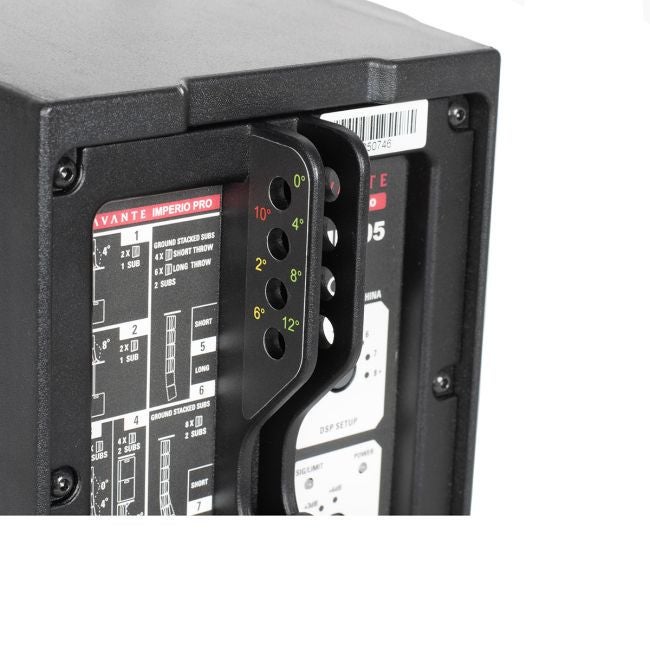

- Splay Angles: 0, 2, 4, 6, 8,10, & 12-degrees
- Integrated Rigging: Yes
- Horizontal Dispersion Angle: 100⁰
- Dimensions (HxWxD): 324x184.8x224mm
- Weight: 5.6 kg.
