Antenna Distribution System R-14D

Antenna distributor (470 - 900 MHz)

• Active antenna distributor for operating up to four true diversity UHF receivers on one pair of multi-antennas
• Improves the interference safety and enlarges the range
• Replaces the respective antennas and PSUs of the individual receivers
• Up to five antenna distributors R-14D can be connected among each other for use of 16 microphones in total
• Low-voltage outputs for supplying four UHF receivers, incl. matching DC-connection cables
• Use in the entire UHF frequency range (470 - 900 MHz)

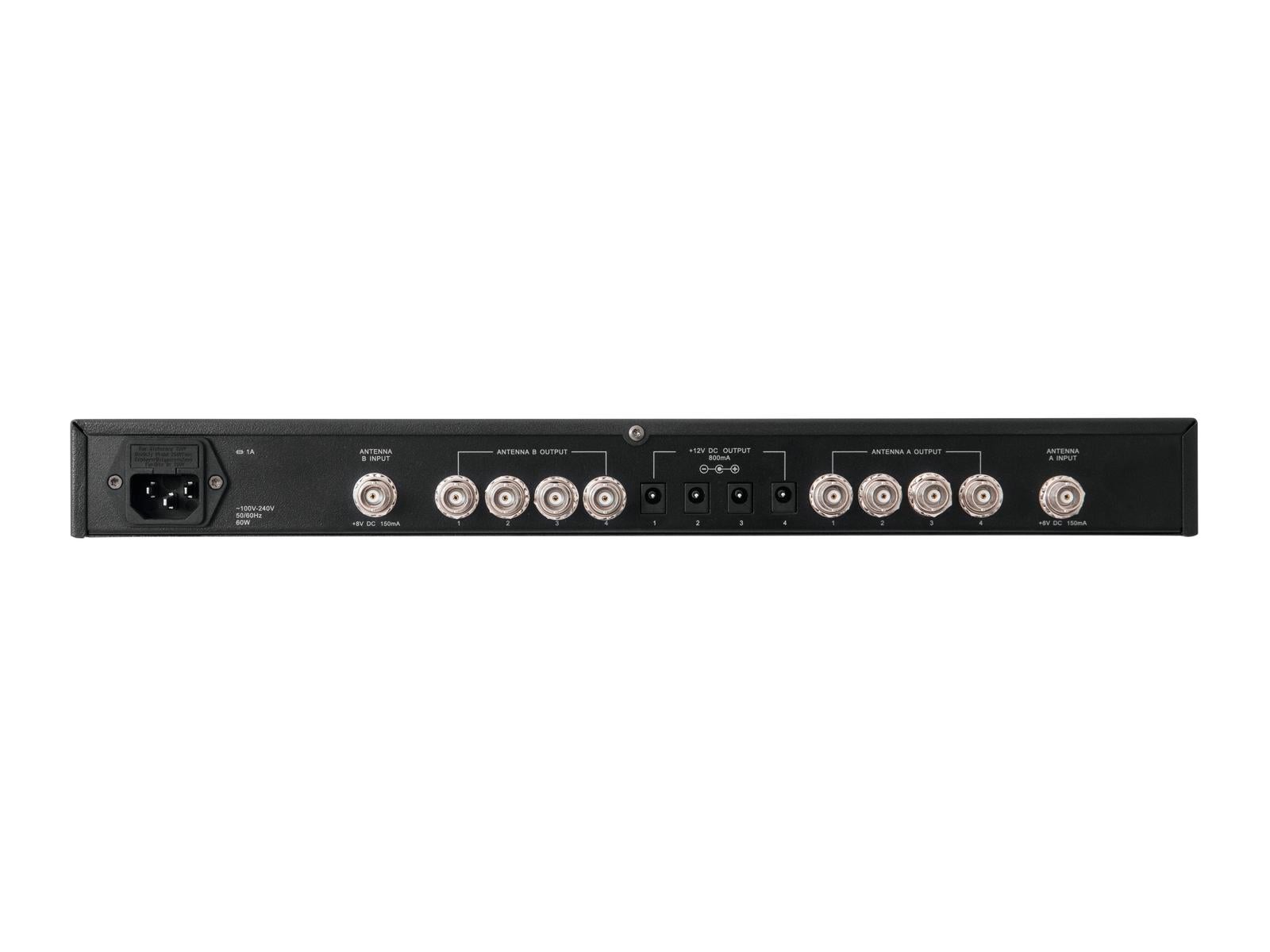

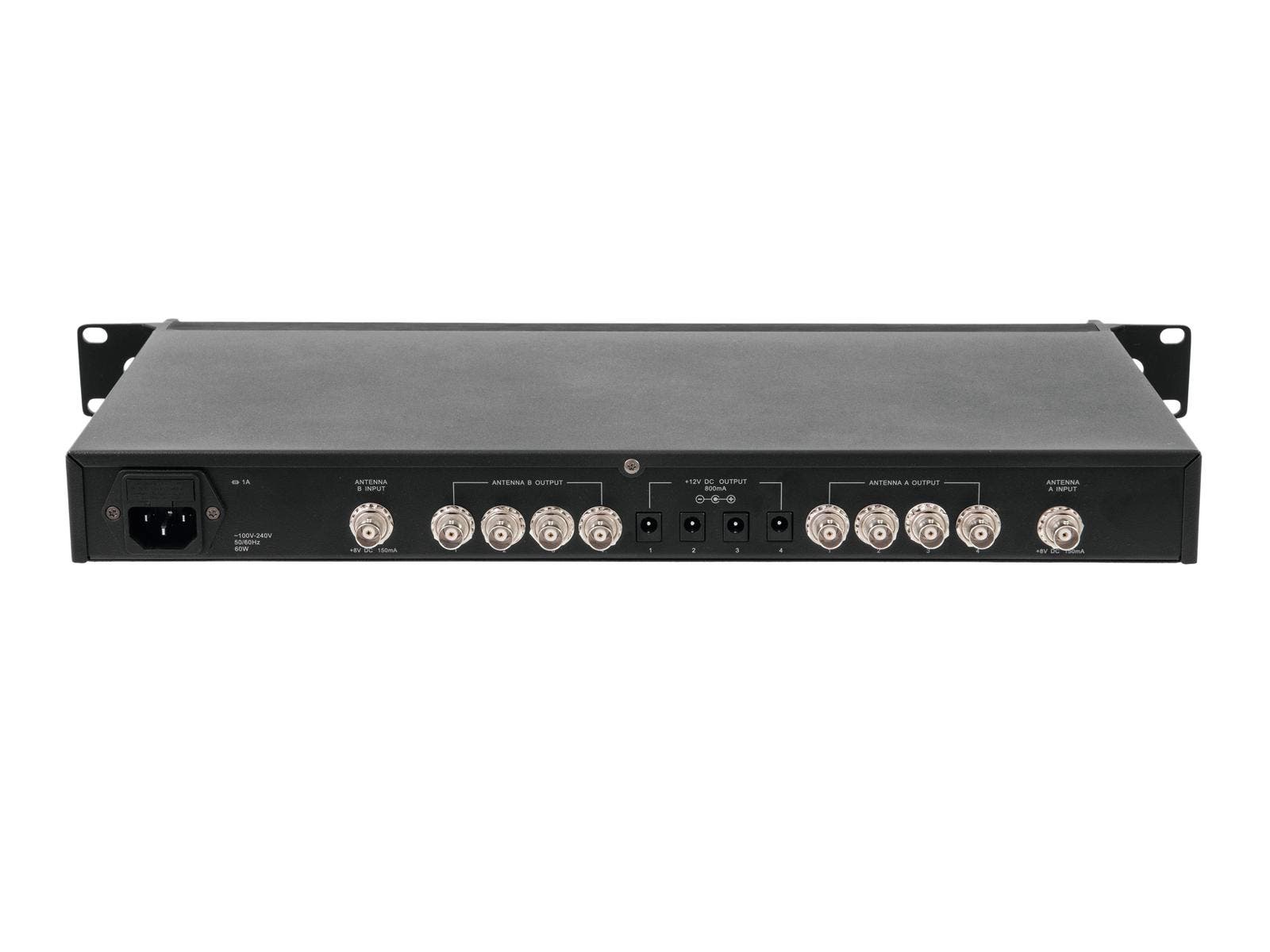

• All antenna connections via BNC jacks, incl. 10 x BNC cable
• UHF 470 - 900MHz License-free and approved in large parts of europe

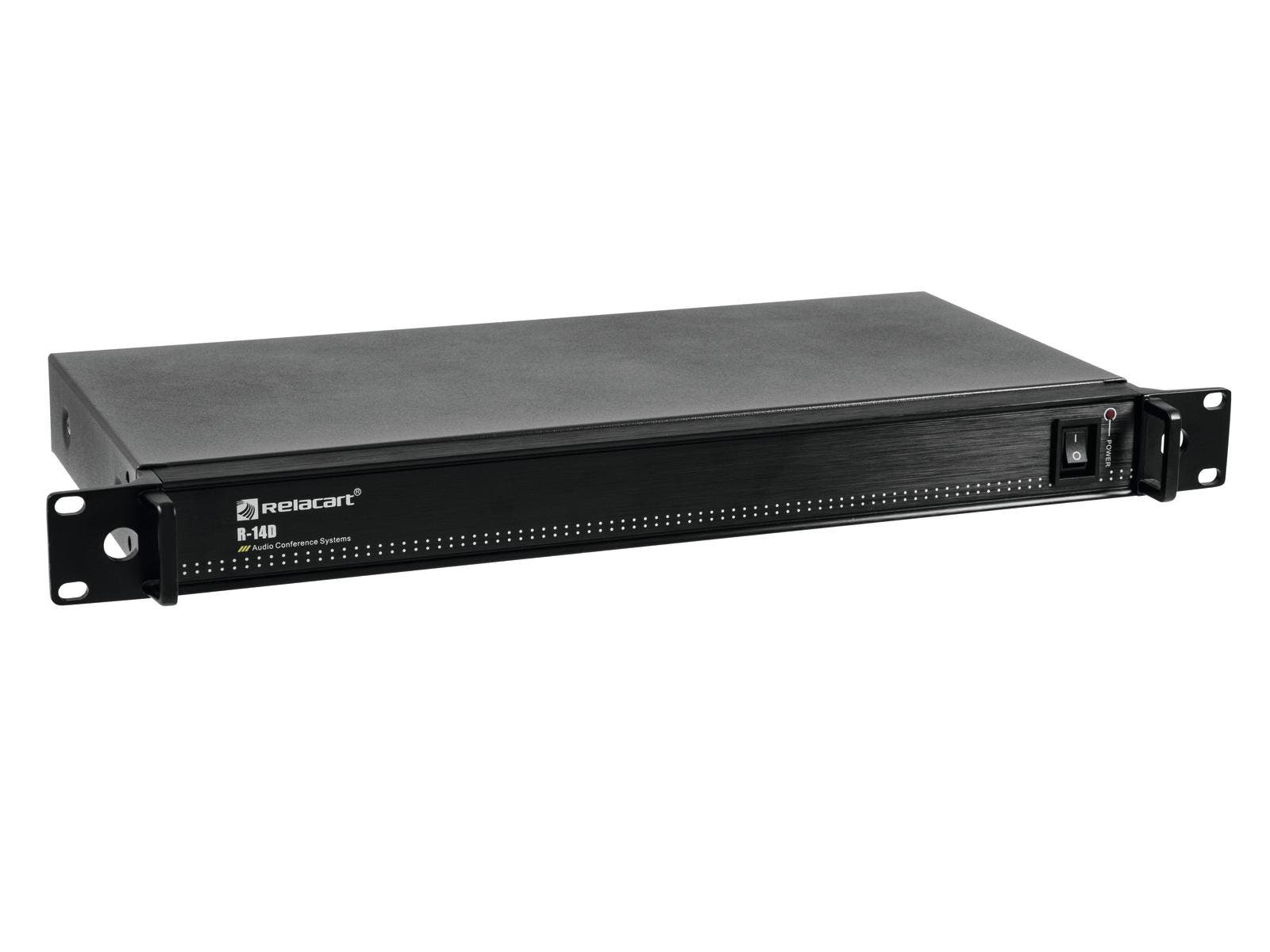

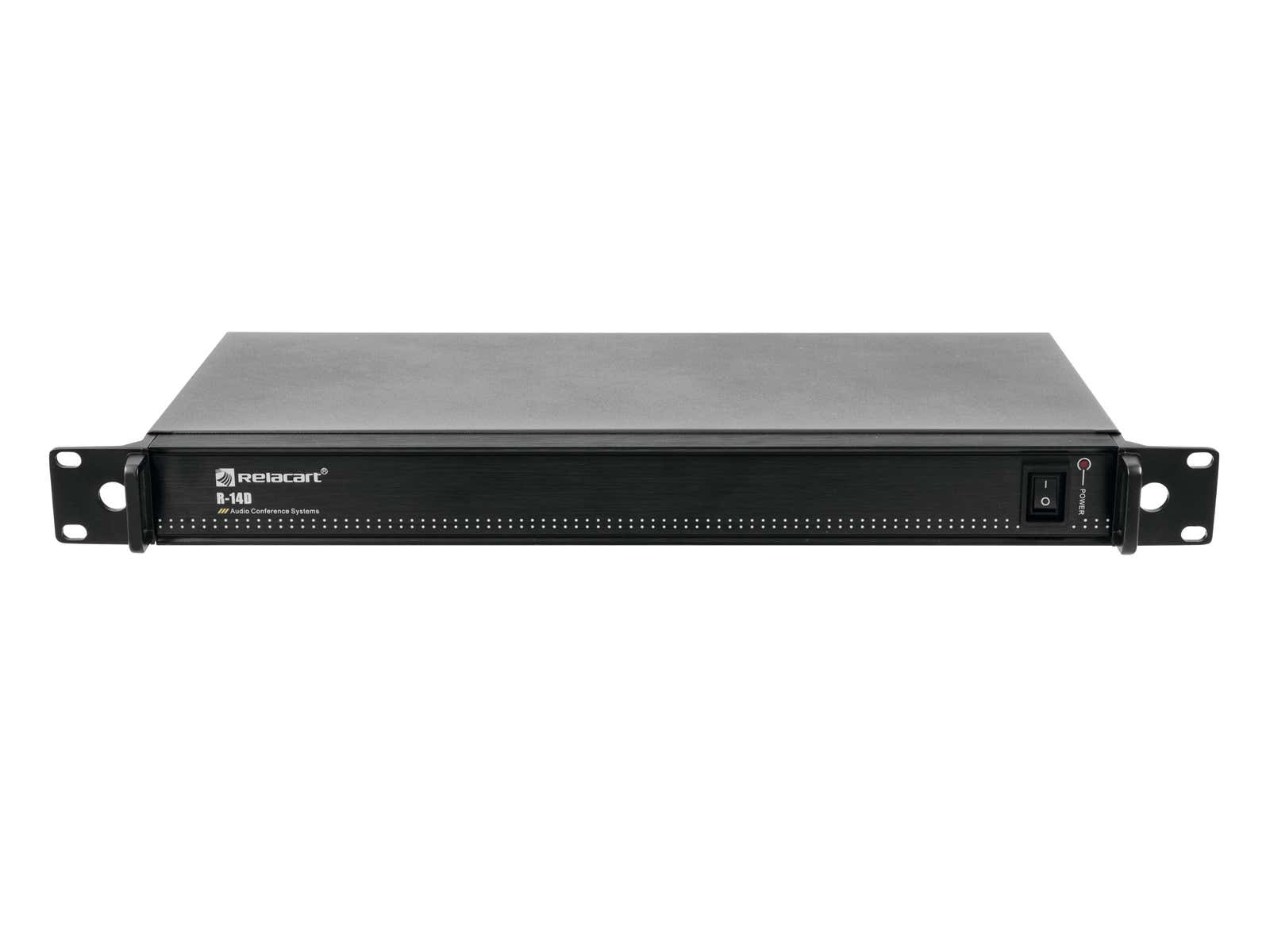

• (19") 48.3 cm rack installation

Package contents

• 1 x device, 1 x power cord, 10 x bNC cable, 4 x adapter cable, 1 x user manual, 1 x declaration of conformity
