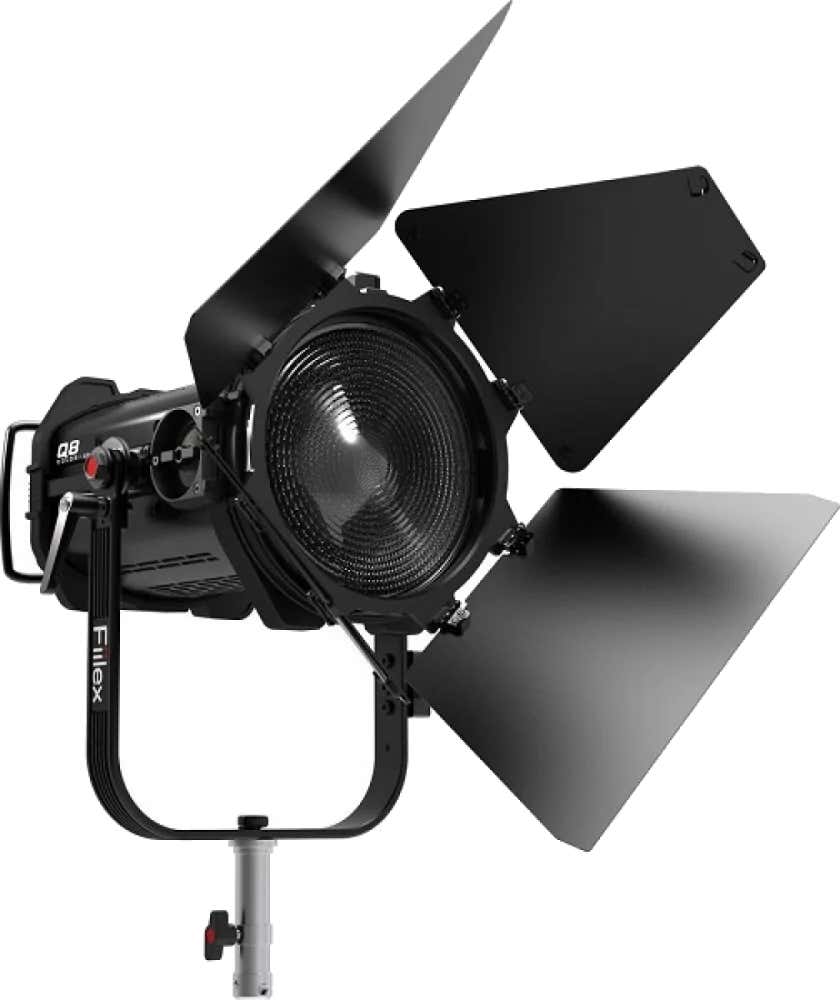

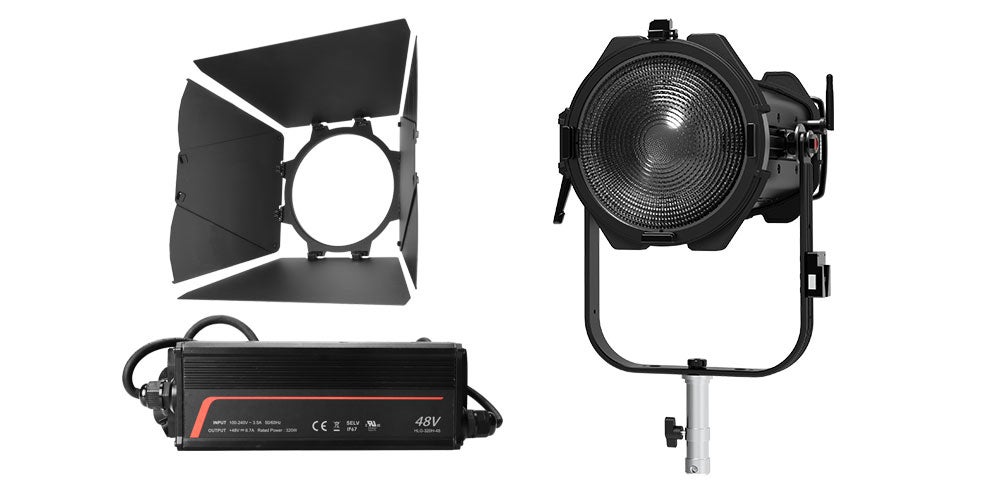

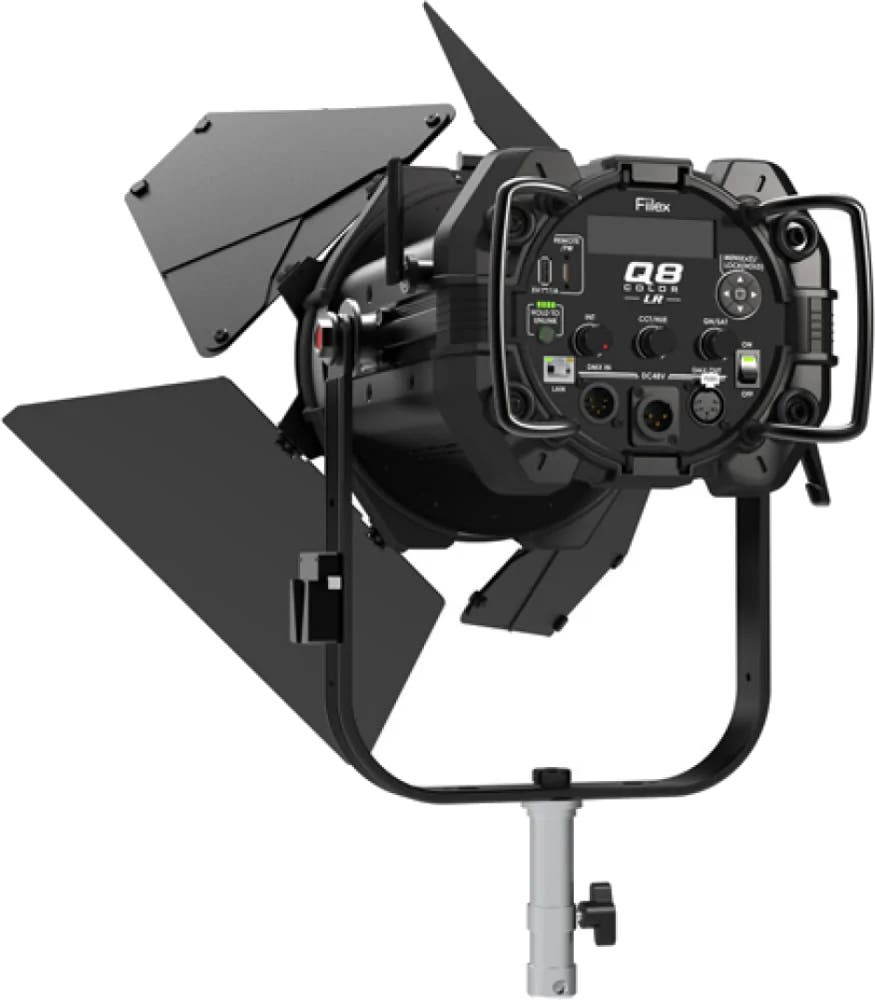

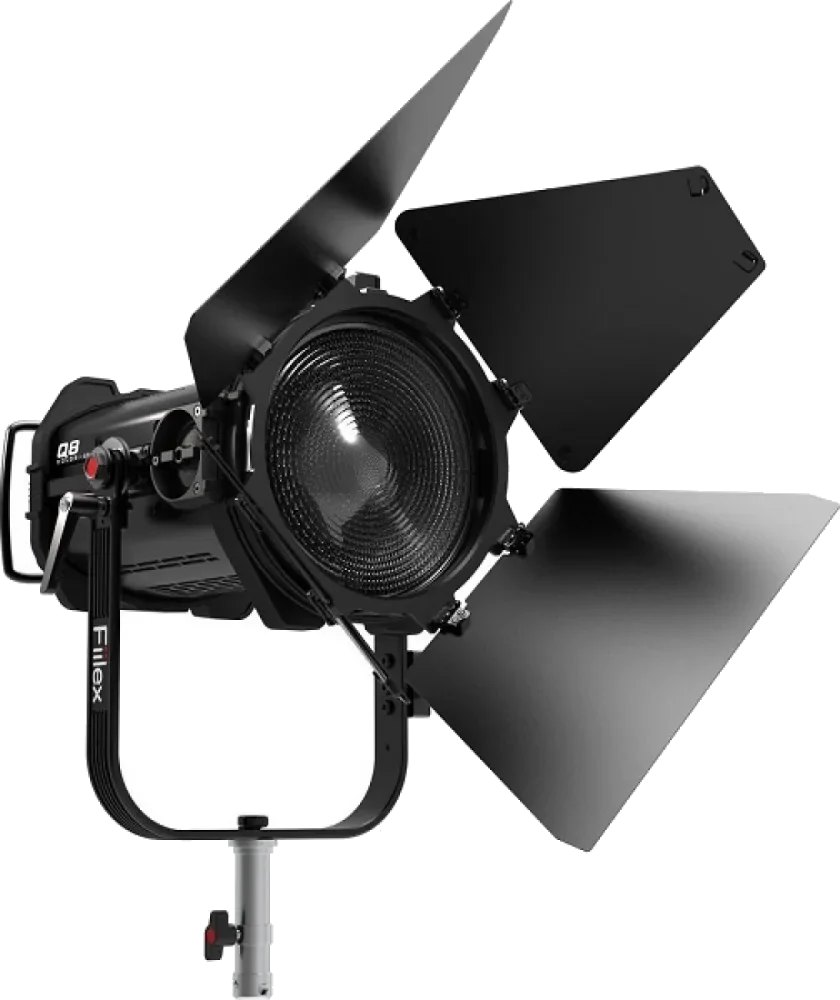

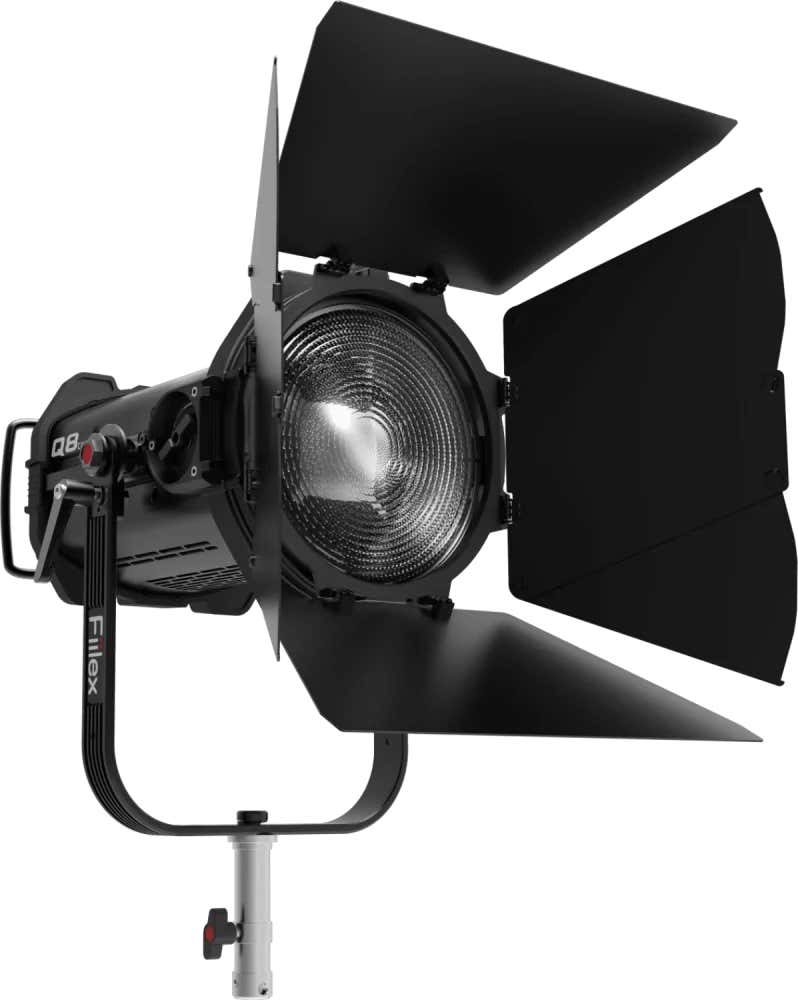

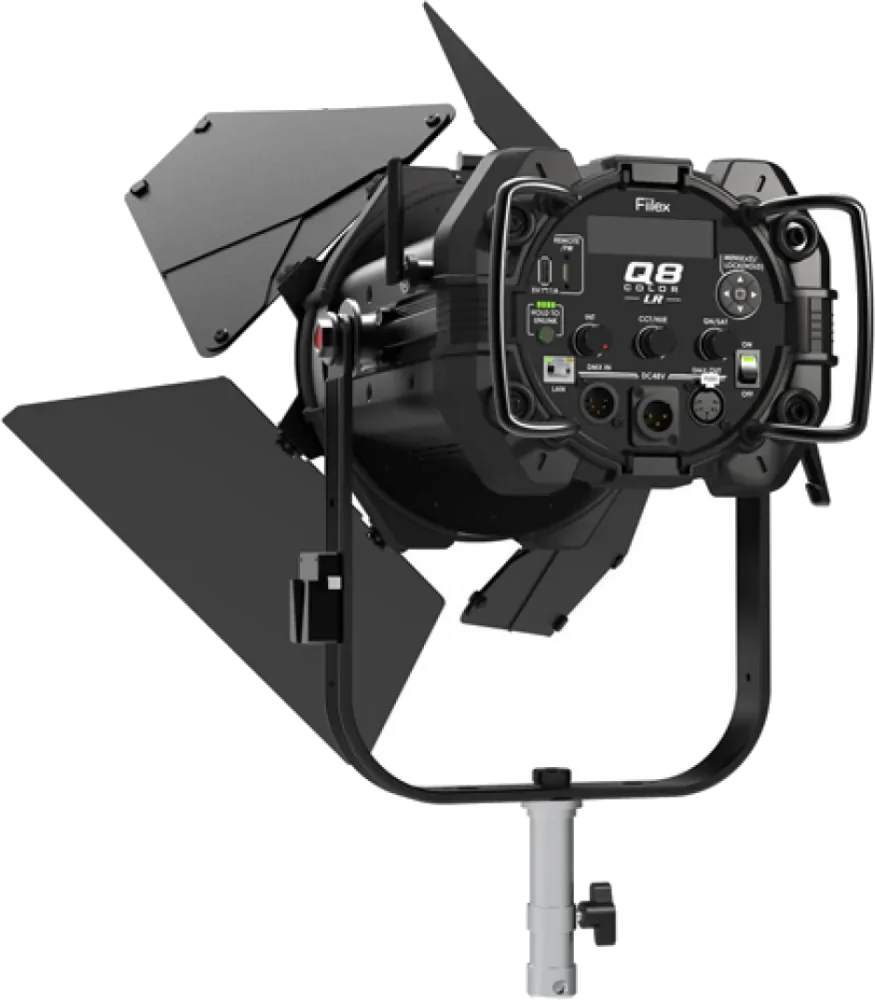

Fiilex Q8 COLOR
The Q8 COLOR is a 320W 8” LED Fresnel that generates high-quality full-color light output. This fixture uses the latest iteration of Fiilex’s Dense Matrix LED technology to deliver color fidelity and optical versatility that are superior to previous generations of LED fresnels. With an extremely wide spot/flood range, smooth dimming to 0%, no flicker, and high CRI, the Q8 COLOR combines the extensive feature set of top-tier RGBW LEDs with the performance of a tungsten fresnel.
SPECIFICATIONS
- Fresnel Diameter 8"
- Beam Angle 12°-62°
- CCT Range 2000-10000K continuous tuning + magenta/green shift
- CRI / TLCI 95 / 90 typical
- Control Modes CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
- Dimming 100 - 0% flicker free
- Dimming Modes / Curve Smooth, Sharp / Linear, Gamma
- Light Engine DiCon Dense Matrix LED
- Power Consumption 320W max AC | 300W max DC
- BTUs/hour 1091 (BTUs/hour) max
- DC Input 48V DC (via XLR-3)
- AC Input 100 - 240V AC, 50 ~ 60Hz (via powerCON TRUE1)
- DMX/RDM Port XLR-5
- Wireless Control Integrated LumenRadio CRMX
- Ethernet sACN, ArtNet (via RJ45)
- USB Power Output 5V/1A (via USB-A)
- Weight Fixture: 17 lbs / 7.7 kg (includes yoke) | Power adapter: 4.8 lbs / 2.2 kg
- Size (L x W x H) 13.6” x 12.7” x 19.6” / 34.7cm x 32.3cm x 49.9cm
- Mount Type Combo (baby stud female / junior stud male)
- IP Rating IP-X5 (water-resistant)
- Thermal Design Controllable fan
- Operating Temperature 0-40ºC / 32-104ºF
