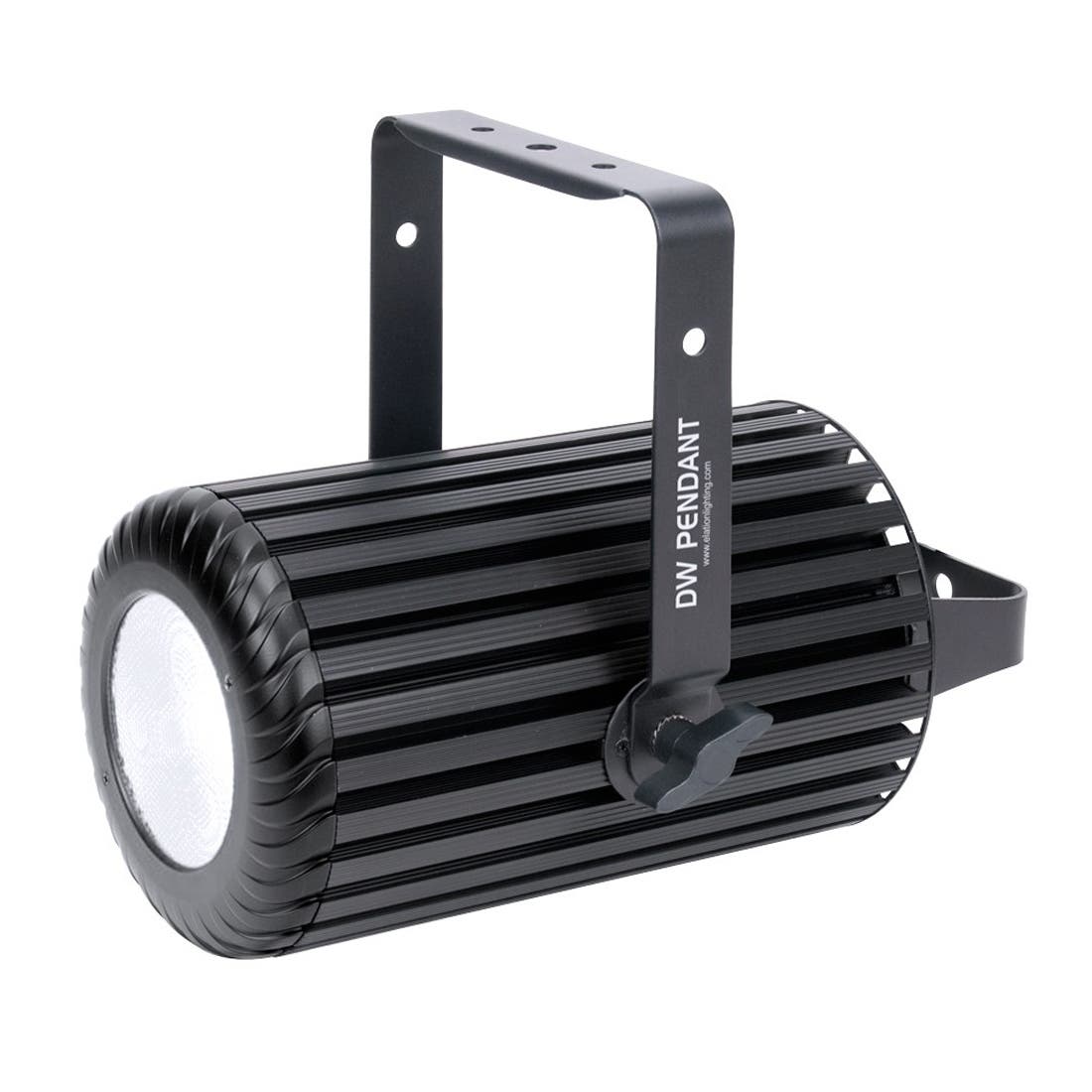

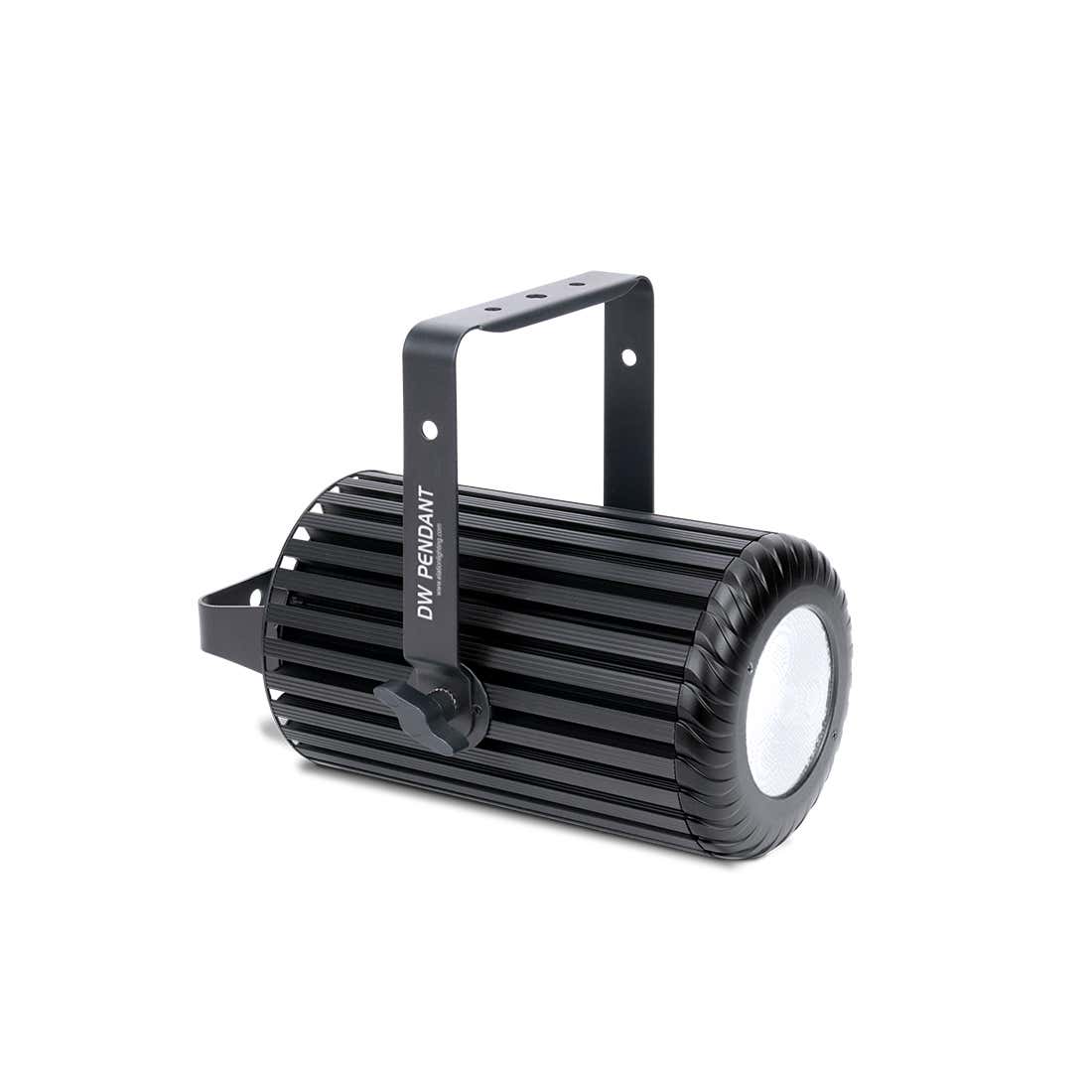

DW Pendant
The DW PENDANT™ wash luminaire features (36) 3W 2-in-1 Cool White / Warm White LEDs, a 41° beam angle, silent convection cooled operation, full color temperature range control from Tungsten (2,900K) to Daylight (6,800K), variable dimming curve modes, strobe effects, adjustable refresh frequency and gamma brightness for flicker free operation for TV and Film, DMX and RDM (Remote Device Management) protocol support, an internal E-Fly™ extended range wireless DMX transceiver, LOCKING 5pin XLR DMX in/out and power input connections, an LCD menu display with 4 button control panel, removable pendant and yoke mounting brackets, multi-voltage universal auto switching power supply (100-250v), and optional exterior shroud kits available.
FEATURES
36 x 3W 2-in-1 Cool White / Warm White LEDs
41° Beam Angle - 66° Field Angle
Silent Convection Cooled Operation
Tungsten (2,900K) to Daylight (6,800K) CT Control
Adjustable Refresh Frequency and Gamma Brightness
Flicker Free Operation for TV and FILM
E-Fly™ Internal Extended Range Wireless DMX Transceiver
Removable Pendant and Yoke Mounting Brackets
SOURCE
(36) 3W Cool White / Warm White LEDs
100,000 Hour Average Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
3,785 LUX 352 FC @3.3’ (1m) (41°Full ON)
1,003 LUX 93 FC @6.6’ (2m) (41°Full ON)
457 LUX 42 FC @9.8’ (3m) (41°Full ON)
271 LUX 25 FC @13.1’ (4m) (41°Full ON)
179 LUX 17 FC @16.4’ (5m) (41°Full ON)
EFFECTS
Tungsten (2,900K) to Daylight (6,800K) CT Control
Variable Dimming Curve Modes and Strobe Effects
CONTROL / CONNECTIONS
7 DMX Channel Modes (7 Total Channels)
Adjustable Refresh Rate
Adjustable Gamma Brightness
4 Button Control Panel and LCD Menu Display
DMX and RDM (Remote Device Management) Support
E-Fly™ Internal Extended Range Wireless DMX Transceiver
Locking 5pin XLR DMX In/Out
Locking power In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 14.7” (374 mm)
Width: 9.9” (252.5 mm)
Horizontal Height: 12.0” (308.8 mm)
Weight: 14.0 lbs. (6.4 kg)
ELECTRICAL / THERMAL
AC 100-240V 50/60Hz
110W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
