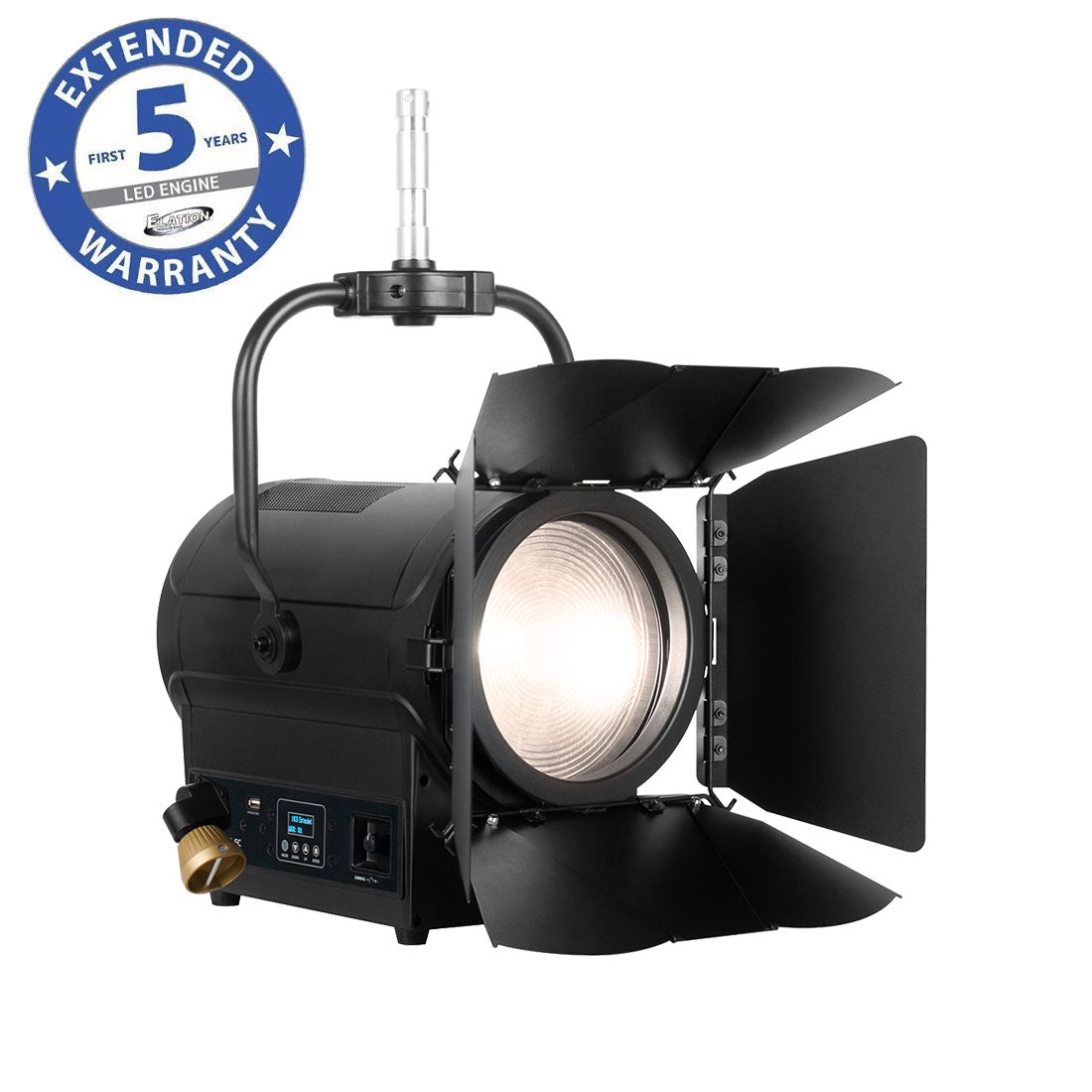

KL Fresnel 8 FC PO Polopererad

The KL Fresnel 8 FC PO is a full-color- spectrum LED fixture that provides high output, precise color temperature control, full spectrum color rendering and even wash coverage. Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality, while offering a wide array of rich saturated colors and subtle pastels.

The KL Fresnel 8 FC PO incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 18,000 field lumens with a manual Zoom range of 10° to 50°. Outstanding color rendering quality, precise CCT presets and remotely adjustable LED refresh frequency makes this unit the perfect choice for todays fast paced production environments. Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. It is fully self-contained without the need for an external power supply and offers locking power pass through for easy linking of multiple units.

The KL Fresnel 8 FC PO can be operated through industry standard DMX protocols and has full RDM support. In addition, it offers manual access using the included encoder and display, providing instant control of Intensity, Color temperature, Green shift and other important settings. The display and encoders are conveniently positioned at the bottom side of the fixture to ensure unobstructed access while mounted on a stand. With its Pole Operation of Pan, Tilt and Zoom it is ideal for fast pace working environments and immediate remote adjustments.



FEATURES

RGBMA LED Engine Dynamic White + Full Spectrum Color Control
18,000 Total Fixture Lumen Output
10° to 50° Wide Manual Zoom
Stand-Alone control with 1 Encoder and LED Display
Smooth 16-bit Selectable Dimming Modes and Curves
LED Refresh Rate Adjustment
Flicker Free Operation for TV and FILM
RDM (Remote Device Management)
Pole-Operated Pan, Tilt and Zoom control
8-leaf Barn Doors, Gel Frame and Junior Pin (28mm - 1 ⅛”) included
SOURCE

6,500K RGBMA LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA
18,000 Total Lumen Output
CRI 94.5
TLCI 94
Zoom Range 10° - 50°
Beam Angle 10.4° - 50.8°
Field Angle 20.6° - 66.1°

EFFECTS
Pole-Operated Pan, Tilt, Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR

RGBMA Color Array
CMY Emulation
Variable CCT 2,400K - 8,500K
Green/Magenta Shift
Virtual Gel Swatch Book

CONTROL / CONNECTIONS

6 DMX Channel Modes (1 to 18 channels)
Manual and DMX Controlled Dimmer and Color
Rotary Dial for Manual / Stand-alone control of Dimmer
4 Button Control Panel, LED Display
RDM (Remote Device Management)
3/5pin DMX and IP65 Locking Power In/Out Connection

SIZE / WEIGHT

Length: 383.5mm (15.1”)
Width: 334.85mm (13.2”)
Vertical Height: 498mm (19.6”)
Weight: 13kg (28.6 lbs.)
ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
522W Max Power Consumption
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 1752.74

INCLUDED ITEMS

Gel Frame and Rotating 8-leaf Barn Doors
Junior Pin (28mm - 1 1/8”)
IP65 Locking Power Cable
