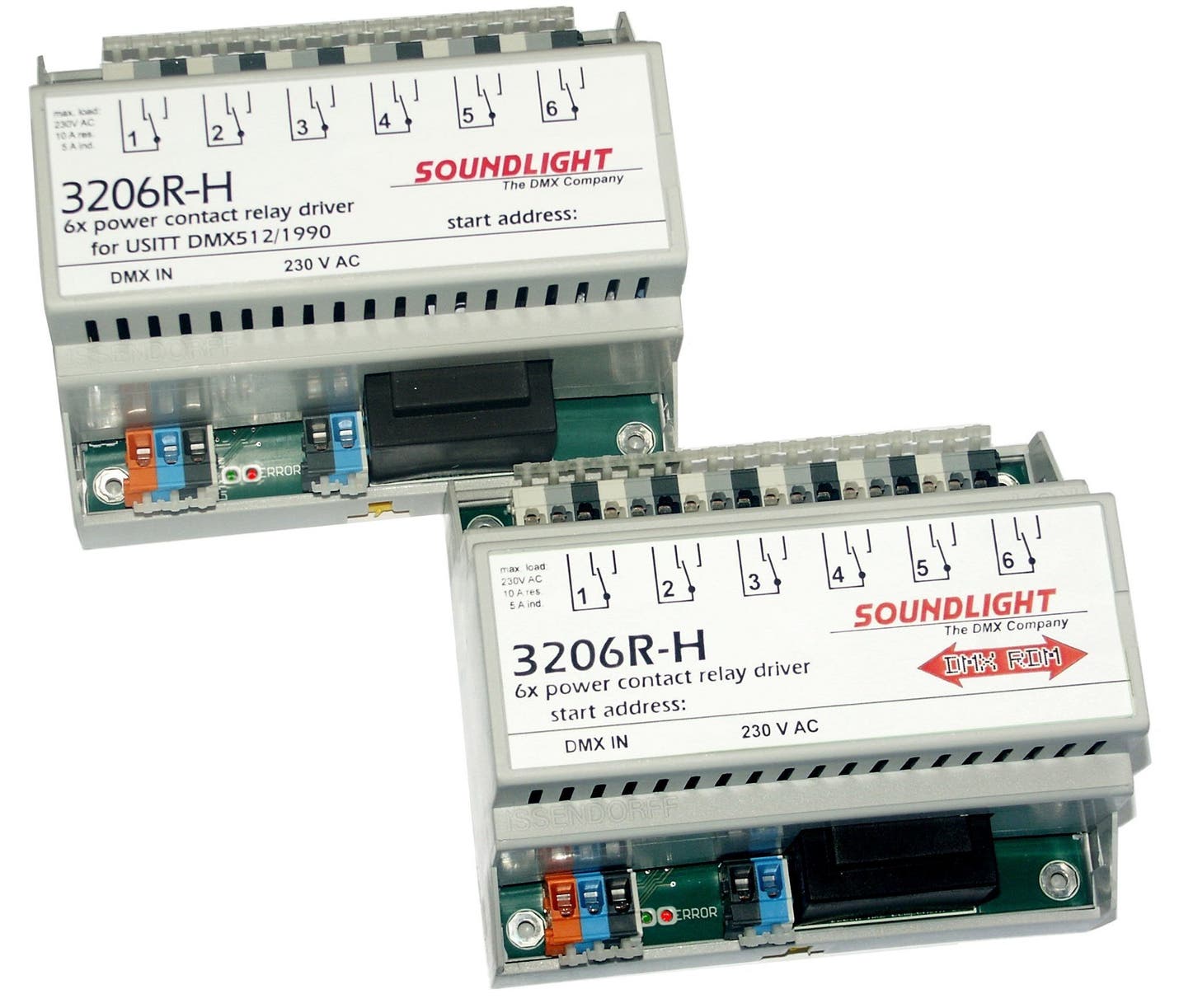

Soundlight DMX-Relä 3206R-H DMX/RDM kompatibel

When there are many loads to be switched on or off, the 3206R-H RDM may be your favourite choice. The compact DMX controlled relay drives 6x 230V / 10 amps resistive load using potential-free contacts. 6 independenty controllable outputs offer one changeover contact (N.O./N.C.) each.

The 3206R-H RDM is best suited for power control applications. Rapid mounting and wiring thanks to screwless cage clamp contacts allowing higher current loads than conventional connectors. Cage clamp connectors provide reliable electrical contact at all times (no screws getting loose), and save wiring costs due to increased speed.

Personality selection is by means of DMX RDM or a by a separate address board. Four personalities allow to select the relay trip points best matching your application:
Hysteresis 1: 50% / 51%
Hysteresis 2: 25% / 75%
Hysteresis 3: 3% / 97%
Hysteresis 4: 0% / 1%
To improve noise immunity, the 3206R-H RDM uses a special oversampling mode evaluating multiple data packets to ensure safe and reliable switching in worst conditions.

DMX RELAY RDM
6 channel
DMX512/1990, DIN 56930-2, DMX512-A, ANSI E1-20 DMX RDM
6 witching outputs
changeover contacts (N.O./N.C.), 230V 10amps resistive load
DMX RDM V1.0 compatible
4 DMX personalities
Power supply: 230V AC, approx. 3,5W
Dimensions: DIN rail, approx.6,5U
