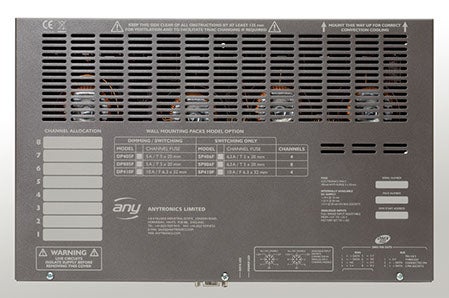

Anytronics DP405F, 4x5A DMX/0-10V DEMO

Anytronics have combined the hard-fired triac dimming technology of their successful range of wall mount packs with the tried and tested digital control of the Contractor series to produce a new range of robust and flexible dimming and switching wall mount packs. The F series of wall mount dimming packs feature fuse protection and selection of either dimming or switching action on every channel. The dimmer circuitry is optimised to minimise RF interference and to work with all types of leading edge dimmable load circuits including inductive, capacitive and electronic loads with no minimum loading constraints.

• Robust range of economical wall mounting dimming/switching packs.
•  Rugged steel enclosure.
•  8 x 5 A, 4 x 5 A and 4 x 10 A dimming / switching models.
•  8 x 6 A, 4 x 6 A and 4 x 10 A dedicated switching models, ideal for ballast type loads.
• HBC fused circuit protection.
• Choice of dimming or switching action channel by channel .
• Monitor LED on each channel.
• No minimum load constraints.
• Combined analogue and digital inputs.
• Choice of DMX or RS232 digital inputs.
• RJ45 and screw terminal DMX in/through connections standard. 3 and 5 pin XLR connectors to special order.
• Auxiliary +5 V 50 mA supply on RJ45 for external controllers.
• Optional Cannon D 9 way RS232 connector.
• Data LED indication.
• Power LED indication.
• Analogue inputs on every model via screw terminals and DIN sockets.
• Maximum level control on each analogue input allows for +5 V to +25 V control range.
• Auxiliary +22 V 50 mA supply on DIN socket to power remote desks etc.
• Reference +10 V 10 mA supply on DIN sockets.
• Manual channel test facility.
• Additive preheat control.
• Comprehensive enable/disable input arrangements.
• Electronic ballast setting for electronic loads.
• Compatible with Anylight architectural control systems.
• Compatible with Anyscene and IR Anyscene DMX scene setting products.
• Compatible with AMD range of analogue and DMX architectural slider controls.
