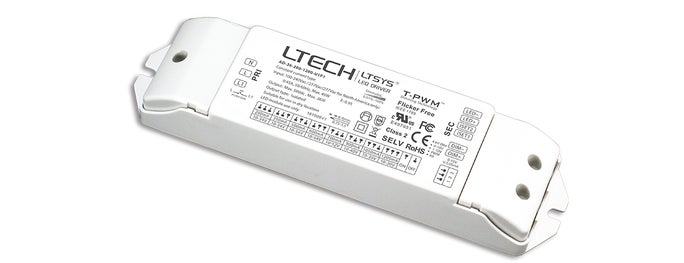

0-10V Driver CC Dim, 350-700mA 12W 1-10V / 0-10V / 10V PWM / RX / PUSH DIM

• Rubycon capacitor
• Dimming Interface:    0-10V (1-10V/10VPWM/RX) 0-10V Interface consumption: <0.05mA
• Input Voltage:    100-240Vac
• Power Factor:     PF>0.97/115Vac , PF>0.85/230Vac, at full load
• Efficiency:    81%
• Fluctuation Level:    No video flicker / High frequency exemption assessment level.
• Output Voltage:    10-24Vdc
• Output Current:    350-700mA
• Output Power:    3.5W~12W
• Dimming Range:    0~100%, 0.01% dimming depth.
• Certification:    CCC,TUV,RCM,BIS,CB,CE,ROHS,UKCA
• Warranty:    5 years

Sec. output:
Pout(Max.)    Vout(DC)    Constant(DC)
3.5-8.4W    10-24V    350mA
4-9.6W    10-24V    400mA
4.5-10.8W    10-24V    450mA
5-12W    10-24V    500mA
5.5-12.1W    10-22V    550mA
6-12W    10-20V    600mA
6.5-12W    10-18.5V    650mA
7-12W    10-17V    700mA
