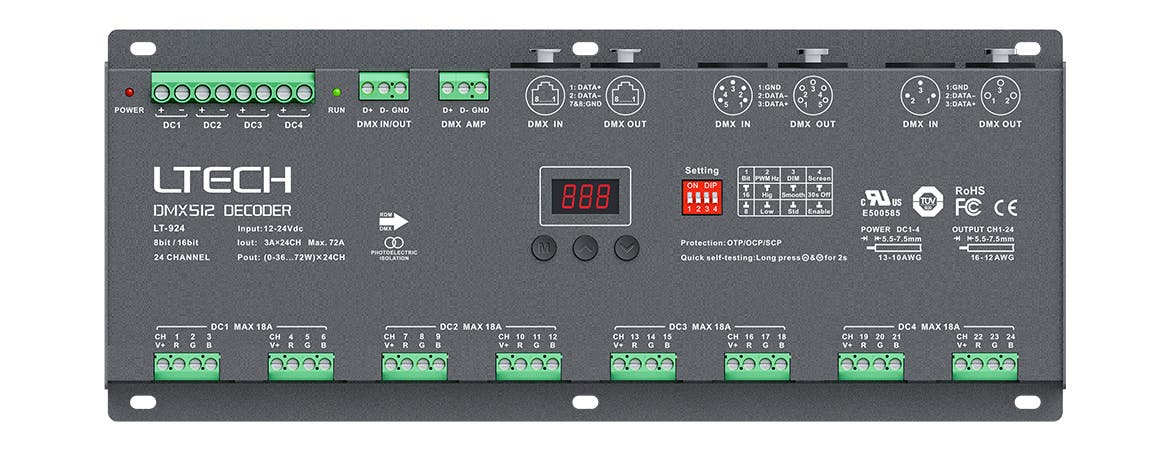

24CH DMX CV LED Dimmer 12-24V DC 24CH x 3A, max 1728W, RDM, 16bit/8bit dim

Designed for Hi-power multiple channels application, 24 channels output, and up to 1728W output power.

- Easy operation with digital display and the touch buttons.

- 3-pin XLR, RJ45 DMX and green terminal interface with photoelectric isolation,improve signal transmission efficiency and anti-interference ability, the green terminal also has signal amplifier function.

- With firmware upgrade function.

- With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.

- With photoelectric isolation function.

- With short circuit protection and over current protection, as well as warning function when fault.

- With power-on state management and fast self-testing function.

- 16bit (65536 levels) / 8bit (256 levels)grey level available.

- High/low PWM frequency available.

Output Voltage 24 V
Rated Current 72 A
Power Rating 1728 W
No. of Output 24
Operation Mode Constant Voltage
Dimming Control DMX, RDM Signal
Output Channel 3A - 24 Channel
Controller Type RGB Dimming
Output Type DMX Signal, PWM, RDM Signal
Series Ltech DMX Series
Waterproof Non-waterproof
Standards Met CE, FCC, ROHS
Input 12V~24V
Operating Temperature -30°C~65°C
Dimensions Length:300mm | Width:122mm | Height:39mm |
