The versatile LED pixel-tape driver to directly control a wide range of digital LEDs.

Developed and made in Germany.

The MADRIX NEBULA directly connects to your LED pixels. This advanced SPI decoder receives control data over Ethernet network or USB and is built to provide excellent image quality.

SPI Converter & Direct Connection
Directly connect to a wide range of supported LEDs via two 4-pin screw terminals. A signal frequency of up to 24 MHz is available. Supply power over USB or 5 V to 24 V over a 2-pin screw terminal.

Quality Output Of 8 Universes
Each device drives up to 1,360 RGB pixels while ensuring responsive delivery of high-quality signals to each individual LED. You can choose the output protocol separately for each of the two ports.

Art-Net / Streaming ACN / USB
Network data is directly converted to SPI without the need for an additional interface. Reliably distribute data from any compatible software or hardware controller. In addition, simply connect to MADRIX 5 over USB.

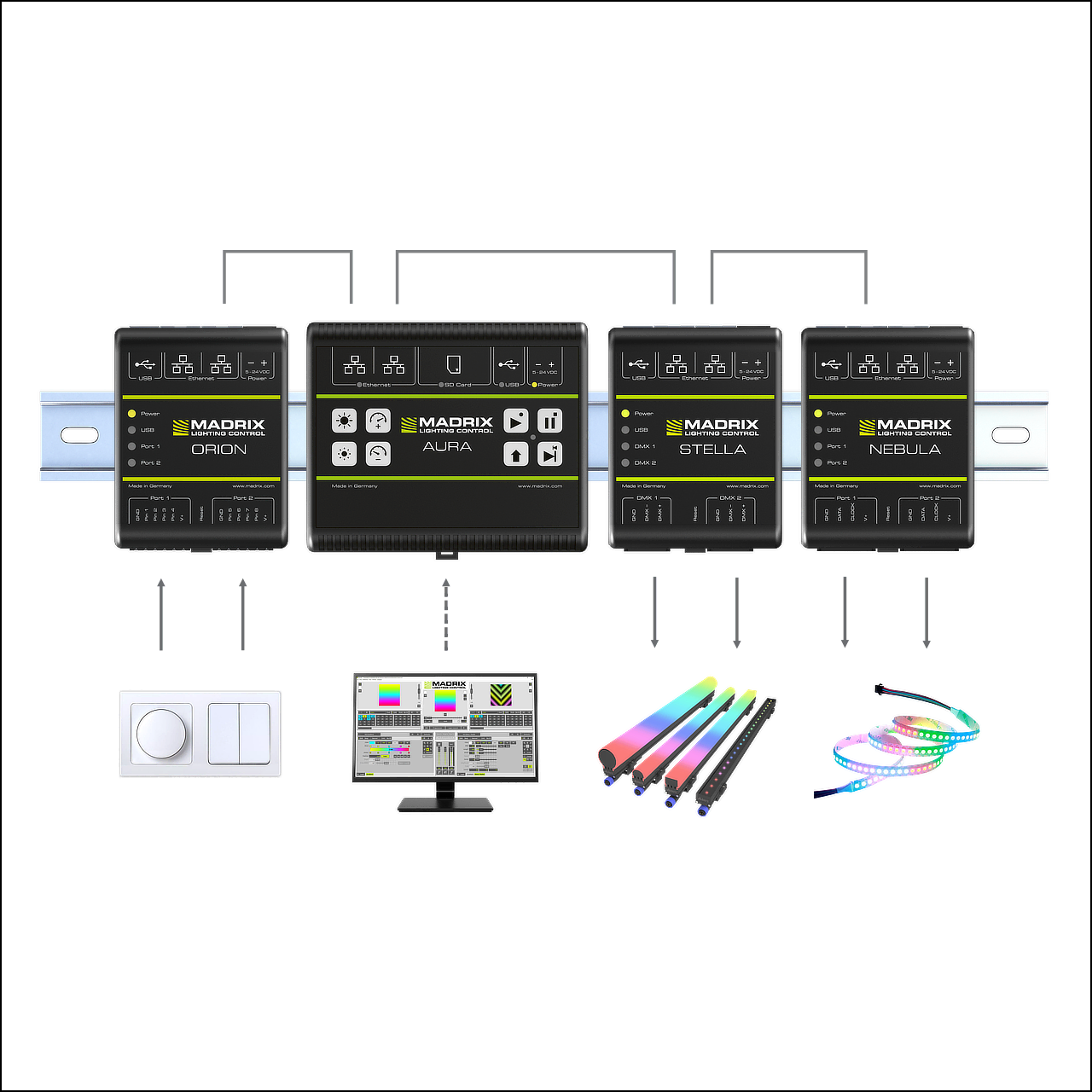

Sync Mode & Daisy-Chain Support
MADRIX 5 and MADRIX hardware allow you to fully synchronize Art-Net data for all ports and across devices to get an optimal image on the LEDs without visual interruptions. 2 Ethernet ports allow linearly daisy-chaining several devices together.

Designed For DIN Rails Or Walls
Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe. 2 extra brackets are provided for optional wall mounting. 9 indicators quickly show the device status with the option to turn them off.

Invaluable Features
The device is ready within seconds after startup. HTP merging is automatically available for two Ethernet sources. Its firmware is upgradable. Access and change specific device settings using the built-in web configuration page.

Supported LEDs
APA101 / APA102 / APA104 / APA106 / GS8206 / GS8207 / GS8208 / GW6201 / GW6205 / LPD1882S / LPD6803 / LPD8806 / MBI6024 / MBI6120 / MY9291 / P9883 / SJ1221 / SK6112 / SK6805 / SK6812 / SK6813 / SK6822 / SK9816 / SK9822 / SK9826 / SM16703 / SM16716 / TLC5973 / TLS3001 / TLS3008 / TM1804 / TM1809 / TM1812 / TM1814 / TM1829 / UCS1903 / UCS2903 / UCS2904 / UCS512B3 / UCS8904 / UCS9812S / WS2801 / WS2803 / WS2811 / WS2811S / WS2812 / WS2812B / WS2813 / WS2815 / WS2818 / WS2822S / WS2822S Addressing

As of July 2021. Additional LED types will be supported with future firmware updates.

Average Hardware Failure And Return Rate
(Last Update: February 2021)
0.134 %

Connectivity

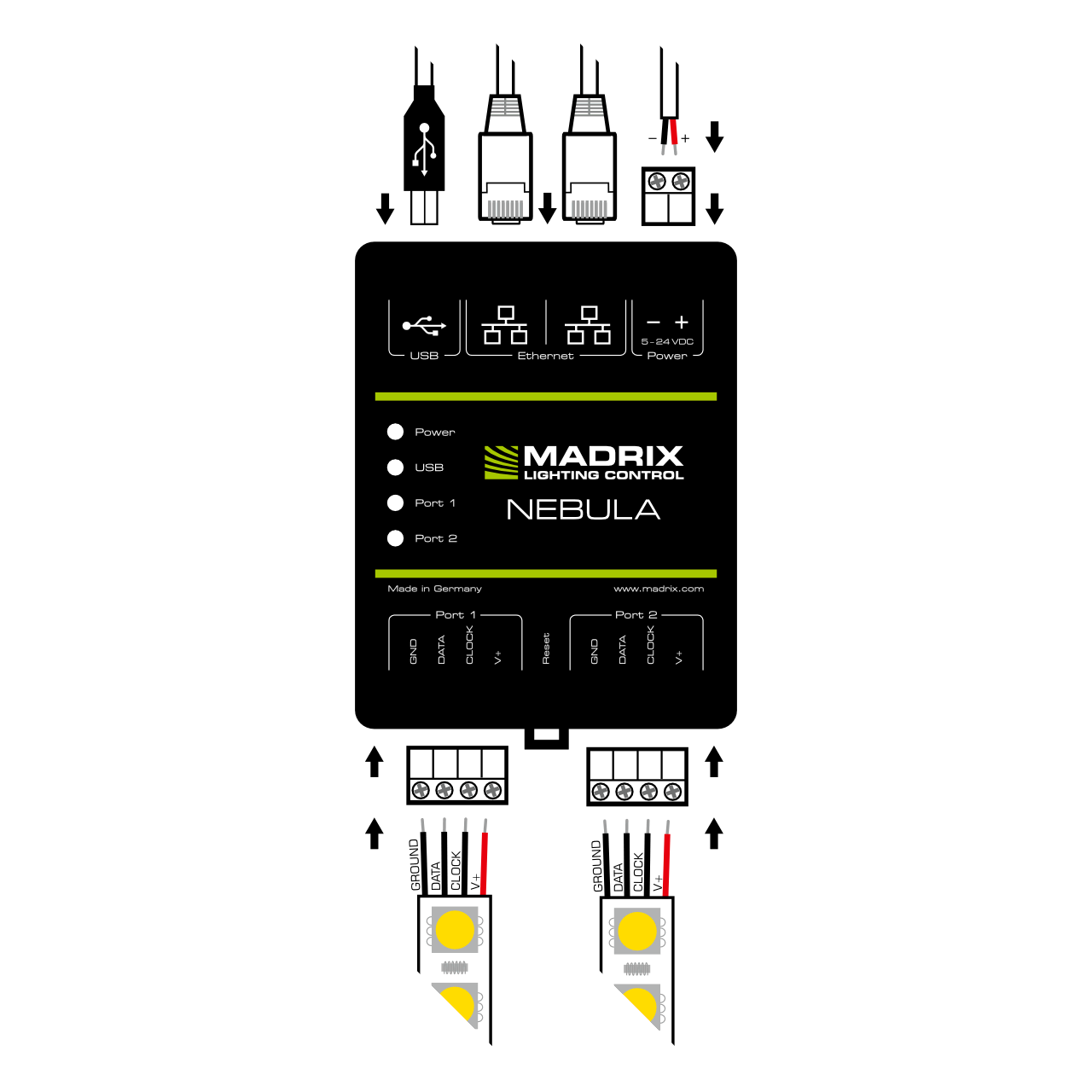

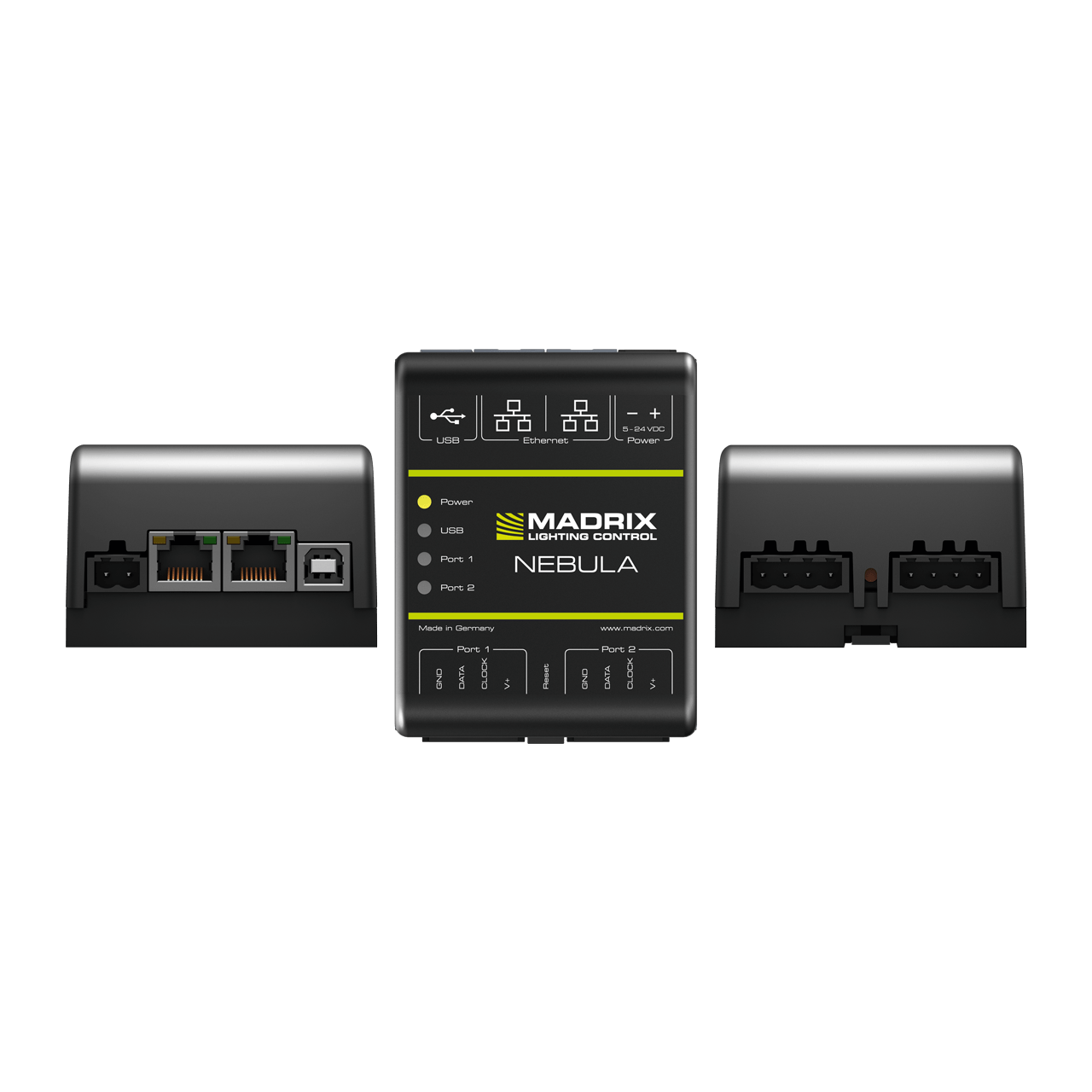

2x OUT (via pluggable screw terminals)
2x RJ45 Ethernet ports
1x USB port
1x Power (via pluggable screw terminal)

Package Contents
1x MADRIX NEBULA
1x Set of screw terminals (2x 4-pin and 1x 2-pin)
1x USB 2.0 cable (certified)
2x Wall-mount brackets
1x Technical manual / quick start guide

Technical Specifications

Supply Of Power
DC 5 V - 24 V; over
A) 2-pin, pluggable screw terminal (12 A max.), B) 5 V USB, C) Port 1 or 2 sourced from LEDs;
6 A max. load per port when supplying through to LEDs

Power Consumption
< 1.5 W (300 mA) during normal operation (500 mA max. fused)

Network Protocols
Art-Net (I, II, 3, 4, incl. ArtSync), Streaming ACN (sACN / ANSI E1.31)

Data Output
8x 512 channels SPI TTL (Maximum output per port: 680 RGB LEDs / 512 RGBW LEDs / 2048 1-channel LEDs)

Supported LEDs
APA101 / APA102 / APA104 / APA106 / GS8206 / GS8207 / GS8208 / GW6201 / GW6205 / LPD1882S / LPD6803 / LPD8806 / MBI6024 / MBI6120 / MY9291 / P9883 / SJ1221 / SK6112 / SK6805 / SK6812 / SK6813 / SK6822 / SK9816 / SK9822 / SK9826 / SM16703 / SM16716 / TLC5973 / TLS3001 / TLS3008 / TM1804 / TM1809 / TM1812 / TM1814 / TM1829 / UCS1903 / UCS2903 / UCS2904 / UCS512B3 / UCS8904 / UCS9812S / WS2801 / WS2803 / WS2811 / WS2811S / WS2812 / WS2812B / WS2813 / WS2815 / WS2818 / WS2822S / WS2822S Addressing
As of July 2021. Additional LED types will be supported with future firmware updates.

Ports
2x ports (Via 2x 4-pin, pluggable screw terminals)

Ethernet
2x RJ45, Auto MDI-X, daisy-chain support, 10/100 MBit/s (Compatible with 1 GBit/s)

Ethernet Switch
Lookup Table (ALU) for 1024 unicast MAC addresses

USB
1x port, USB 2.0, type-B female socket

Handling
5 status LEDs (+ 4 network status LEDs)

Case
Non-conductive, V-0 flammability rating (UL94 test method), designed for 35 mm DIN-rails or wall mounting

Dimensions

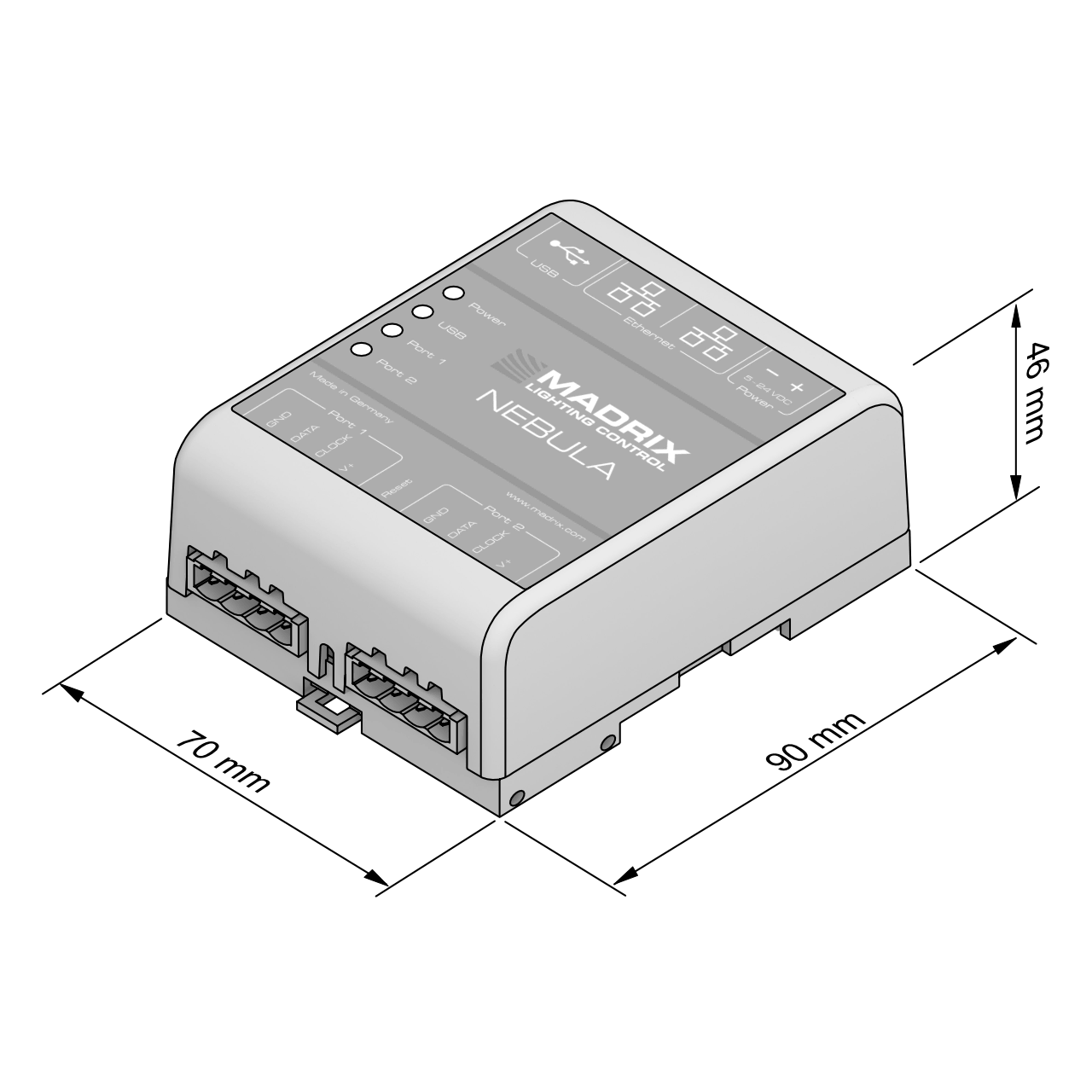

90 mm x 70 mm x 46 mm (Length x Width x Height)

Weight
110 g | 132 g incl. screw terminals and wall mounts

Temperature Range
-10 °C to 70 °C (Operating) | -20 °C to 85 °C (Storage)

Relative Humidity
5 % to 80 %, non-condensing (Operating / Storage)

IP Rating
IP20

Certificates
CE, EAC, FCC, RoHS

Warranty
5 years of limited manufacturer's warranty
