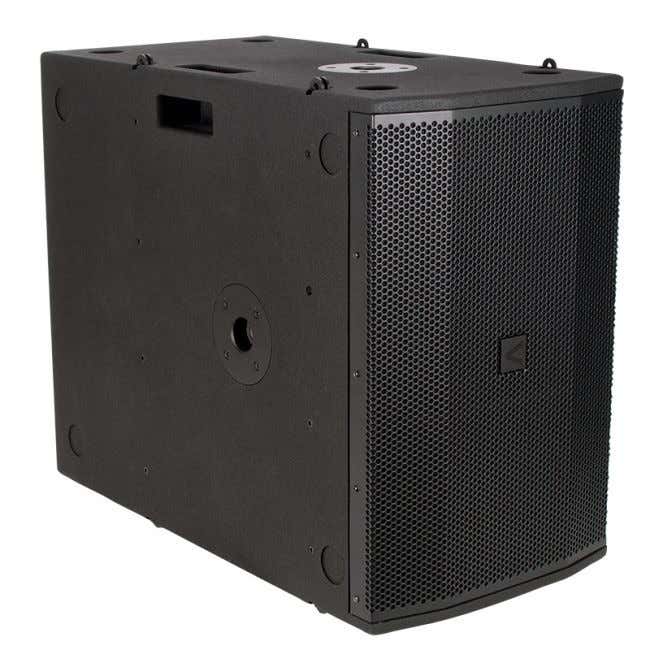

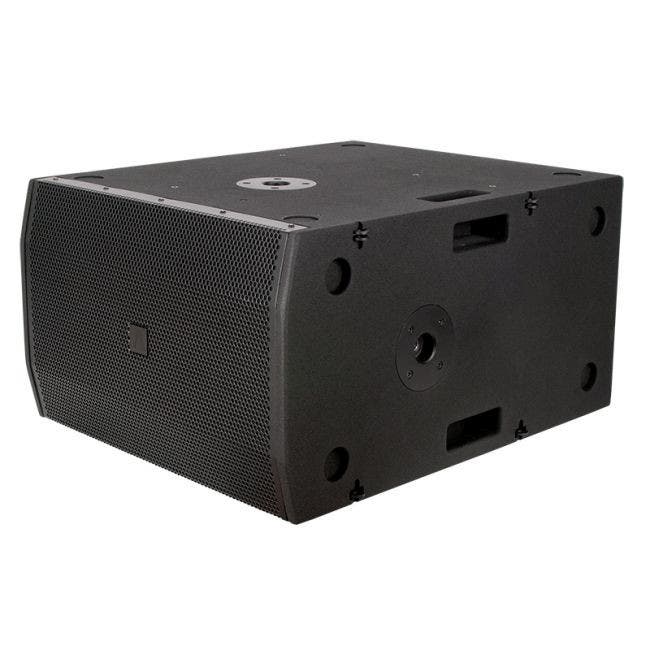

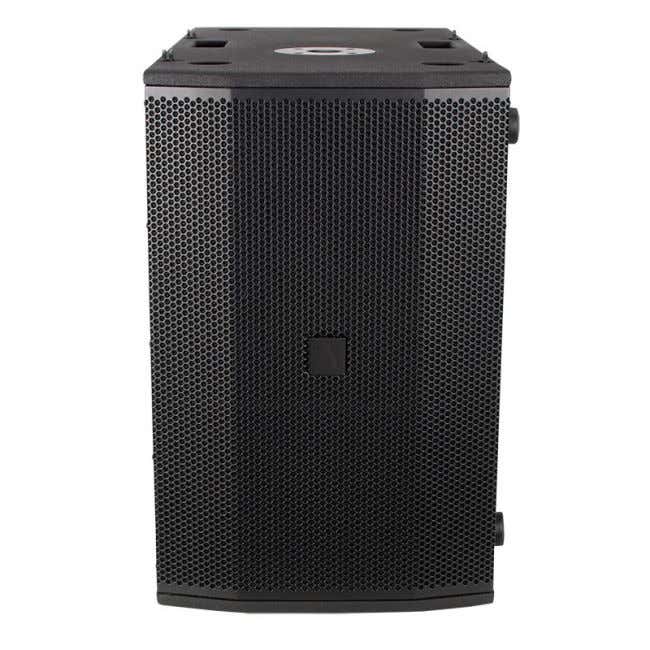

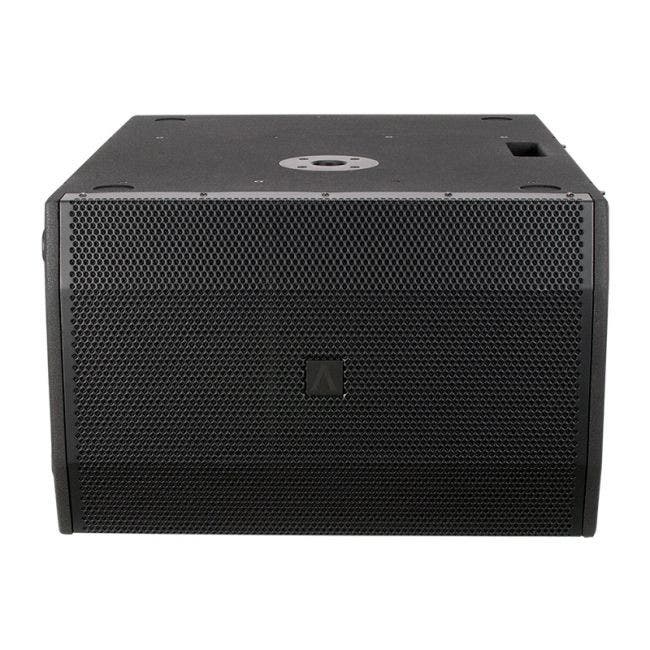

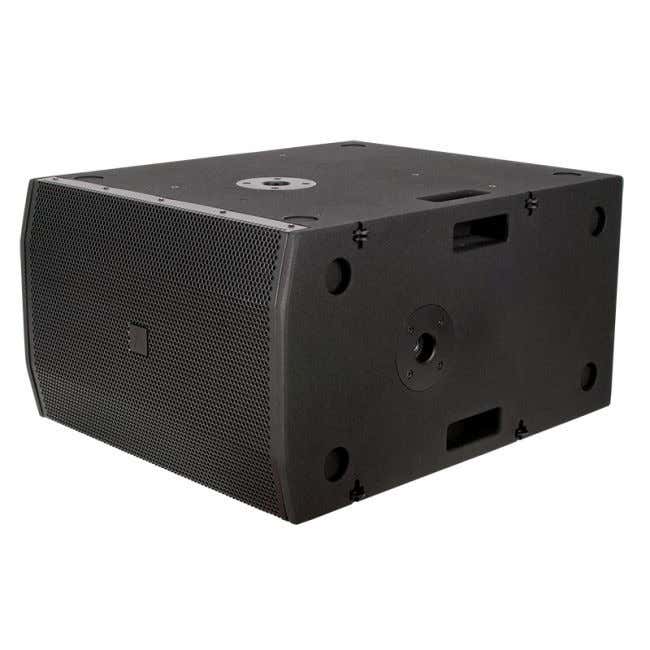

Avante Imperio Sub 210

Dual 10-inch woofers with 700 watts RMS class D power amplifier. Part of the Imperio Mini Line Array System

Avante Audio's Imperio mini line array system is a great solution for small to mid-sized venues and can be expanded by adding additional Imperio units as your needs require. The Imperio system consist of the Imperio mid/high unit which features dual 4.75" woofers and 6 inverted dome tweeters (IDVAT - Inverted Dome Vertical Array Technology) HF drivers, a 240 watt RMS class D power amplifier, and 24 bit DSP, the Imperio sub which has a 10" woofer along with a 350 watt RMS class D power amplifier and for when more bass is required, we recommend the Imperio SUB210 which features dual 10" woofers with 700 watts RMS (2 x 350 watt RMS, 2100 watt peak) class D power amplifier



Imperio accessories include: Imperio Flybar Lg, Imperio Flybar Small, Imperio Pole w/mounting bracket, LinkPin Kit4

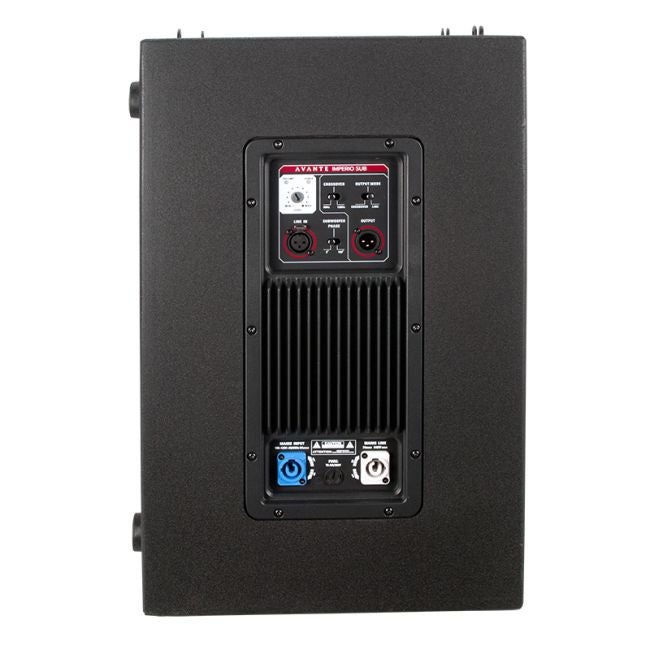

AMPLIFIER

• Power (RMS): 700W, 1400W Peak

• 100-120V / 220-240V ~ 50/60Hz (country specific)

• LED Power / Signal / Clip Indicator

• Input: 1x 3pin XLR Power Twist (NAC3FCA)

• Output: 1x 3pin XLR Power Twist (NAC3FCB)

• Phase Switchable (0 / 180)

• Internal Selectable X-Over 90Hz or 120Hz)

• Volume Control Dial



DRIVER

• Driver: Two 10" woofers with 2.5" Voice Coils

• selectable crossover point: optional 90Hz/120Hz

• Max SPL: 124dB

• Flyable with optional flybar

• Inputs: 1 XLR

• Outputs: 1 XLR

• 6th Order Bandpass Design

• (2) M20 Screw Pole Mount (Can be used vertically or horizontally)

• Grill: 1.2mm steel

• Cabinet: plywood
