DTW BAR 1000™ - DEMO

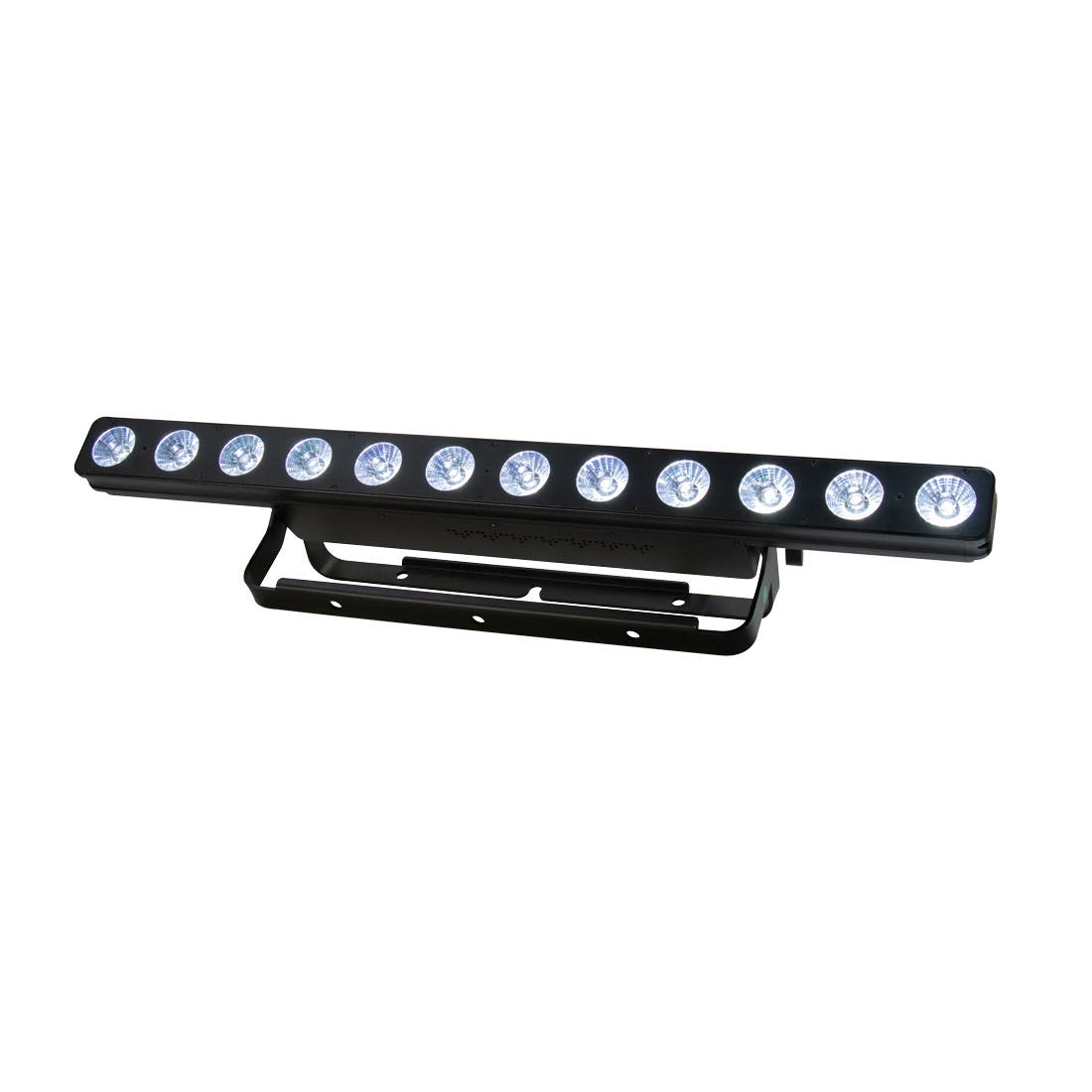

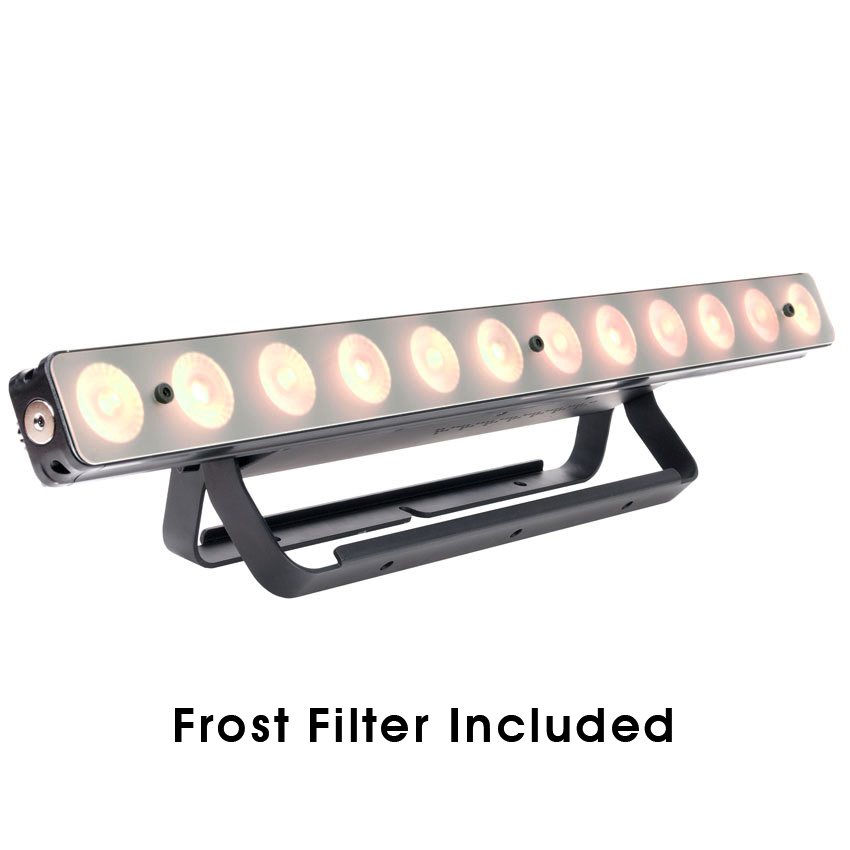

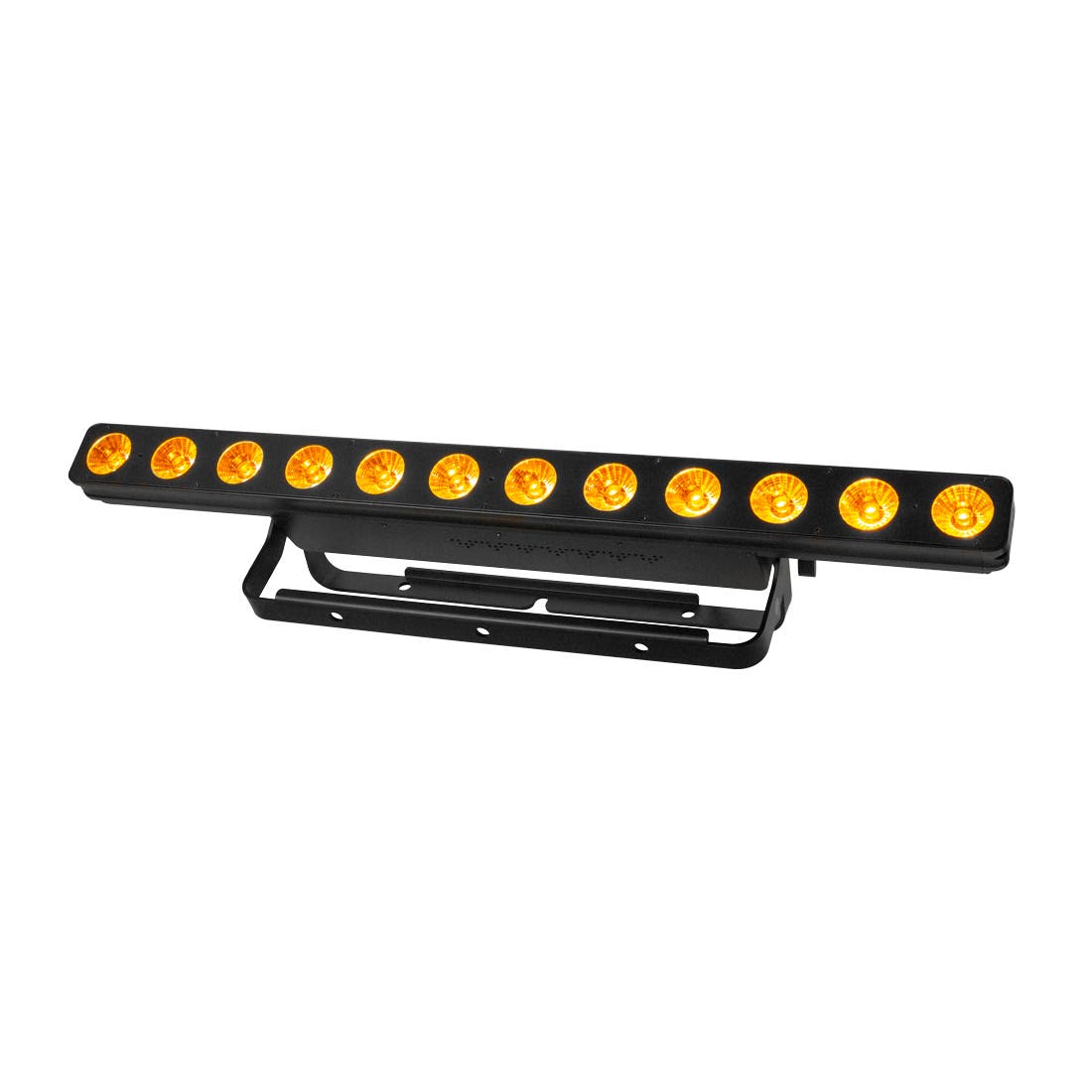

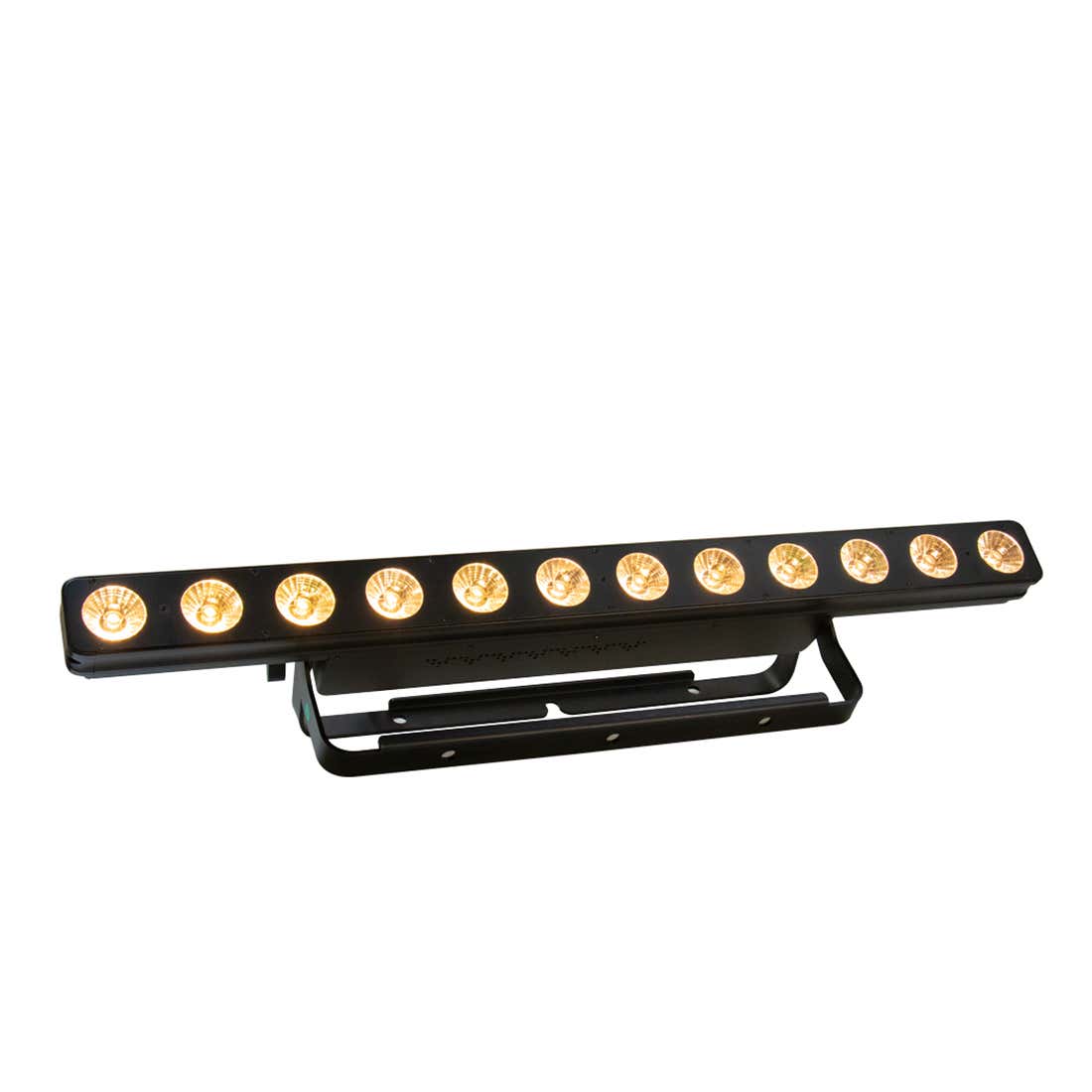

The DTW BAR 1000™ features (12) 10W multi-chip Cool White / Warm White / Amber LEDs, 20° beam & 40° field angles, selectable dim-to-warm control, cool white, warm white, and amber color mixing, full pixel and 1,600K - 6,500K color temperature control, variable 16-bit dimming curve modes, selectable color and program macros, strobe and chase effects, DMX, RDM, KlingNet, and Art-Net protocol support, DMX, RJ45, and Locking Power in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, included frost filter and glare shield, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).

FEATURES
(12) 10W Multi-Chip Cool White/Warm White/Amber LEDs
20° Beam, 40° Field Angles
Selectable Dim-to-Warm Control
Cool White, Warm White, Amber Color Mixing
Full Pixel + Color Temperature Control (1,600K - 6,500K)
Variable 16-bit Dimming Curve Modes
Selectable Color and Program Macros
DMX, RDM, KlingNet, and Art-Net Support
Rugged Die-Cast Aluminium Exterior
Flicker Free Operation for TV and FILM
SOURCE
(12) 10W Multi-Chip CW / WW / Amber LEDs
100,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA
2,900+ Total Output Lumens
17,878 LUX 1,661 FC @ 1m (3.3’) (Full ON)
9,467 LUX 879 FC @ 1m (3.3’) (Warm White)
9,177 LUX 853 FC @ 1m (3.3’) (Cool White)
EFFECTS
Selectable Dim-to-Warm Control
Cool White, Warm White, Amber Color Mixing
Full Pixel + Color Temperature Control (1,600K - 6,500K)
Variable 16-bit Dimming Curve Modes
Selectable Color and Program Macros
COLOR
Cool White, Warm White and Amber Multi-Chip LEDs
Variable Color Temperature (1,600K – 6,500K)

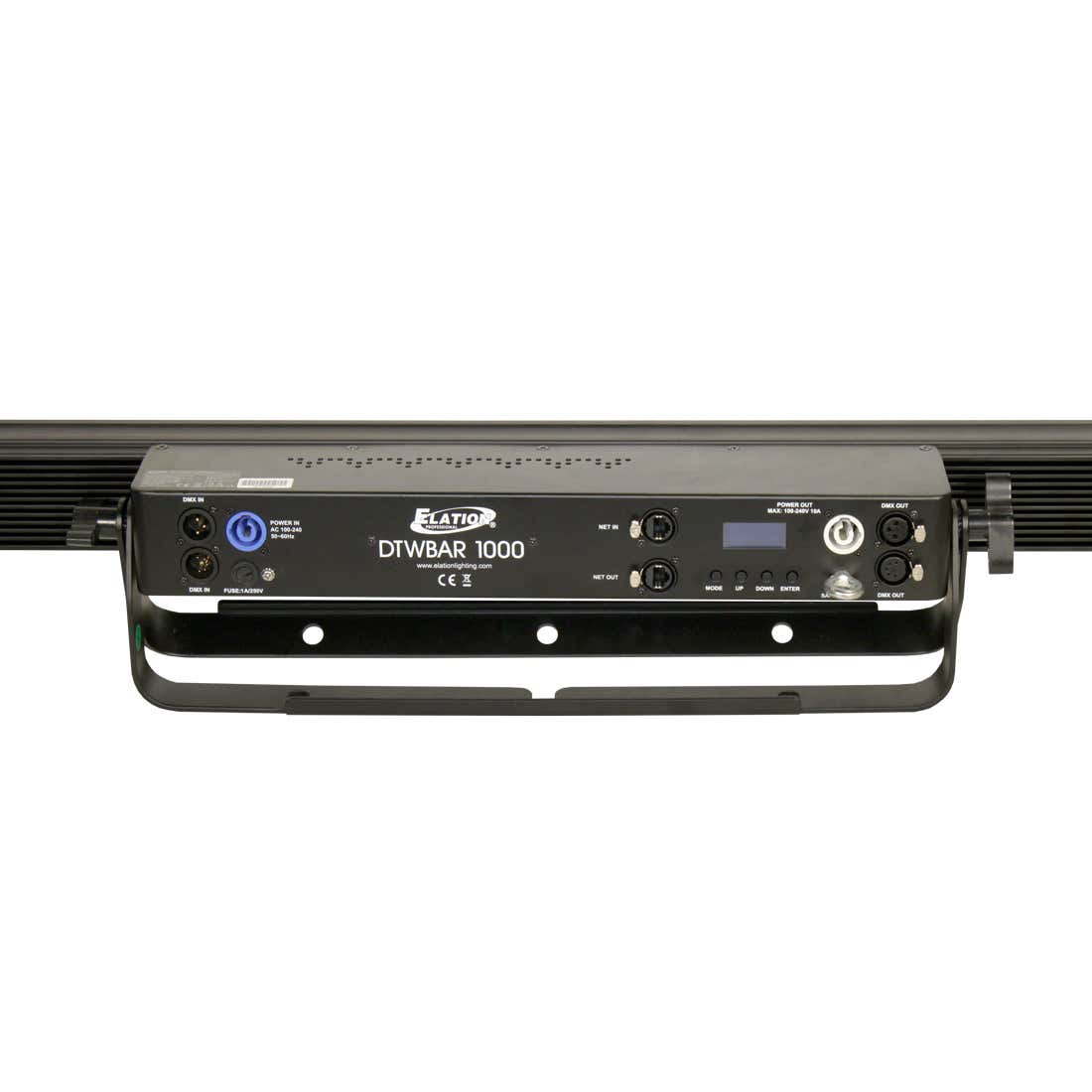

CONTROL / CONNECTIONS
(14) DMX Channel Modes (72 total channels)
4 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
ArtNet + KlingNET Protocol Support
(2) ethernet RJ45 In/Out
3pin and 5pin DMX In/Out
Locking Power Cable In/Out

SIZE / WEIGHT
Length: 900mm (35.4”)
Width: 206.4mm (8.1”) *with included glare shield
Vertical Height: 155mm (6.1”)
Weight: 6.4 kg (14.0 lbs.)

ELECTRICAL / THERMAL
AC 110-240V  50/60Hz
120W Max Power Consumption
-15°C to 45°C (5°F to 113°F)
